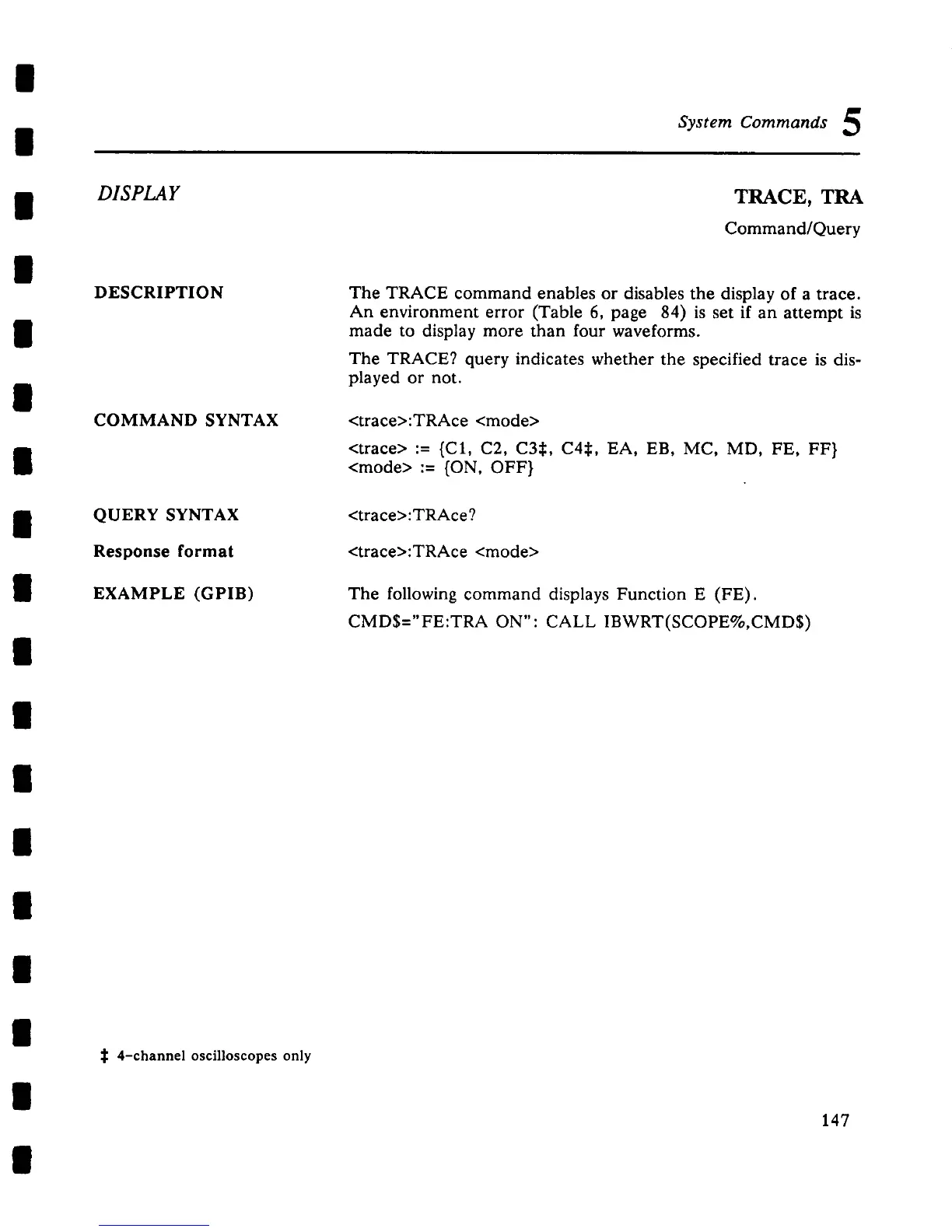

System Commands 5
DISPLAY
DESCRIPTION
COMMAND SYNTAX
QUERY SYNTAX
Response format
EXAMPLE (GPIB)
TRACE, TRA
Command/Query
The TRACE command enables or disables the display of a trace.
An environment error (Table 6, page 84) is set if an attempt
made to display more than four waveforms.
The TRACE? query indicates whether the specified trace is dis-
played or not.
<trace>:TRAce <mode>
<trace> := (C1, C2, C3~:, C4~:, EA, EB, MC, MD, FE, FF}
<mode> := {ON, OFF}
<trace>:TRAce?
<trace>:TRAce <mode>
The following command displays Function E (FE).
CMD$="FE:TRA ON": CALL IBWRT(SCOPE%,CMD$)
4-channel oscilloscopes only
147
