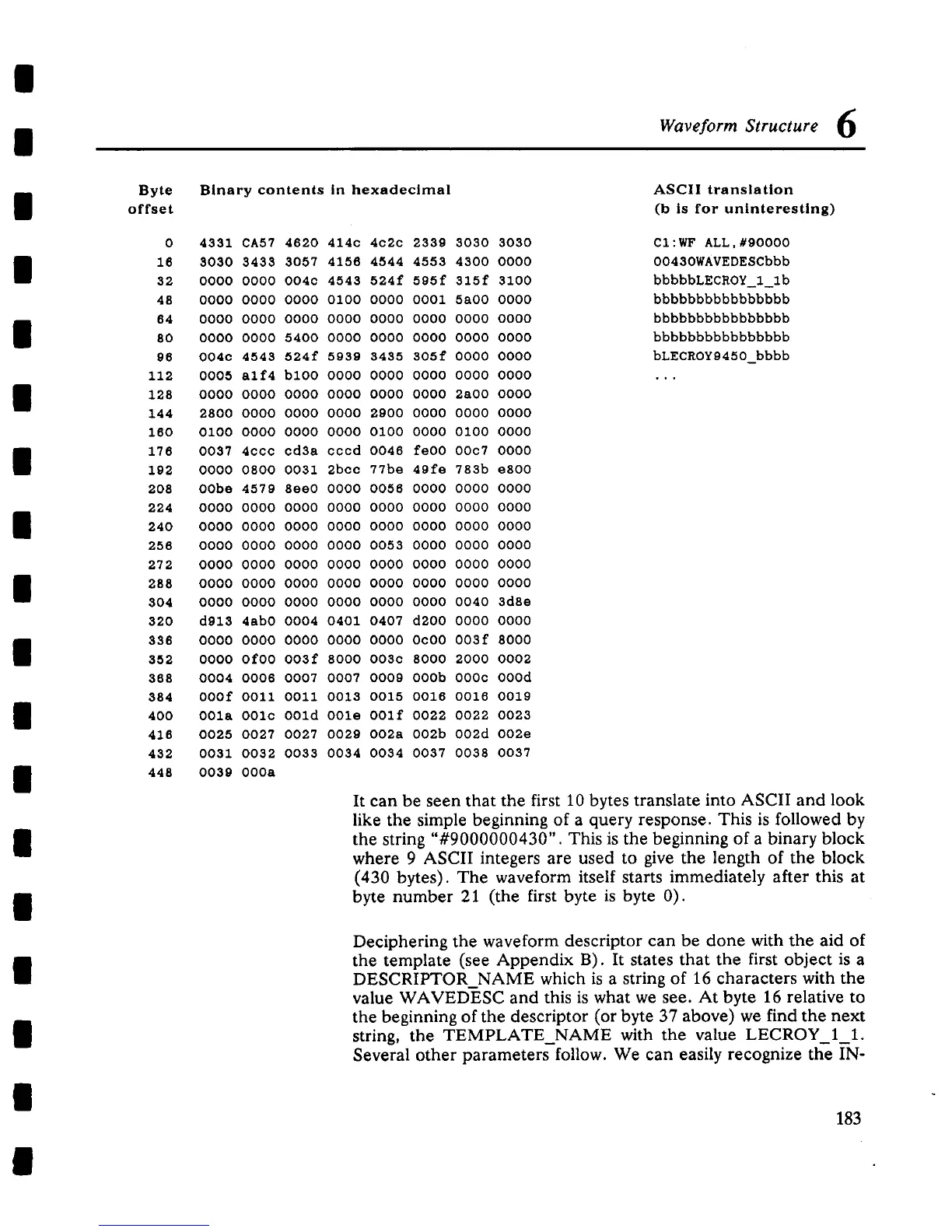

Waveform Structure 6
Byte
offset
o
16
32
48
64
8o
96
112
128
144
16o
176
192
208
224
240
256
272
288
304
320
336
352
368
384
400
416
432
448
Binary contents in hexadecimal
4331 CA57 4620 414c 4c2c 2339 3030 3030
3030 3433 3057 4158 4544 4553 4300 0000
0000 0000 004c 4543 524f 595f 315f 3100
0000 0000 0000 0100 0000 0001 5aO0 0000
0000 0000 0000 0000 0000 0000 0000 O000
0000 0000 5400 0000 0000 0000 0000 0000
004c 4543 524f 5939 3435 305f 0000 0000
0005 alf4 blO0 0000 0000 0000 0000 0000
0000 0000 0000 0000 0000 0000 2a00 0000
2800 0000 0000 0000 2900 0000 0000 0000
0100 0000 0000 0000 0100 0000 0100 0000
0037 4ccc cd3a cccd 0046 fe00 00c7 0000
0000 0800 0031 2bcc 77be 49fe 783b eS00
O0be 4579 See0 0000 0056 0000 0000 0000
0000 0000 0000 0000 0000 0000 0000 0000
0000 0000 0000 0000 0000 0000 0000 0000
0000 0000 0000 0000 0053 0000 0000 0000
0000 0000 0000 0000 0000 0000 0000 0000
0000 0000 0000 0000 0000 0000 0000 0000
0000 0000 0000 0000 0000 0000 0040 3dse
dg13 4abO 0004 0401 0407 d200 0000 0000
0000 0000 0000 0000 0000 OcO0 003f 8000
0000 OfO0 003f 8000 003c 8000 2000 0002
0004 0006 0007 0007 0009 O00b 000c 000d
000f 0011 0011 0013 0015 0016 0016 0019
O01a 0010 001d O01e O01f 0022 0022 0023
0025 0027 0027 0029 O02a 002b 002d 002e
0031 0032 0033 0034 0034 0037 0038 0037
0039 000a
ASCII translation
(b is for uninteresting)
CI:WF ALL,#90000
00430WAVEDESCbbb
bbbbbLECROY_l_Ib
bbbbbbbbbbbbbbbb
bbbbbbbbbbbbbbbb
bbbbbbbbbbbbbbbb
bLECROY9450_bbbb
It can be seen that the first 10 bytes translate into ASCII and look
like the simple beginning of a query response. This is followed by
the string "#9000000430". This is the beginning of a binary block
where 9 ASCII integers are used to give the length of the block
(430 bytes). The waveform itself starts immediately after this
byte number 21 (the first byte is byte 0).
Deciphering the waveform descriptor can be done with the aid of
the template (see Appendix B). It states that the first object is
DESCRIPTOR NAME which is a string of 16 characters with the
value WAVED-ESC and this is what we see. At byte 16 relative to
the beginning of the descriptor (or byte 37 above) we find the next
string, the TEMPLATE_NAME with the value LECROY_I_I.
Several other parameters follow. We can easily recognize the IN-
183
