5
System Commands
|
|
Bit
Bit Value Description
15..14 0 Reserved
13 8192
1 time-base hardware
failure Is detected
12 4096
1
a trigger hardware
failure Is detected
11 2048 1 a Channel 45 hardware
failure Is detected.
10 1024 1
a Channel 3¢ hardware
failure Is detected.
9 512 1 a Channel 2 hardware
failure Is detected
8
256 1 a Channel 1 hardware
failure Is detected
7.,4
0 Reserved
3
8 1 a Channel 44: overload
condition Is detected
2 4
1 a Channel 34: overload
condition is detected1
1 2 1 a Channel 2 overload
condition is detected
0
1 1 a Channel 1 overload
condition is detected

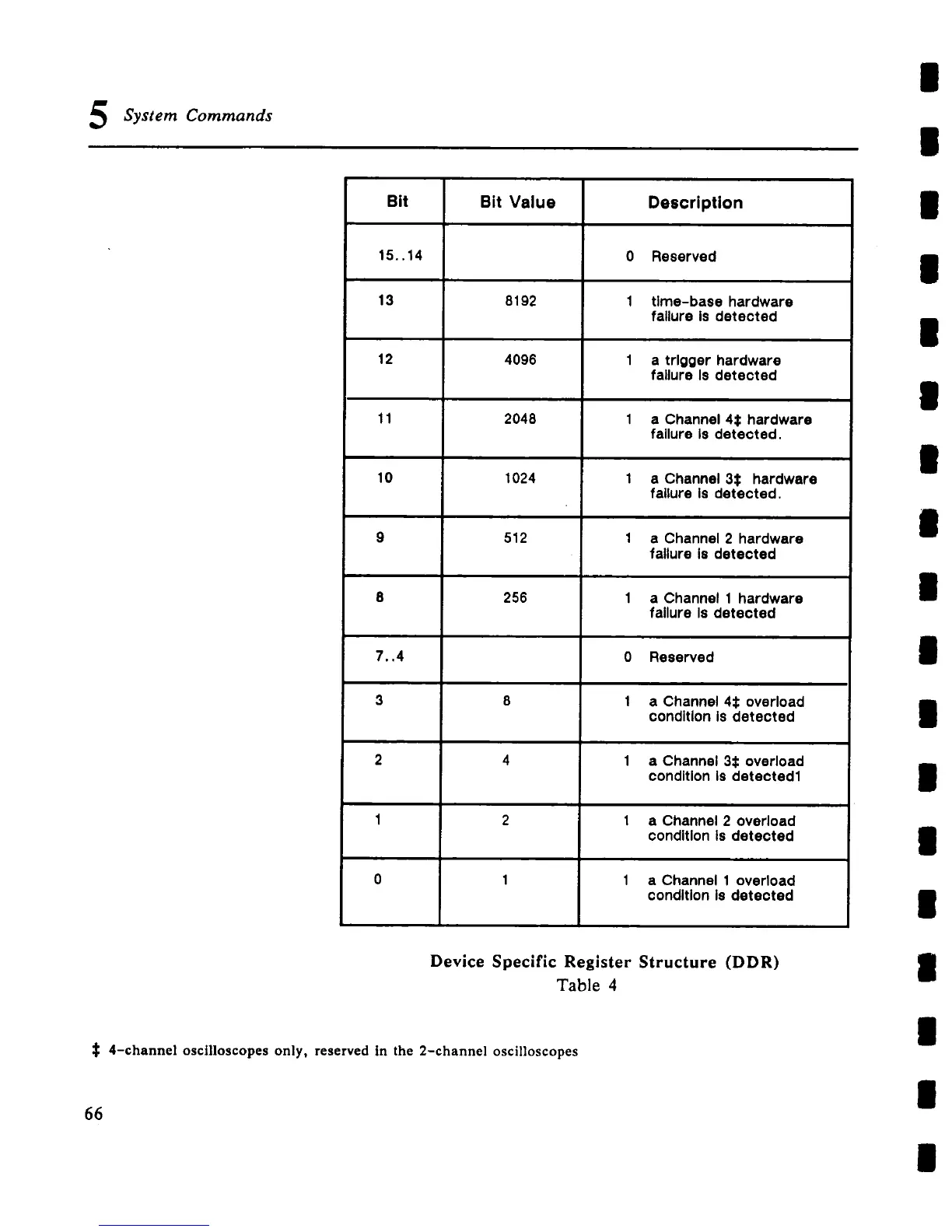

Device Specific Register Structure (DDR)
Table 4
~: 4-channel oscilloscopes only, reserved in the 2-channel oscilloscopes
66
|
