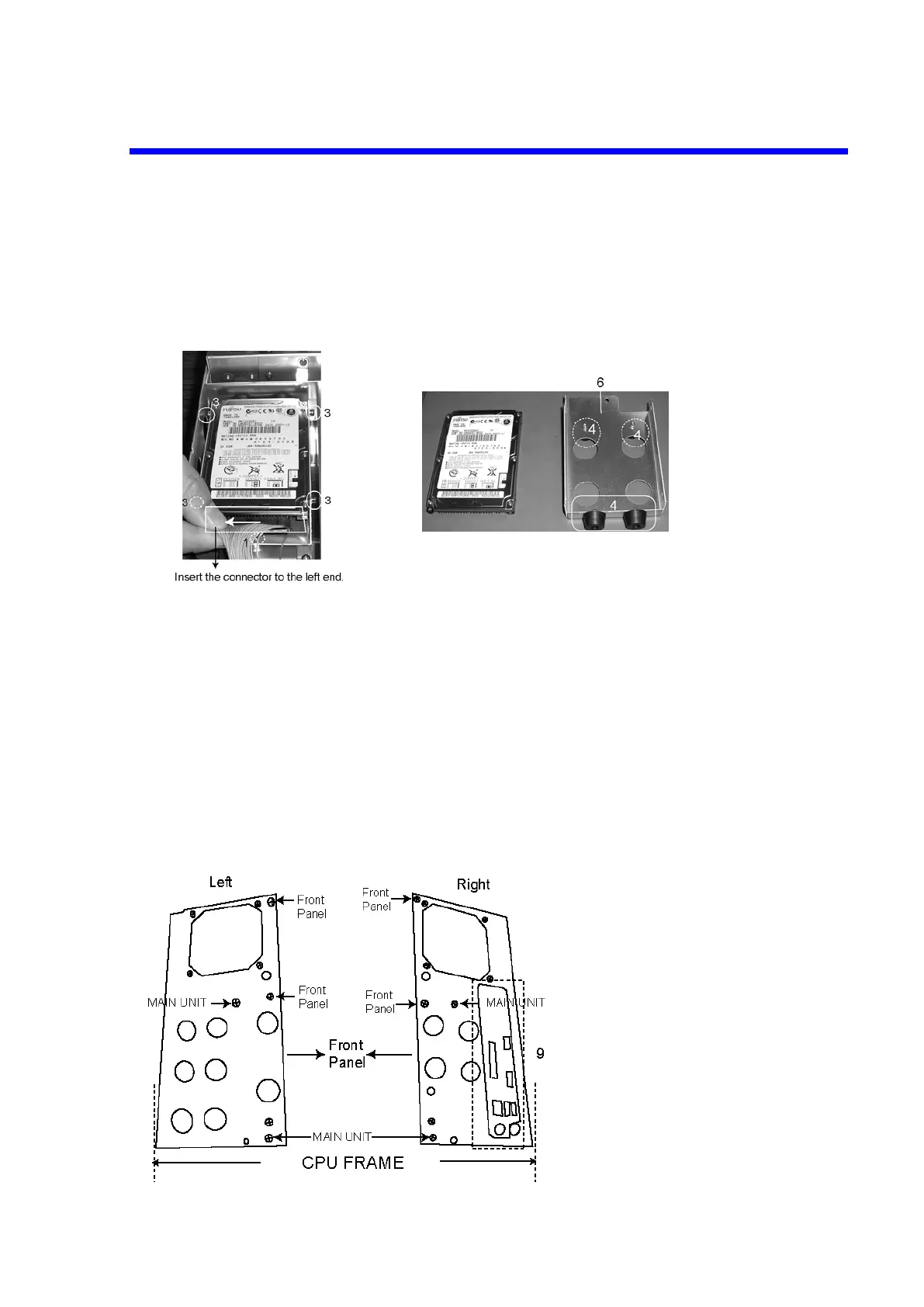

F. Removal & Parts of the HDD
• Disconnect the 44pin FCC cable from the HDD. F1
• Remove the one KB (+) 3x6S screw (Item Fig No.3) on the main chassis.
[F1]
G. Removal & Parts of the PCI BOARD
• Loose the four KB3X6 screws (Item Fig No.1) on the main chassis. G1
• Disconnect the cable from the PCI BOARD. G2
When remove the MAIN board (See page 7-17)
• Disconnect the four connectors from the main board. G3
• Carefully pull out the PCI BOARD from the CPU BOARD. G3
[G1]
Mechanical Part & Removal 7-17
