LeCroy WaveSurfer 400 Series

7-22 Mechanical Parts & Removal
When the connector of the power supply is removed, it is comprehensible when the load
side is removed.
Assembly of power board
[H5]
• Connect the five connectors removed [H3] step.

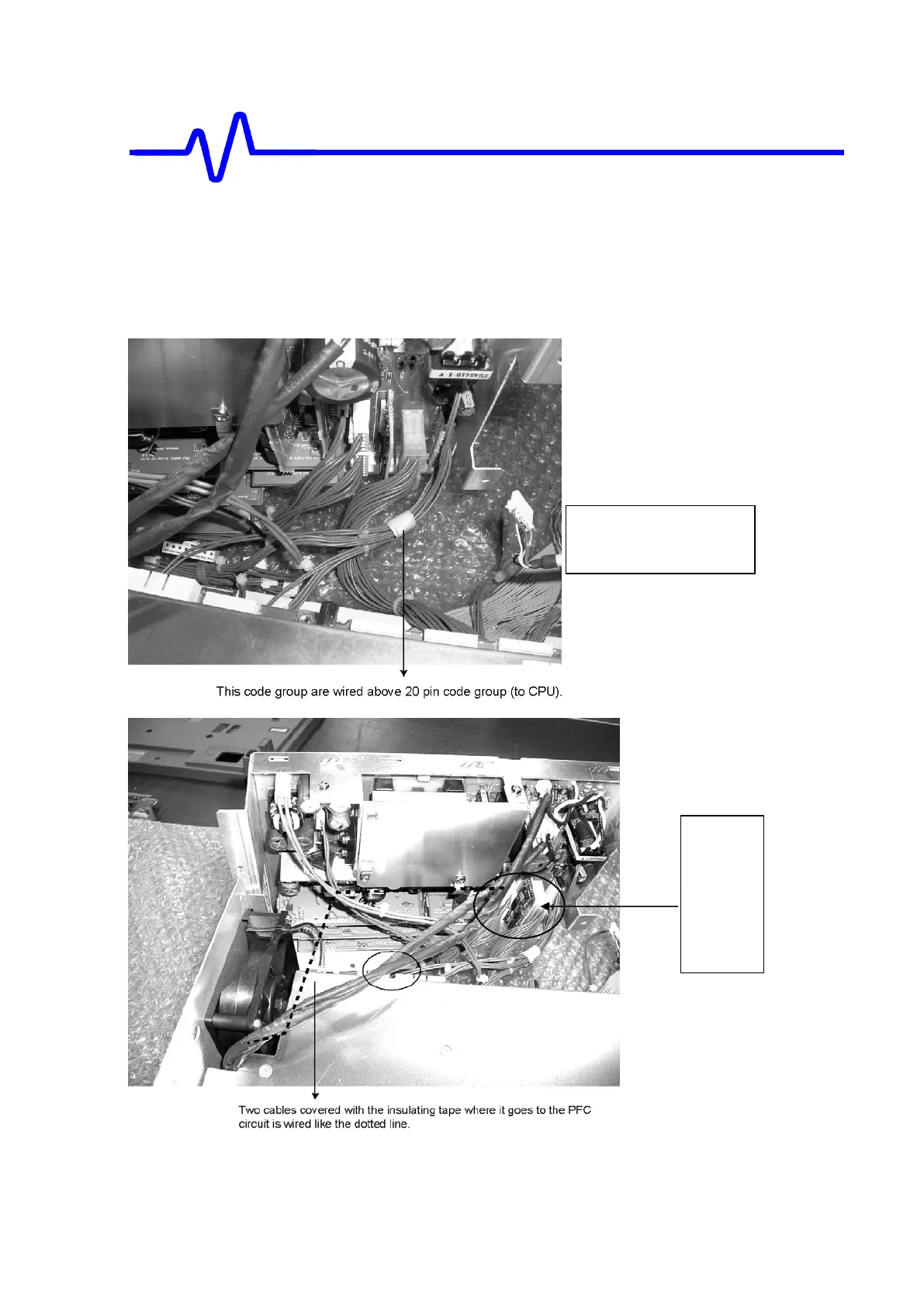

• Wire the five cables removed [H3] step like the following figures.
This code group are
bundled temporarily
These
two
cables is
wired
under
this
chassis.
[H6]
