LeCroy WaveSurfer 400 Series

To Next Page

To Previous Page

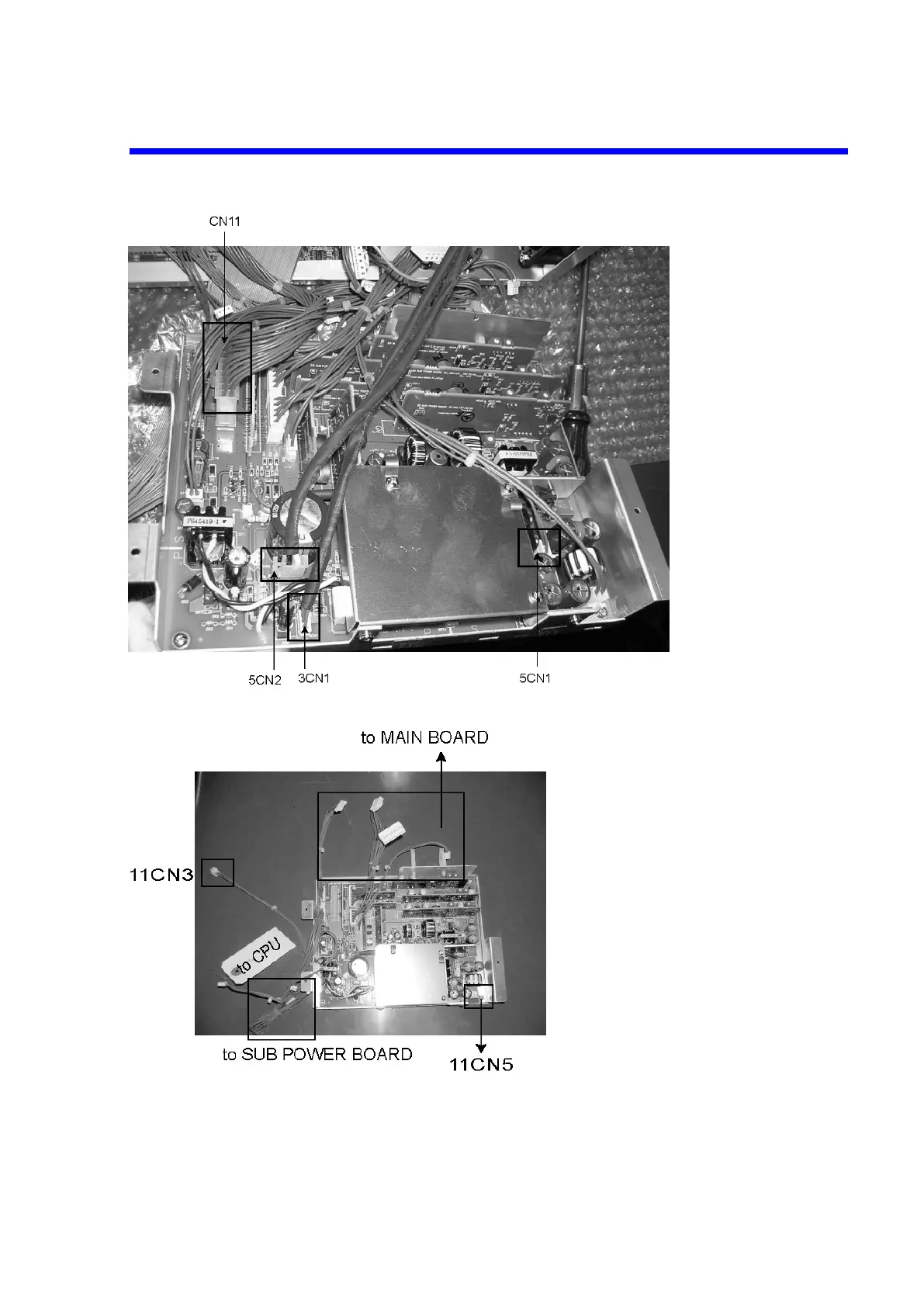

• Remove the four connectors

[H4]

Hint:

It is easy to assemble the power board by marking the option cables (tape or etc.).

Mechanical Part & Removal 7-21
