7-20 Mechanical Parts & Removal
H. Removal of the Power Supply Assembly

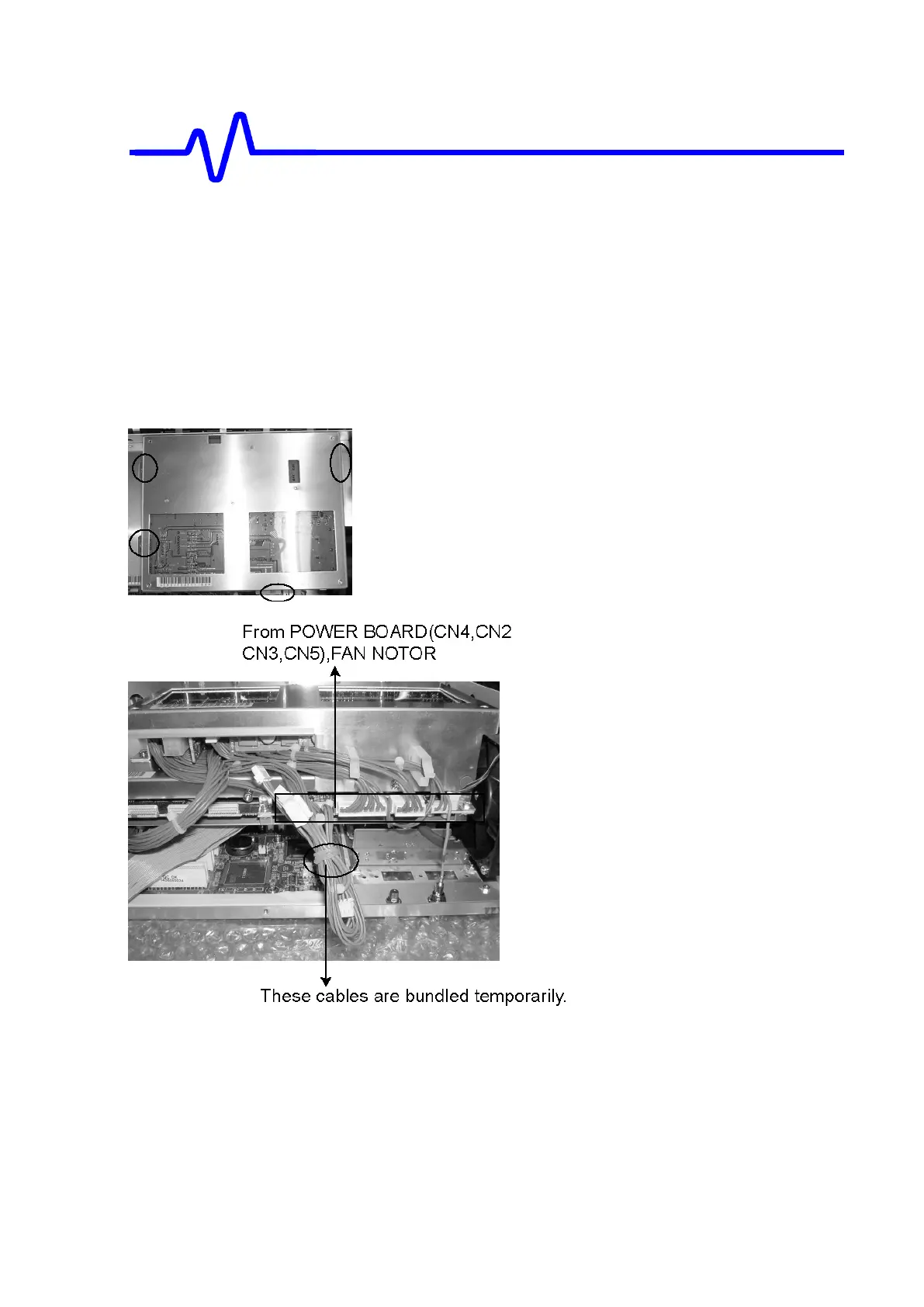

• Remove the four KB(+)3x6 screws on the Power case. H1
• Remove the five connectors in the box from the Power board (CN2, CN3, CN4, CN5).
H２
• Remove the cables from the cable holder. H2
• Remove the connector (CN11 LINE TRIG) on the Power board. H3
• Remove the connector (3CN1, 5CN4) on the Power board. H3
[H1]
[H2]
[H3]
