LeCroy WaveSurfer 400 Series User Manual

5-8 Performance Verification Rev. D Sept 2007
b. Ext DC 1MΩ Input Impedance

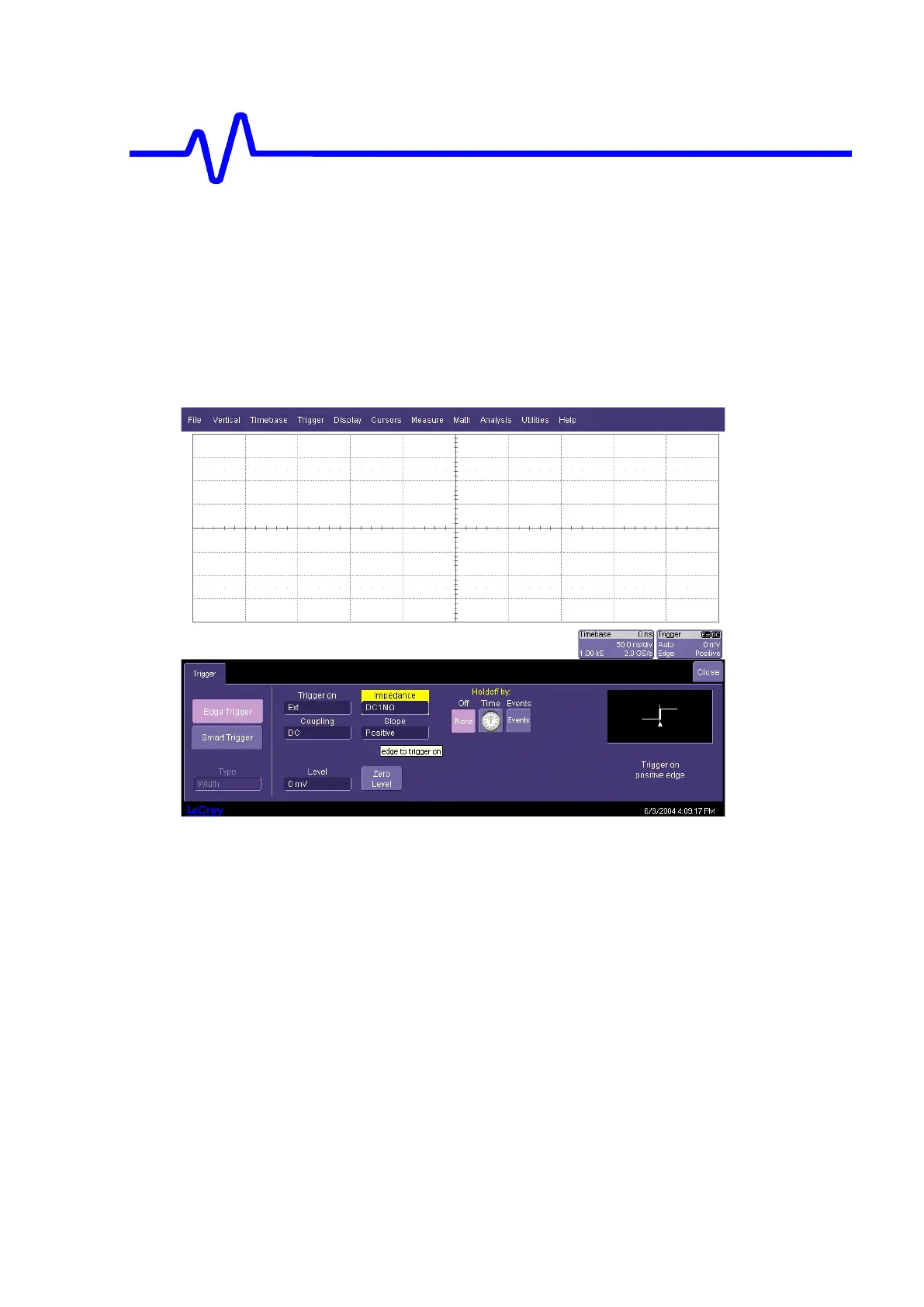

 Recall Input Impedance - 1 Mohm DC Ext x1.lss or configure the DSO :
Select Setup trigger
Trigger on : EXT
Impedance : DC 1MΩ
 Connect the DMM to External, and measure the input impedance.
 Record the input impedance in Table 2, and compare the result to the limit in the
test record.
 Recall Input Impedance - 1 Mohm DC Ext x10.lss or Set Trigger Source to
Ext/10.
 Repeat the test for all input channels.
 Record the measurements in Table 2, and compare the test results to the
limits in the test record.
