TACK DISTRIBUTOR
27

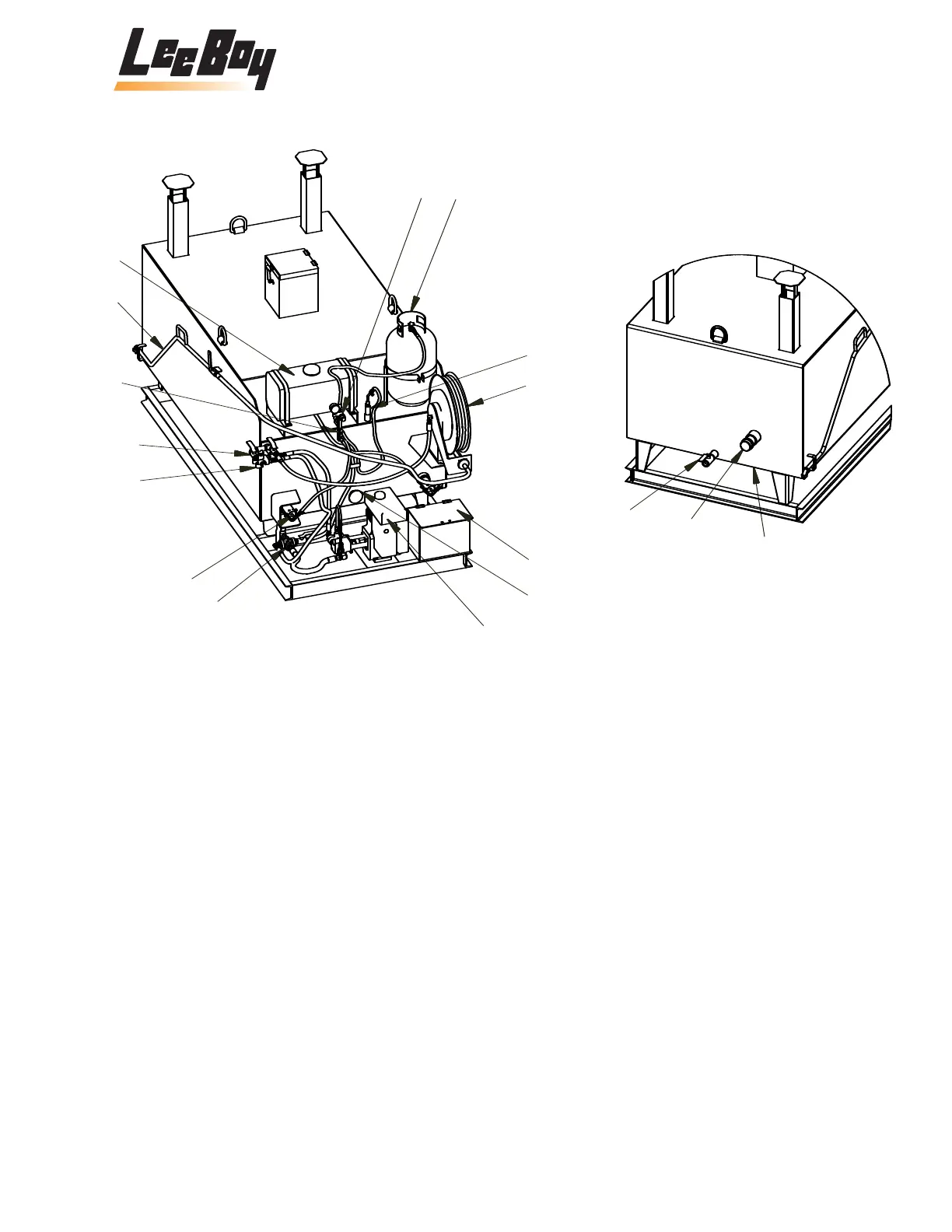

TACK DISTRIBUTOR
ITEM NO. QTY. PART NO. DESCRIPTION REFERENCE LOCATION
1 1 150020 HOSE REEL ASSY.
2 1 280300 DRAIN PLUG
3 1 851957 SELECTOR VALVE ASSY. SEE PAGE 32
4 1 851898 LOWER LIQUID ASPHALT VALVE ASSY. SEE PAGE 31
5 1 230010-30 PROPANE TANK, 30#, L.P.G.
6 1 800006 TANK ASSY., FLUSH
7 1 150230 MANIFOLD, L.P.G.
8 2 230190 BURNER NOZZLE, TACK TANK, SCREED HEAT
9 1 230100 GAUGE/REGULATOR, L.P.G.
10 1 230200 BURNER NOZZLE, IGNITER
11 1 330040 GAUGE, TEMPERATURE
12 1 280302 WAND, TACK SPRAY
13
1 150033 BATTERY BOX
14
1 150202 ENGINE & PUMP ASSY., (HONDA) SEE PAGE 31
15
1 920152 BATTERY
16
1
280301
PLUG, 2" N.P
.T
17
1
280210
BALL
V
AL
VE, 1 "
18
1
851967
SPRA
Y SELECT
V
ALVE ASSY., SKID SEE PAGE 32
L500 Skid
9
5
10
1
13, 15
11
14
4
8
3
18
7
12
6
17
16
2
Shown without heater
Item 16 used to cap heater port.
