LeeBoy L150 - Spray Bar Assembly

TACK DISTRIBUTOR
31

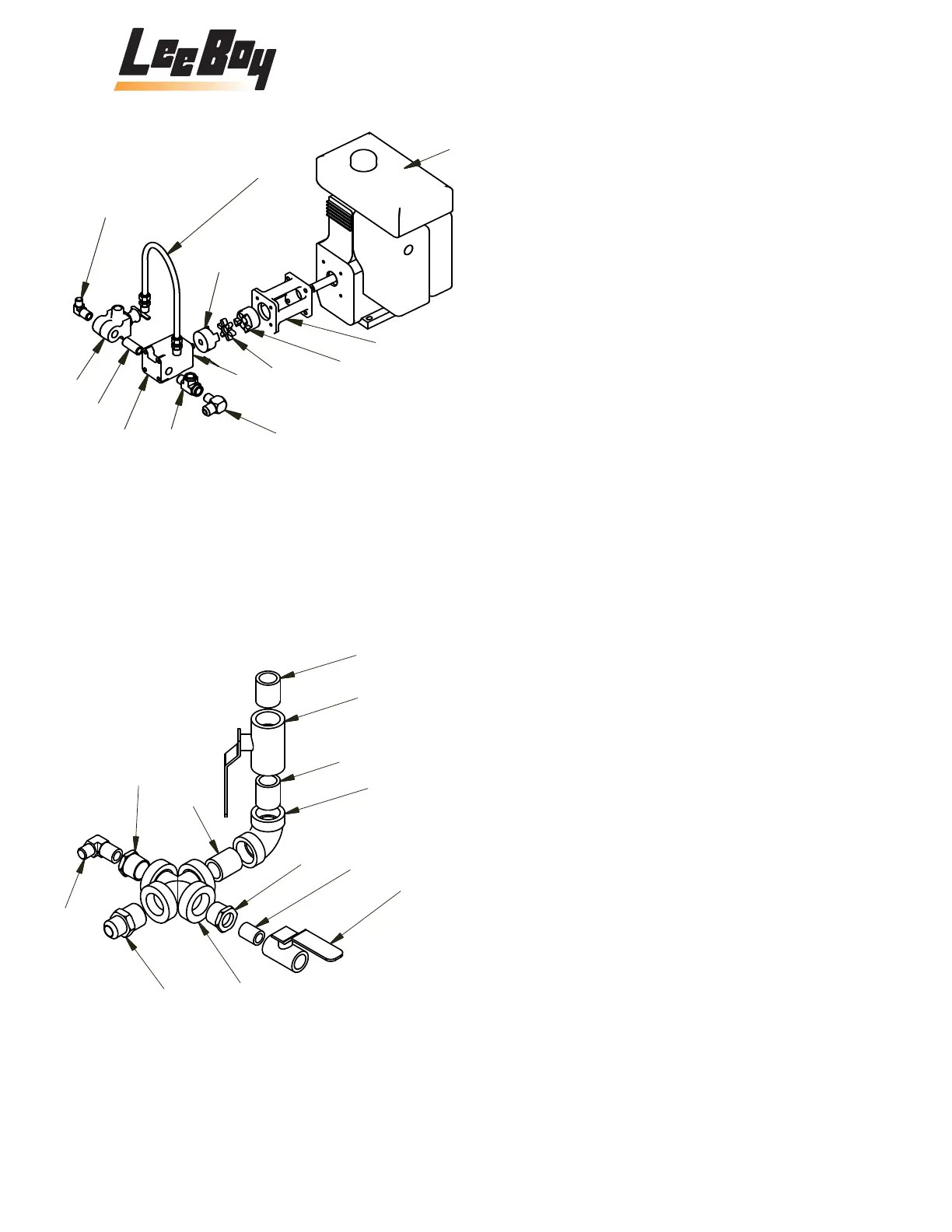

TACK DISTRIBUTOR
Engine & Pump
Assembly
Lower Liquid Asphalt
Valve Assembly
1
11
9
5
8
7
610
12
13
4
3
2
1
4
1
2
5
6
7
5
1
3
8
9
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 150200H ENGINE, HONDA 5HP
1 1 150200 ENGINE, BRIGGS & STRATTON 5 HP
2 1 150160 ADAPTER, PUMP TO ENGINE
3 1 150150A CPLG. HALF, 5 HP ENGINE
4 1 280040 INSERT, 3 JAW CPLG
5 1 280050 CPLG. HALF, TACK PUMP
6 1 280020 PUMP, TACK
7 1 280270 NIPPLE, 1/2" x 2" LG
8 1 280100 VALVE, RELIEF
9 1 2501-8-8 ADAPTER, PIPE TO HOSE (90 DEG.)
10 1 5602-8-8-8 ADAPTER, PIPE TO HOSE (TEE)
11 1 210100A LINE, RELIEF VALVE
12 1 2501-12-8 ADAPTER, PIPE TO HOSE (90 DEG.)
13 1 280020-1 SEAL KIT, PUMP
* 1 50200HE ENGINE (OPTIONAL),
HONDA 5 HP W/ ELEC. START
ITEM NO. QTY. PART NO. DESCRIPTION
1
3
280200
NIPPLE, 1 " PIPE x CLOSE
2
1
280170 ELBOW, 1 "PIPE
3
1
280230
CROSS, 1 " PIPE
4
1
280210 BALL VALVE, 1 "
5
2 280240 BUSHING, HEX HEAD 1"x 1/2"
6
1 280270 NIPPLE, 1/2" PIPE x CLOSE
7
1 280290 BALL VALVE, 1/2"
8 1 2404-12-16 ADAPTER, PIPE TO HOSE
9 1 2501-8-8 ADAPTER, PIPE TO HOSE
