LeeBoy L150 - L150 Idler Axle Assembly

TACK DISTRIBUTOR
34
TACK DISTRIBUTOR
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 150040 AXLE ASSY., IDLER 3500#
2 2 150040-1 WHEEL HUB ASSY., 3500#
3 1 150830 CUP, ROLLER BEARING
4 1 150840 CONE, ROLLER BEARING
5 1 150430 CUP, ROLLER BEARING
6 1 150440 CONE, ROLLER BEARING
7 5 620510 WHEEL STUD
8 1 150420 WHEEL SEAL, 3500#
9 1 150850 GREASE CAP, 3500#
10 5 620520 LUG NUT
11 2 150060 SPRING, AXLE
12 2 150050 U-BOLT KIT, 3500#
13 2 610260 HEX CROWN AXLE NUT
14 2 610250-1 D-HOLE FLAT WASHER
15 2 610250 LOCKWASHER
• ITEM 2 INCLUDES ITEMS 3 THRU 10.

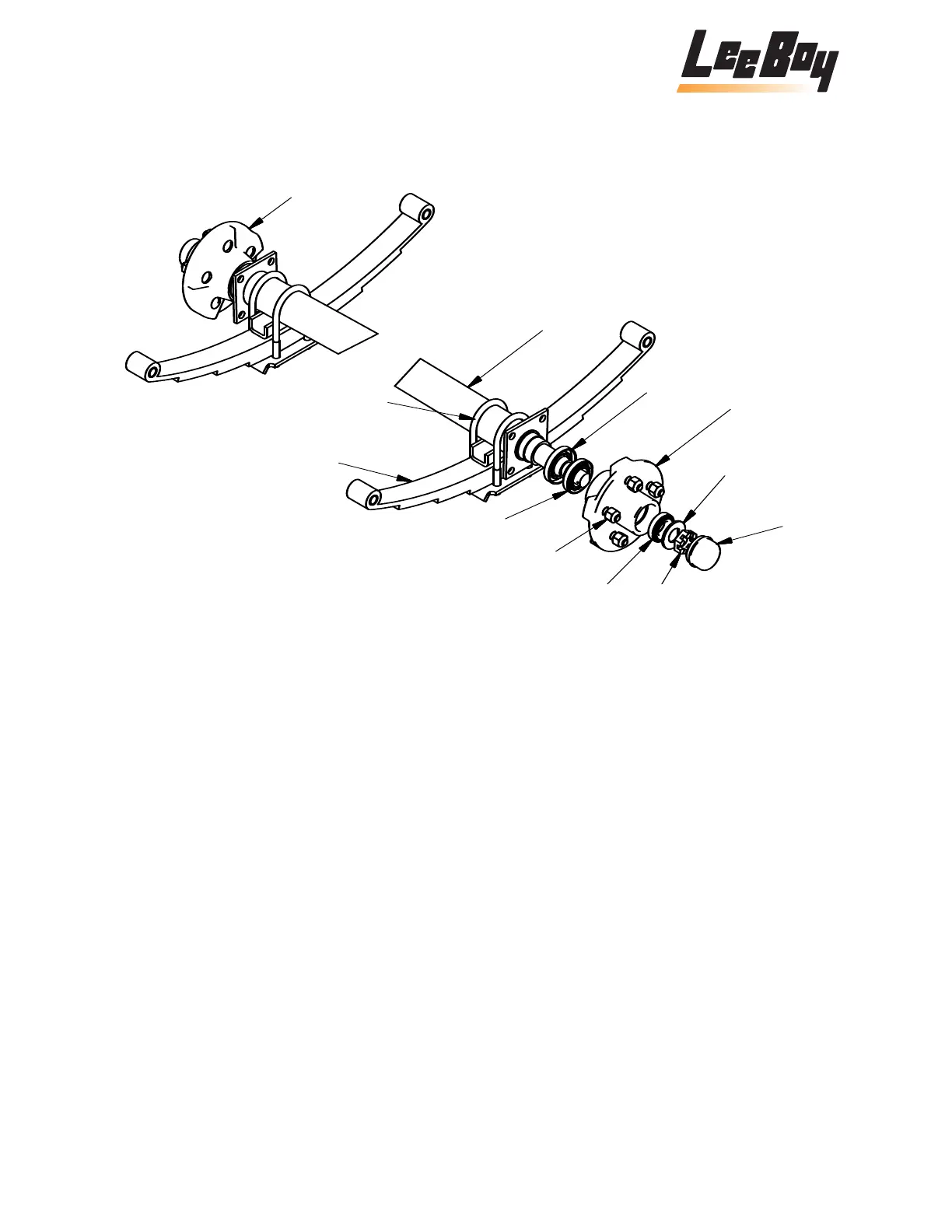

L150 Idler Axle Assembly
2
1
12
11
6, 5
10, 7
4, 3
13, 15
9
14
12
8
