TACK DISTRIBUTOR
33
TACK DISTRIBUTOR
ITEM NO. QTY. PART NO. DESCRIPTION
1
1 851939 MOUNTING ASSY., SPRAY BAR
2
2 851928 SPACER, SPRAY BAR ARM
3
2 851931 ARM, SPRAY BAR ARM
4
4 851932 SPRAY BAR, MOUNTING BRKT
5
1 550201 MANIFOLD
6 2 490080 NUT, FRICTION
7 2 240030 PIN, CLEVIS
8 6 150810 TEE, 1 " 3000# SCH 40
9
6
280250
PLUG, 1 " PIPE
10
6
280240
BUSHING, 1 " M.P.T. x 1 /2" F.P.T.
11 6
280270 NIPPLE, 1/2" PIPE x CLOSE
12
6 280290 BALL VALVE, 1 / "
13
6 280320 BUSHING, 1/2" M.P.T. x 1/4" F.P.T.
14 6 280310 NOZZLE, TACK SPRAY
15 4 150781 NIPPLE, 1 " PIPE x 18" LONG
16 2 2501-16-12 ADAPTER ELBOW, PIPE TO HOSE
17 1 150023 HOSE ASSY., MANIFOLD TO L.H. ARM
18 1 150025 HOSE ASSY., MANIFOLD TO R.H. ARM
19 1 930039 CLIP, CLEVIS PIN

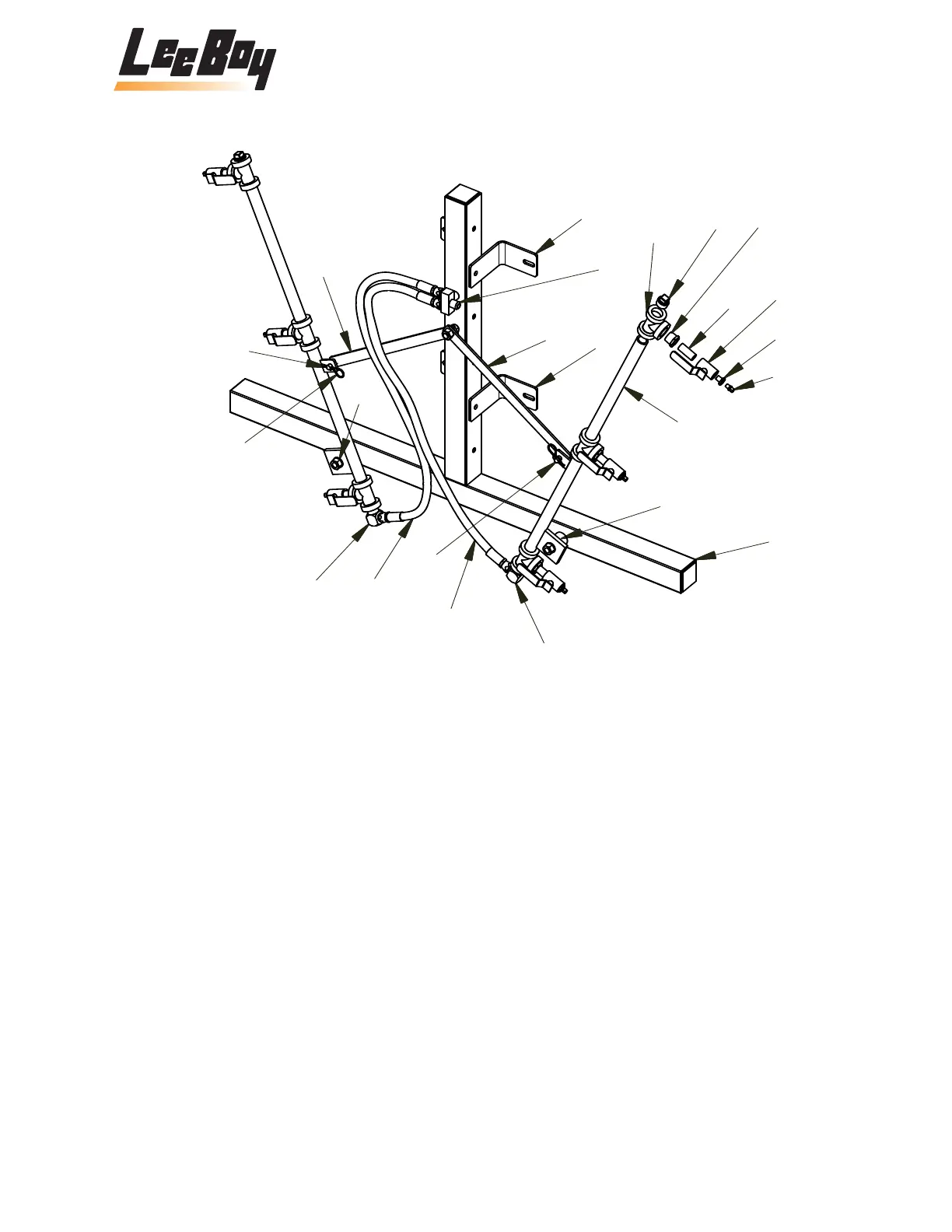

Spray Bar Assembly
4
3
5
4
3
7
19
16
17
6
7
18
16
1
2
15
14
13
1
2
11
1
0
9
8
