LeeBoy L150 - L250;L500 Axle & Brake Assembly

TACK DISTRIBUTOR
37
TACK DISTRIBUTOR
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 150040B AXLE ASSY., BRAKE 5200#
2 2 317030 BRAKE DRUM ASSY., 5200#
3 1 610230 CUP, ROLLER BEARING
4 1 610240 CONE, ROLLER BEARING
5 6 620510 WHEEL STUD
6 1 610190 WHEEL SEAL 5200#
7 1 340040 GREASE CAP 5200#
8 6 620520 LUG NUT
9 1 610200 CUP, ROLLER BEARING
10 1 610210 CONE, ROLLER BEARING
11 1 340060R BRAKE ASSEMBLY 5200R
12 1 340060L BRAKE ASSEMBLY 5200L
13 2 340070-A BRAKE SHOE KIT 12 x 2
14 1 34011 0-A BRAKE ADJUSTER
15 1 340100 ELECTRO-MAGNET
16 2 150060A SPRING, AXLE 5200#
17 2 150050A U-BOLT KIT 5200#
18 2 610260 AXLE NUT
19 2 610250-1 D-WASHER
20 2 610250 LOCKWASHER
21 2 340130 SPRING KIT
22
1
340110B
SPRING
• ITEM 2 INCLUDES ITEMS 3
THR
U 10.
• ITEM 11 INCLUDES ITEMS 13
THR
U 15.
• ITEM 12 INCLUDES ITEMS 13
THR
U 15.

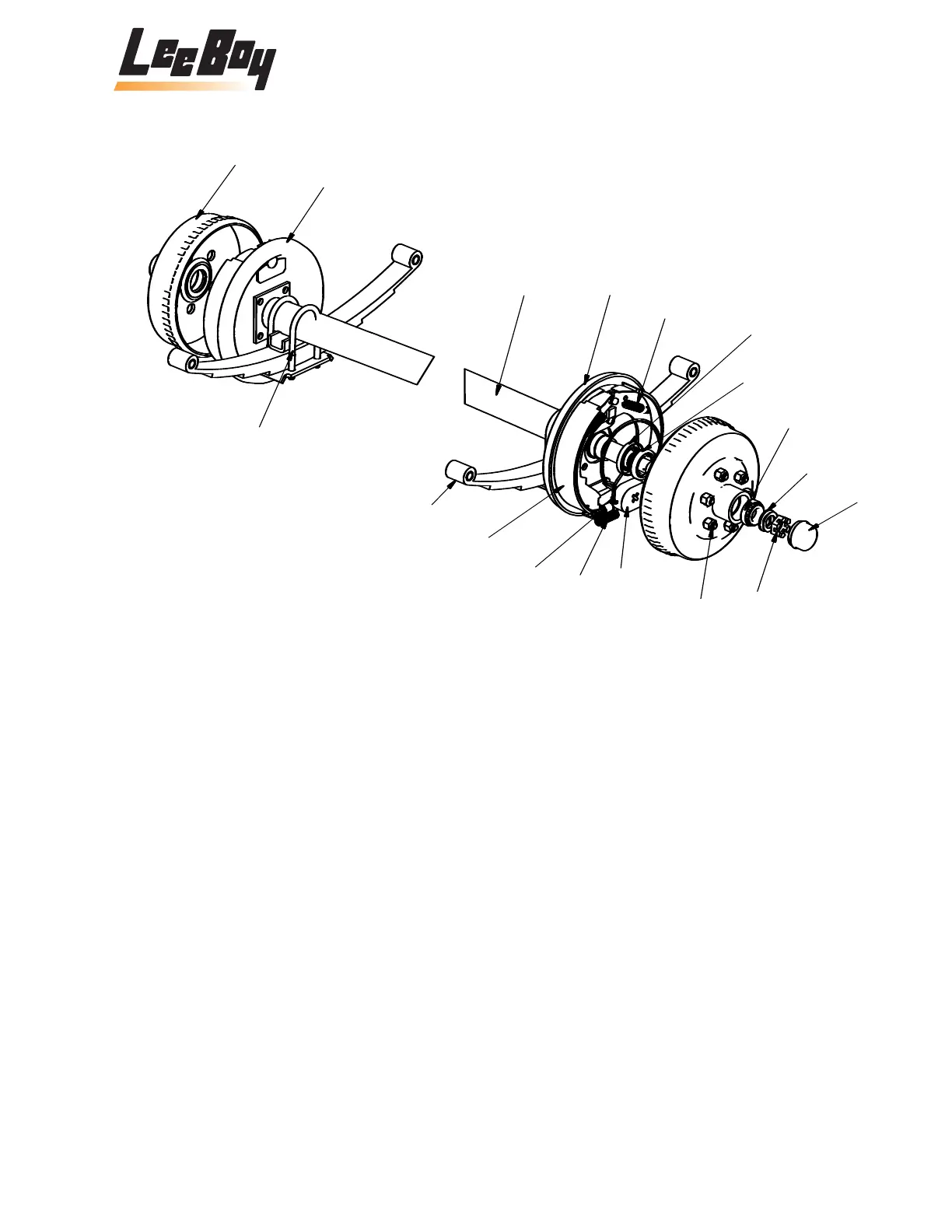

L250/L500 Axle & Brake Assembly
2
11
17
1
12
21
6
19
7
9, 10
18, 20
3, 4
8, 5
15
22
14
13
16
