LeeBoy L150 - L150 Axle & Brake Assembly

TACK DISTRIBUTOR
35
TACK DISTRIBUTOR
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 150040C AXLE ASSY., BRAKE 3500#
2 2 150540 BRAKE DRUM ASSY., 3500#
3 1 150830 CUP, ROLLER BEARING
4 1 150840 CONE, ROLLER BEARING
5 6 620510 WHEEL STUD
6
1 150420 WHEEL SEAL 3500#
7
1 150850 GREASE CAP 3500#
8 6 620520 LUG NUT
9 1 150430 CUP, ROLLER BEARING
10 1 150440 CONE, ROLLER BEARING
11 1 150460R BRAKE ASSEMBLY 3500R
12 1 150460L BRAKE ASSEMBLY 3500L
13 2 150541 BRAKE SHOE KIT12 x 2
14 1 340110A BRAKE ADJUSTER
15 1 340100 ELECTRO-MAGNET
16 2 150060 SPRING, AXLE 3500#
17 2 150050 U-BOLT KIT 3500#
18 2 610260 AXLE NUT
19 2 610250-1 D-WASHER
20 2 610250 LOCKWASHER
21 2 340130 SPRING KIT
22 1 340110B SPRING
• ITEM 2 INCLUDES ITEMS 3 THRU 10.
• ITEM 11 INCLUDES ITEMS 13 THRU 15.
• ITEM 12 INCLUDES ITEMS 13 THRU 15.

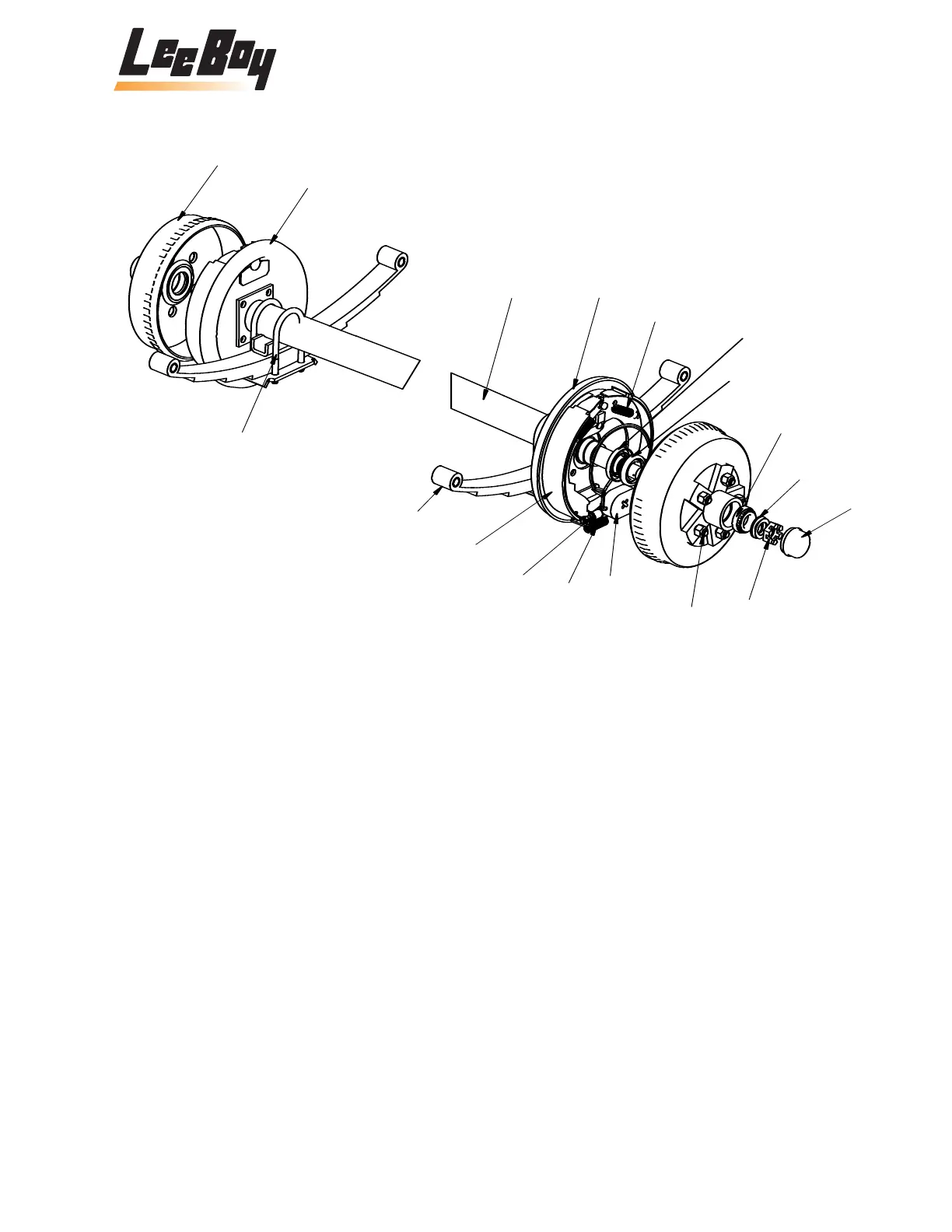

L150 Axle & Brake Assembly
2
11
17
1
12
21
6
9.
10
3, 4
19
7
18, 19
8, 5
15
22
14
13
16
