▶ Connecng the Rope Sensor to the terminals:

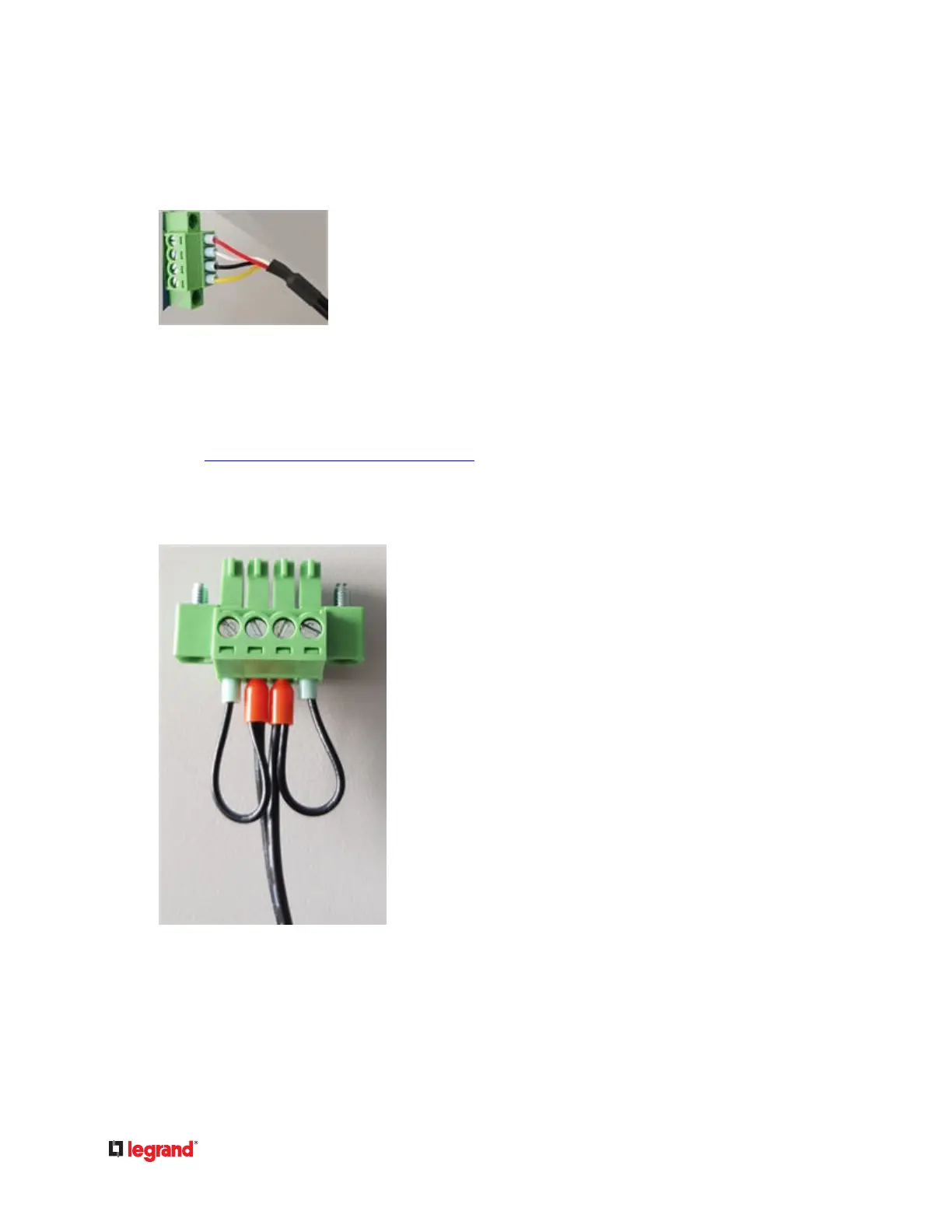

• Connect the rope sensor wires to the terminals as shown in the diagram.•
• The black wire is the sensing wire that changes leak detecon status.•
▶ Floor Sensor:
• Detects the presence of water/liquid•
• Available in 3.5m, 7m and 10m lengths•
• See How a Floor-mounted Water Sensor Works (on page 19)•
▶
Connecng the Floor Sensor to the DX2-WS1:
• Connect the oor sensor wires to the terminal as shown in the diagram.•
