See Supported Maximum Number of Sensors and Actuators (on page 56).

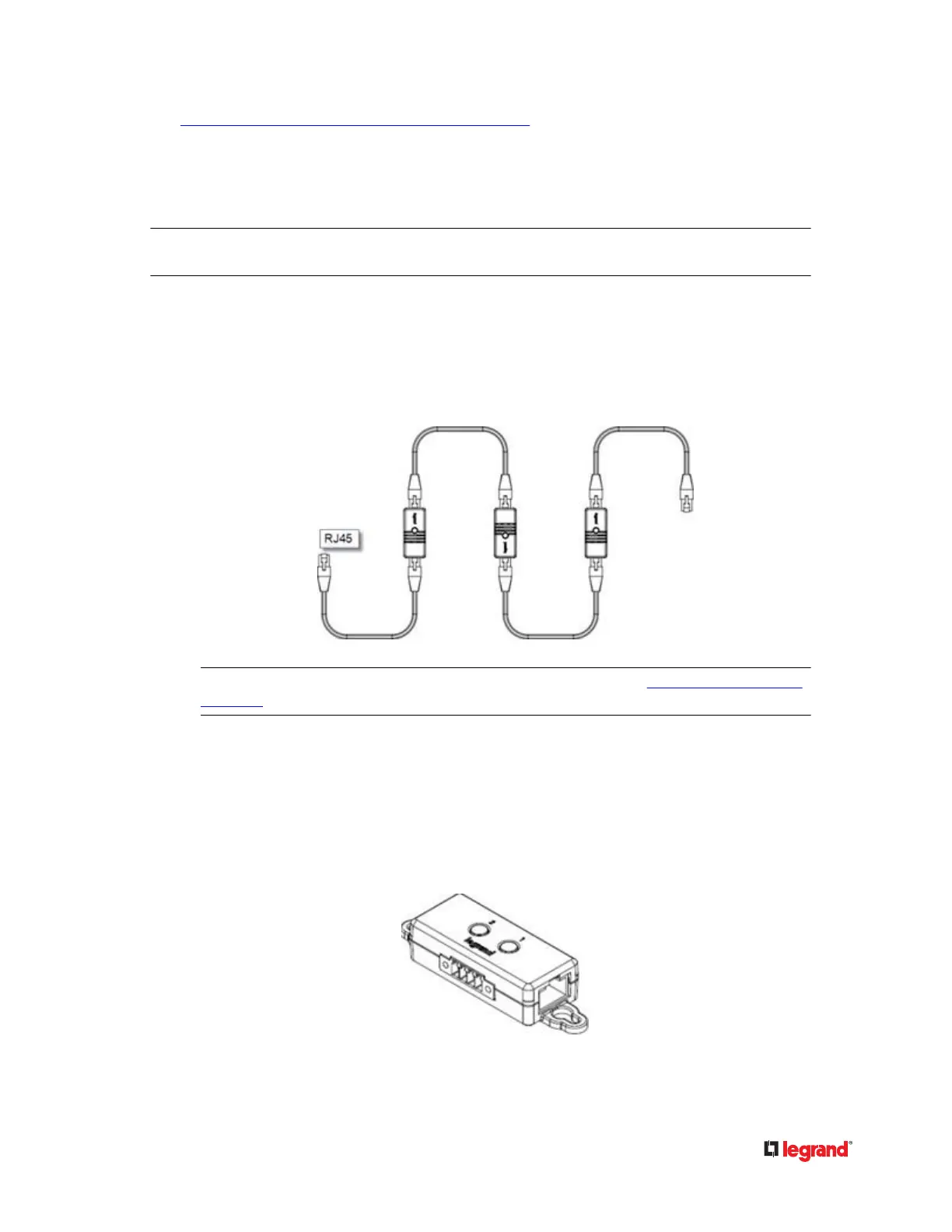

▶ To cascade DX2 sensor packages:
1) Connect a standard network patch cable to either RJ-45 port of the rst DX2 sensor package.
Excepon: For a device with an "RJ‑12" SENSOR port, an RJ‑12 to RJ‑45 adapter cable (part number:
RJ12M-RJ45M) is needed.
2)
If you want to cascade DX2 packages, get an addional standard network patch cable (CAT5e or
higher) and then:
a. Plug one end of the cable into the remaining RJ‑45 port on the prior DX2 package.a.
b. Plug the other end into either RJ‑45 port on an addional DX2 package.b.
Repeat the same steps to cascade more DX2 packages.
Excepon: You CANNOT cascade DX2‑DH2C2 packages. For details, see DX2-DH2C2 Door Handle
Controller (on page 7).
DX2-D2 Dual Dry-Contact Sensor
DX2‑D2 provides:
• Two RJ45 connectors - for connecon to sensor port and chaining•
• Two LEDs•
• Two dry contacts•
26
