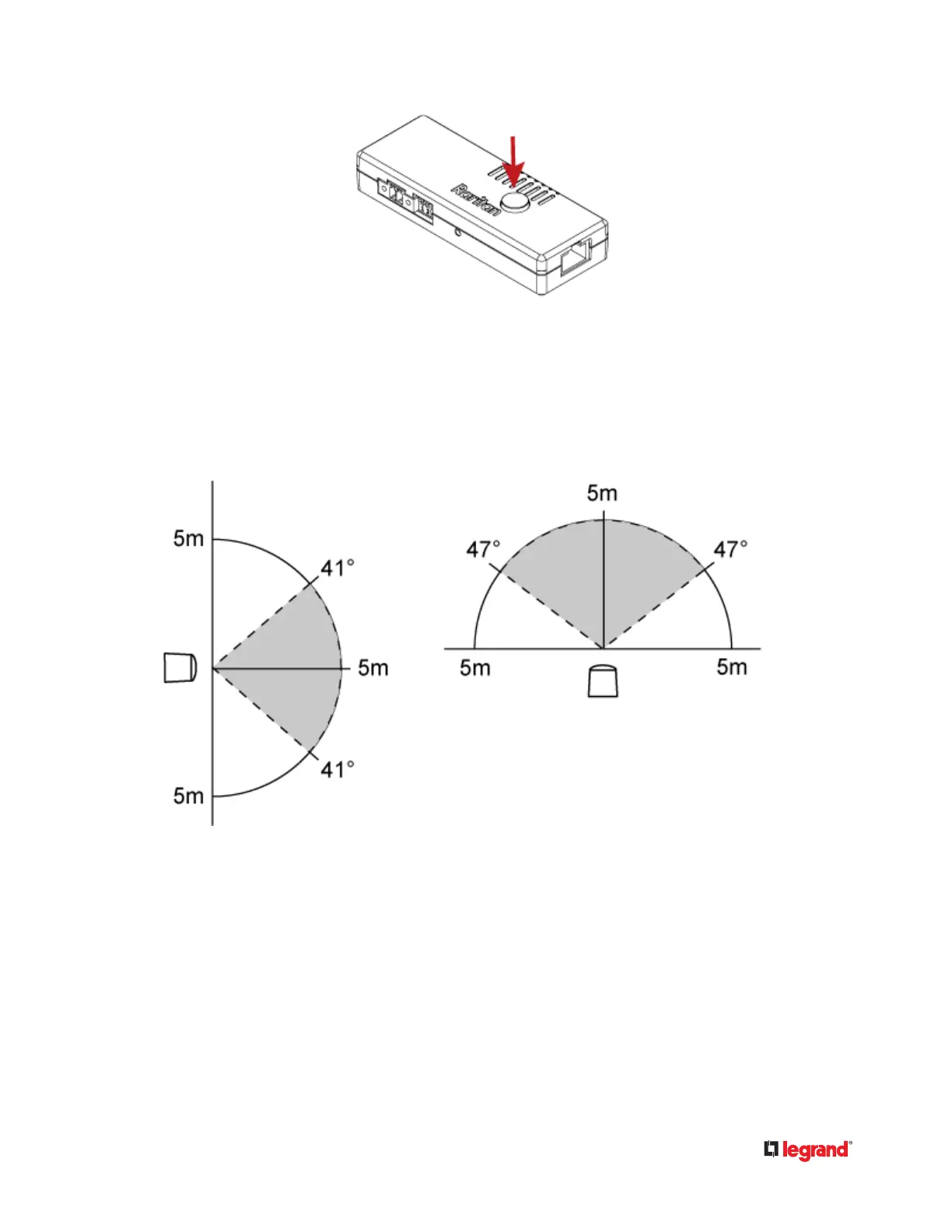

The diagrams below show the occupancy sensor's detecon range and sensing area.
Side View Top View
• Maximum range: 5 meters•
•
Vercal sensing area: 82 degrees
•
(+/- 41 degrees)
• Maximum range: 5 meters•
•
Horizontal sensing area: 94 degrees
•
(+/- 47 degrees)
Condions for the detected target:
• Temperature dierence between the target and the surroundings should exceed 4 degrees Celsius•
(7.2 degrees Fahrenheit).
• Target's movement speed: 1.0 m/s.•
• Target concept is human body (size: 700 x 250 mm).•
