LEGRAND Tynetec Advent XT2 Installation Manual

Doc No. FM0814 issue 5 Page 16
14. IP-DECT BASE STATION
IP-DECT Base Stations are used with the Server 400 Multi Cell or Server 6500 systems.
IP-DECT Base Stations have 12 simultaneous traffic channels and work as the link between the DECT
handsets and the IP-DECT 400/6500 Server.
LED INDICATOR
The front cover Status LED will indicate the IP-DECT Base Station status by different colours and flash
patterns, see the table below;
LED Colour
Meaning
Steady Green
OK and idle
Slow Green Flashing
OK and active voice call
Fast Green Flashing
Busy (all channels in use)
Slow Red Flashing
No Server connection
Fast Red Flashing
Error – no over air sync possible
Steady Red
Reset/shut-down in progress
Steady Red for 5 Seconds
then Fast Red Flashing
Reset to factory settings
RESET BUTTON
You can restart the IP-DECT Base Station by pressing the RESET button on the bottom face, see the table
below for the 2 possible actions;
Press Button
Action
Short press (2-5 Secs)
Base Station restarts when the button is released
Long press (5-9 Secs) until front LED
flashes red then release button
Reset to factory defaults (original IP setting and empty user
data base) and restart.
Refer to the Spectralink IP-DECT Base Station installation guide (see section 6)

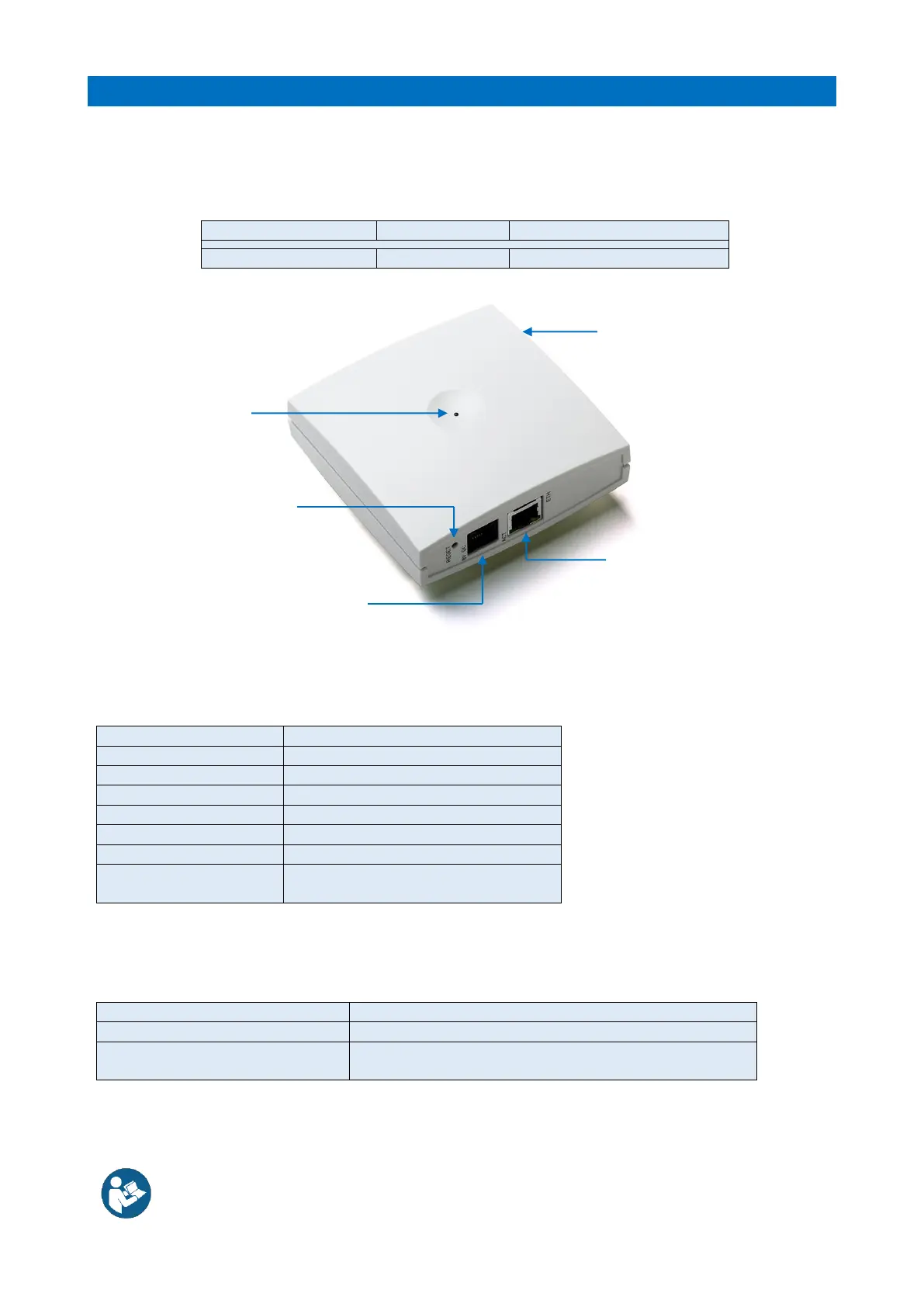

Status LED
Surface Mount ABS Enclosure
100 x 100 x 43mm (HxWxD)
8V PSU Port (if PoE not used)
Reset Button
Ethernet Port (PoE)
Green Flashing LED = Activity
Yellow LED = Ethernet OK
Spectralink Ref.
Tynetec Part No.
Product
0233 7400
ZXT536
IP-DECT Base Station
