LEGRAND Tynetec Advent XT2 Installation Manual

Doc No. FM0814 issue 5 Page 18

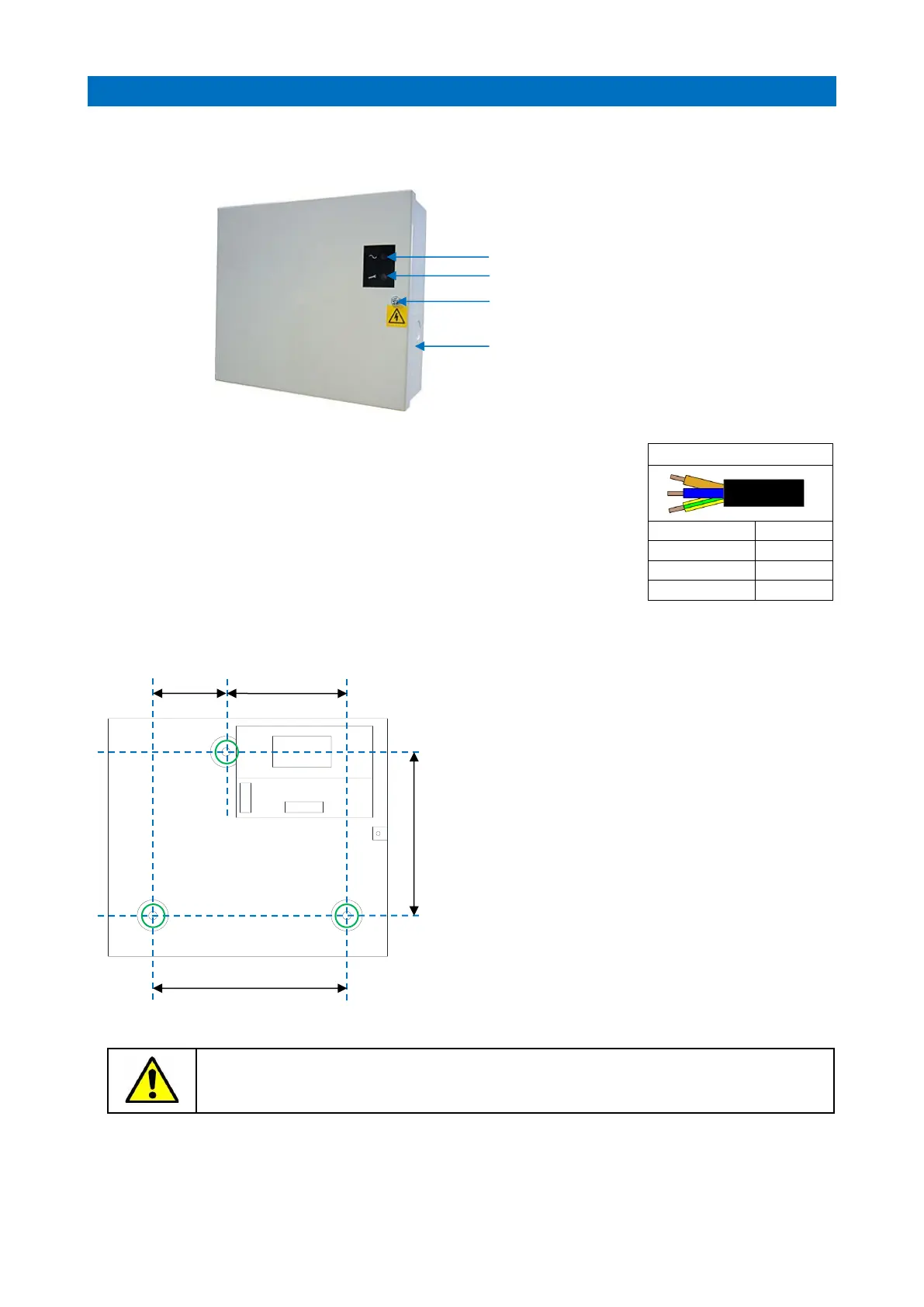

16. DECT REPEATER BATTERY BACKED PSU
The 12V/2A Battery Backed PSU (Tynetec Part No. E40062) requires connection to the mains supply.
INSTALLATION
Undo the lid fixing screw and open the lid.
Note: if the lid is removed ensure the Safety Earth is re-connected.
Fix the power supply unit to the wall using the 3 holes “A” as shown below.
Connect the mains supply to the mains terminals using the colour code
in the table alongside.
PSU FIXING
The PSU should only be opened during installation and service – the lid must be screwed
shut at all other times to prevent the risk of electric shock.
Never leave a live PSU unattended with the lid open.
Wall Mounted Enclosure
200 x 230 x 80mm (HxWxD)
Green Power LED
Red Fault LED
Boxed PSU
Hinged/Removeable Lid
Mains Connection
Colour
Terminal
Brown
L
Blue
N
Green/Yellow
E
160mm
65mm
145mm
A
A
A
12V/1A Boxed PSU
E
N
L
O/P
+ -
PSU LED INDICATORS
The GREEN POWER LED should be
permanently illuminated when the
Mains supply is healthy.
The RED FAULT LED will illuminate
if the 12V output fuse has blown or
the battery PTC resettable fuse has
tripped.
95mm
Battery Backed
12V/2A Boxed PSU
