21. IP-DECT 6500 SYSTEM INSTALLATION
If full site coverage cannot be achieved using the IP-DECT Server 400 Multi Cell option then the IP-DECT
Server 6500 must be used. The standard IP-DECT Server 6500 can expand up to 8 Base Stations, 24
Repeaters and 30 DECT handsets. Larger systems are possible by adding additional Ethernet Switch’s to
increase the number of PoE Ports & Base Stations/Repeaters and an additional licence to increase the
number of DECT handsets.
PART NUMBERS
Matrix NENX IP50 IP-PBX (50 IP Ports)
TP-Link 10 Port Ethernet Switch (8 x PoE)
Spectralink IP-DECT Server 6500
Spectralink IP-DECT Base Station
max 8 per Ethernet Switch
Spectralink 4 Channel Multi-Cell DECT Repeater
max 3 per IP Base Station
Spectralink Repeater Programming Kit (USB)
Spectralink 7202 DECT Handset & Charger
max 30 per site (4095 with
additional licences)
Spectralink 7212 DECT Handset & Charger
BT Décor CLI Desk Telephone
12V DC 2A Battery Backed PSU
Spectralink DECT Repeater Plug-top PSU
Spectralink IP-DECT Server 200/400/Base Station Plug-top PSU
Note: the IP-DECT Server 6500 allows connection of 256 radio points
which can be made up of either Base Stations or Repeaters.
UPS CONNECTION
To maintain DECT operation during a mains failure the Matrix IP-PBX, Ethernet Switch and IP-DECT Server
6500 must all be powered from the battery backed output sockets on the UPS.
Note: If the Matrix IP-PBX, Ethernet Switch and IP-DECT Server 6500 are plugged directly into the mains
there will be no DECT coverage during a mains failure; however, the CLI desk telephone will still operate.

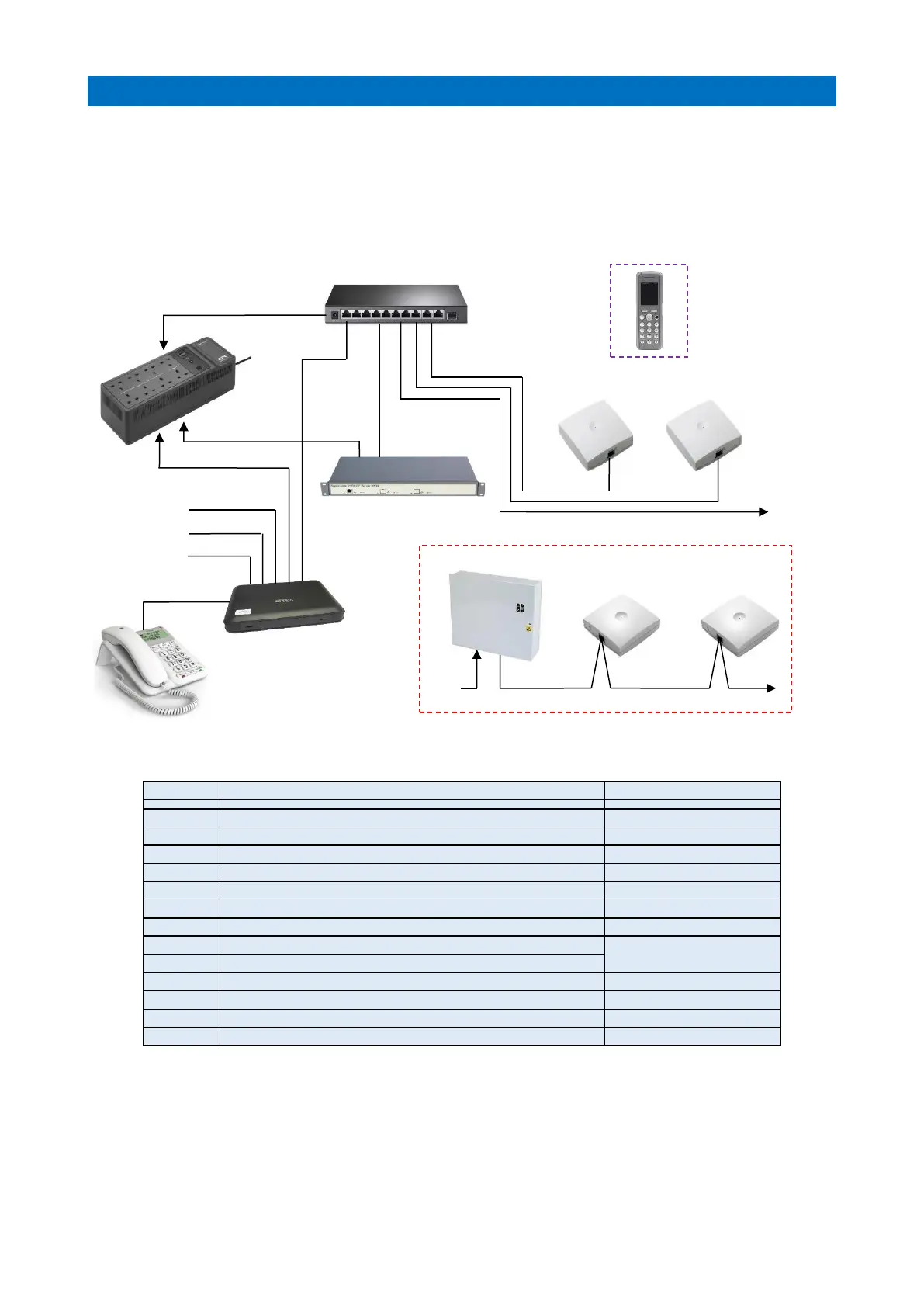

DECT Handsets (30 standard)
4 Channel Multi Cell Repeaters
DECT Repeaters (max 3 per Base Station = 24
standard)
IP-DECT Base Stations (8 standard)
10 Port Ethernet Switch (8 x PoE)
