Doc No. FM0814 issue 5 Page 22

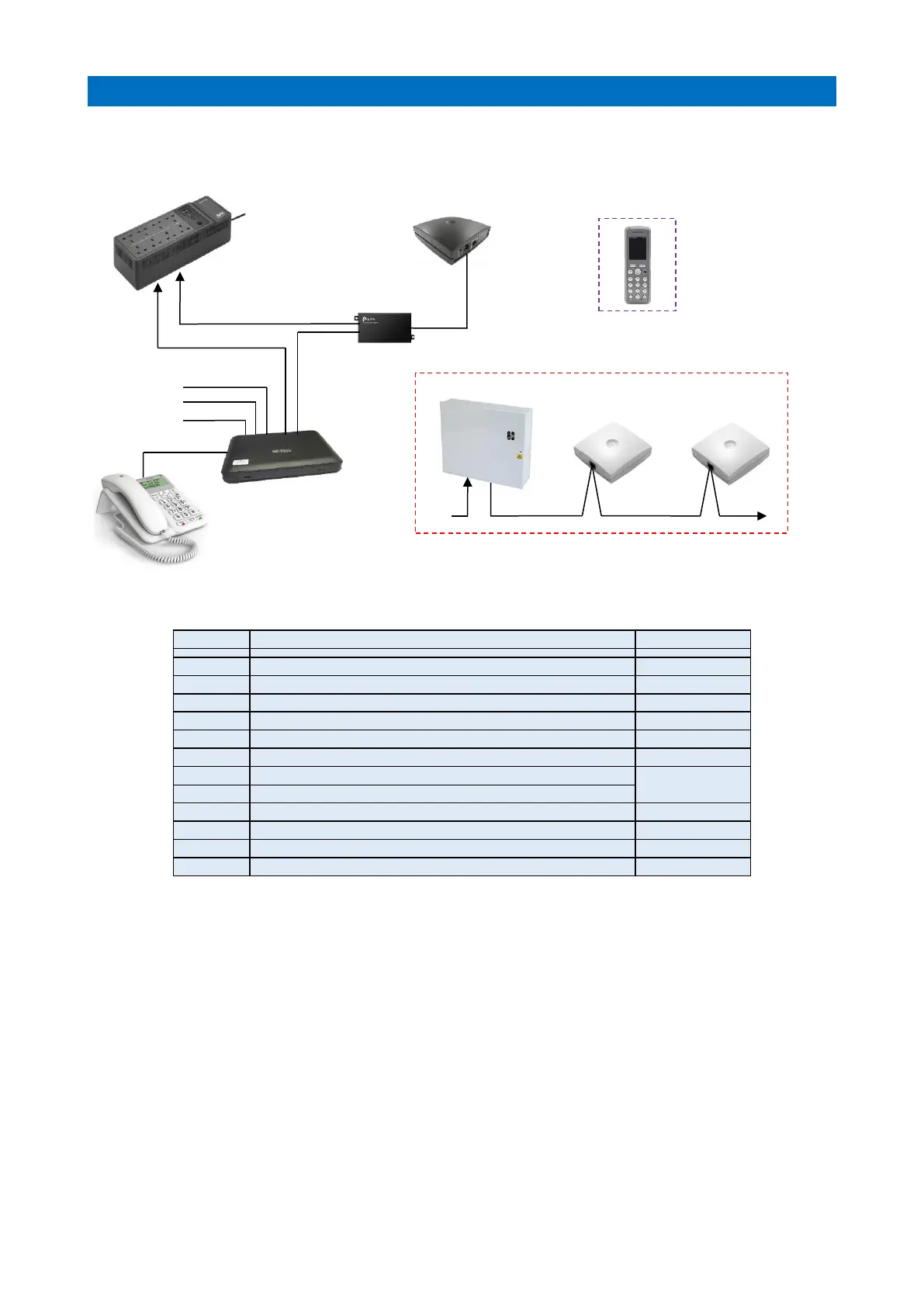

19. IP-DECT 200 SINGLE CELL SYSTEM INSTALLATION
The IP-DECT Server 200 Single Cell option is suitable for small installations using 1 Server/Base Station and
up to 6 Repeaters. A maximum of 12 DECT handsets can be used on a single cell system.
PART NUMBERS
Matrix NENX IP50 PBX (50 IP Ports)
Spectralink IP-DECT Server 200 Single Cell
Spectralink 4 Channel Multi Cell DECT Repeater
Spectralink Repeater Programming Kit (USB)
Spectralink 7202 DECT Handset & Charger
Spectralink 7212 DECT Handset & Charger
BT Décor CLI Desk Telephone
12V DC 2A Battery Backed PSU
Spectralink DECT Repeater Plug-top PSU
Spectralink IP-DECT Server 200/400/Base Station Plug-top PSU
UPS CONNECTION
To maintain DECT operation during a mains failure the Matrix IP-PBX and PoE injector must both be
powered from the battery backed output sockets on the UPS.
Note: If the Matrix IP-PBX and PoE injector are plugged directly into the mains there will be no DECT
coverage during a mains failure; however, the CLI desk telephone will still operate.
PoE INJECTOR CONNECTION
The PoE injector provides Power over Ethernet for the IP-DECT Server 200 Single Cell.
AC 100-240V - connect to a battery backed output socket on the UPS using the mains lead provided.
DATA IN - connect to the Matrix IP-PBX Ethernet Port using the RJ45 patch lead provided.
PWR+DATA OUT - connect to the IP-DECT Server 200 using an RJ45 patch lead or extend to a maximum of
100 metres using Cat5e cable.
4 Channel Multi Cell Repeaters
IP-DECT
Server 200
Single-Cell
To Next Page
