Doc No. FM0814 issue 5 Page 31
Multi-Cell Server/Base
RPN 3-6
Repeater
RPN +64
Repeater
RPN 128
Repeater
RPN +192
Multi-Cell Server/Base
RPN 3-6
Repeater
RPN +64
Repeater
RPN +128
Repeater
RPN +192
Repeater
RPN +64
Multi-Cell Server/Base
RPN 3-6
Repeater
RPN +128
Repeater
RPN +192
Multi-Cell Server/Base
RPN 3-6
Repeater
RPN +64
Repeater
RPN +128
Repeater
RPN +192
20. IP-DECT 400 MULTI CELL SYSTEM INSTALLATION

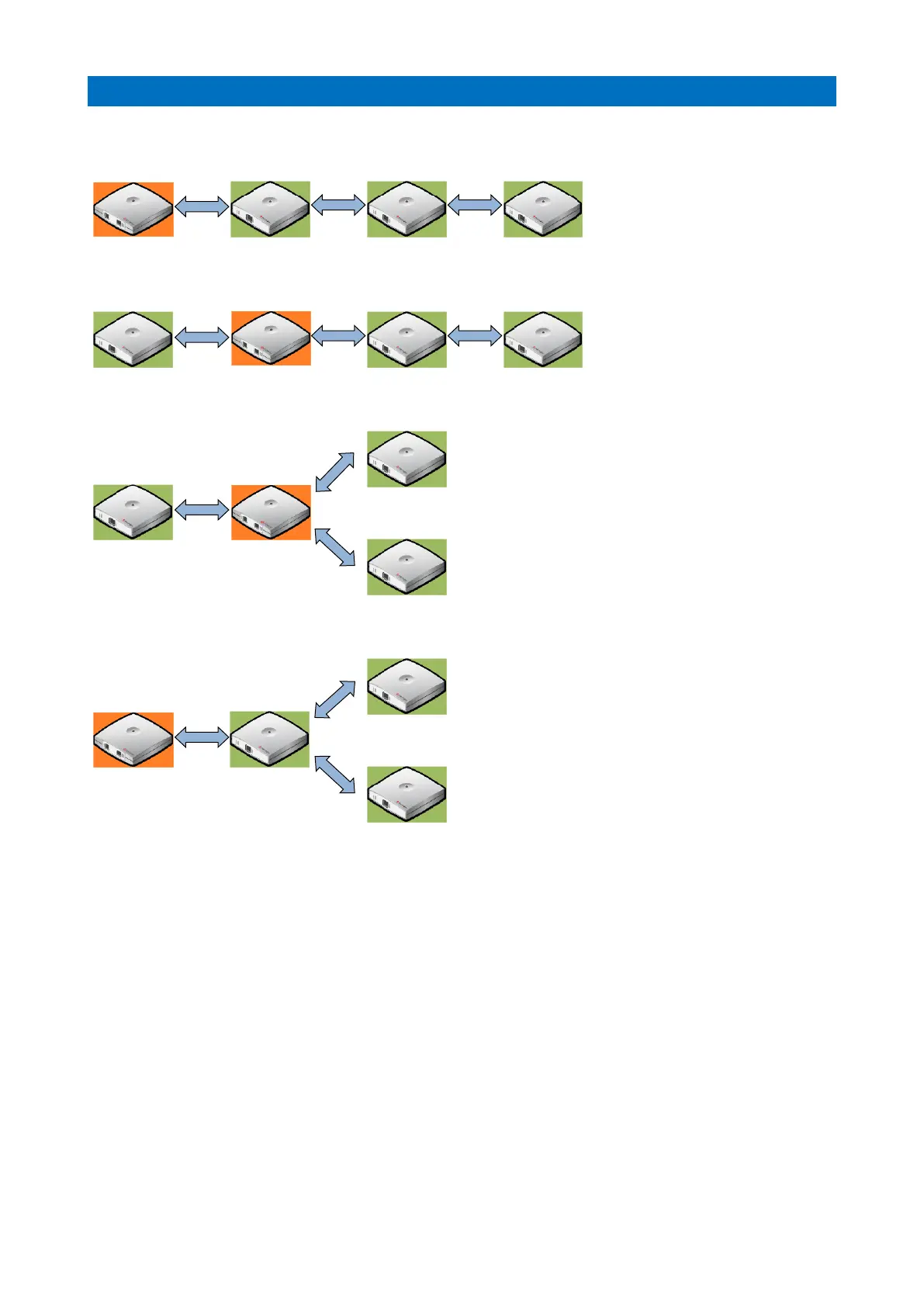

3 REPEATER DEPLOYMENT EXAMPLES
3 Repeaters connected in a chain:
1 Repeater connected directly and 2 in a chain:
3 Repeaters connected directly:
Y-shaped 3 Repeater deployment:
