LEGRAND Tynetec Advent XT2 Installation Manual

Doc No. FM0814 issue 5 Page 9
PIN
No.
Cat5e WIRE
COLOUR
1
White/Orange
2
Orange
3
White/Green
4
Blue
5
White/Blue
6
Green
7
White/Brown
8
Brown
4
5
8
7
3
6
2
1
P10280 TYPE "A"
CUT BOTH RESISTORS OFF PCB
4
5
8
7
3
6
2
1
P10280 TYPE "B"
NO RESISTORS BUT DIFFERENT PIN-OUT

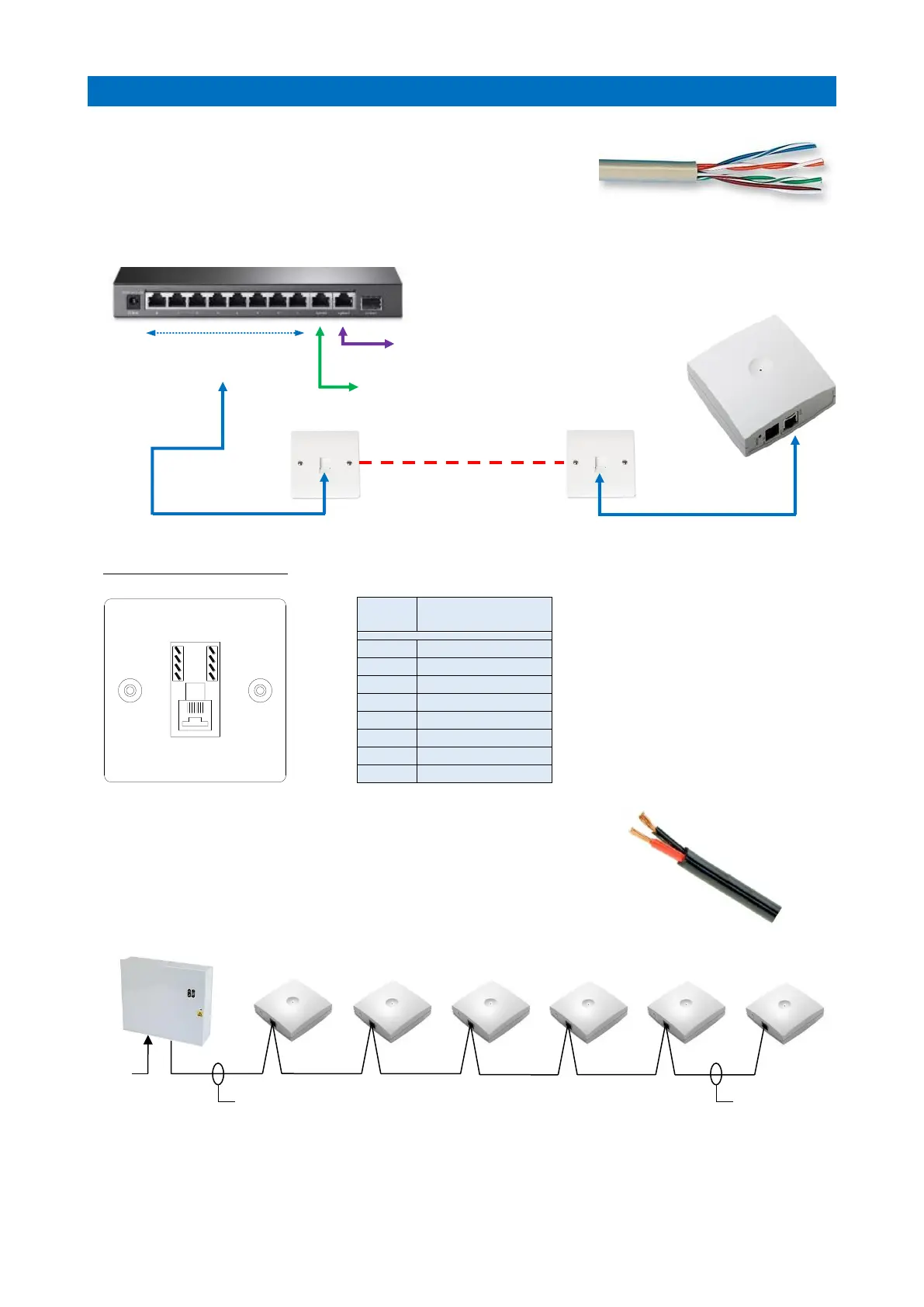

7. SITE WIRING REQUIREMENTS
IP-DECT Servers and Base Stations should be connected to PoE Ports on
a PoE Injector (200 only) or an Ethernet Switch (400 & 6500).
Use Patch Leads or Cat5e Ethernet U/UTP cable
Belden Type: 1583E.00B100 or equivalent, Tynetec Part No. YW1731.
The maximum cable length must not exceed 100 metres. Make all 8 connections.
WALL SOCKET FROM REAR
DECT Repeaters should be connected to the 12V/2A Battery Backed PSU
using 1.0mm Twin cable (or doubled-up pairs of CW1308).
Connect a maximum of 6 Repeaters per PSU, the maximum
cable length must not exceed 100 metres.
DECT Repeaters are supplied with a short RJ11 power lead; YELLOW = 12V & BLACK = 0V.
RJ45 Wall Socket:
Tynetec Part No. P10280
Surface Backbox:
Tynetec Part No. O15090
2m Patch Lead:
Tynetec Part No. W00402
Server 400 or IP-DECT
Base Stations
Max 6 DECT Repeaters per PSU
240V
AC
Use 8 Core Cable
Max 100m
Battery Backed PSU
2m Patch Lead
2m Patch Lead
Cat5e Cable (Max 100m)
Make all 8 connections
10 Port Ethernet Switch (8 PoE)
RJ45 Wall Socket
RJ45 Wall Socket
Use PoE Ports 1-8
for Servers/Base Stations
Use Uplink2 Port to connect Matrix IP-PBX
Use Uplink1 Port to connect additional
Ethernet Switch for more Base Stations
