Group 5 Transport/Start up Page 43
JET2 neo Release R1.07 en

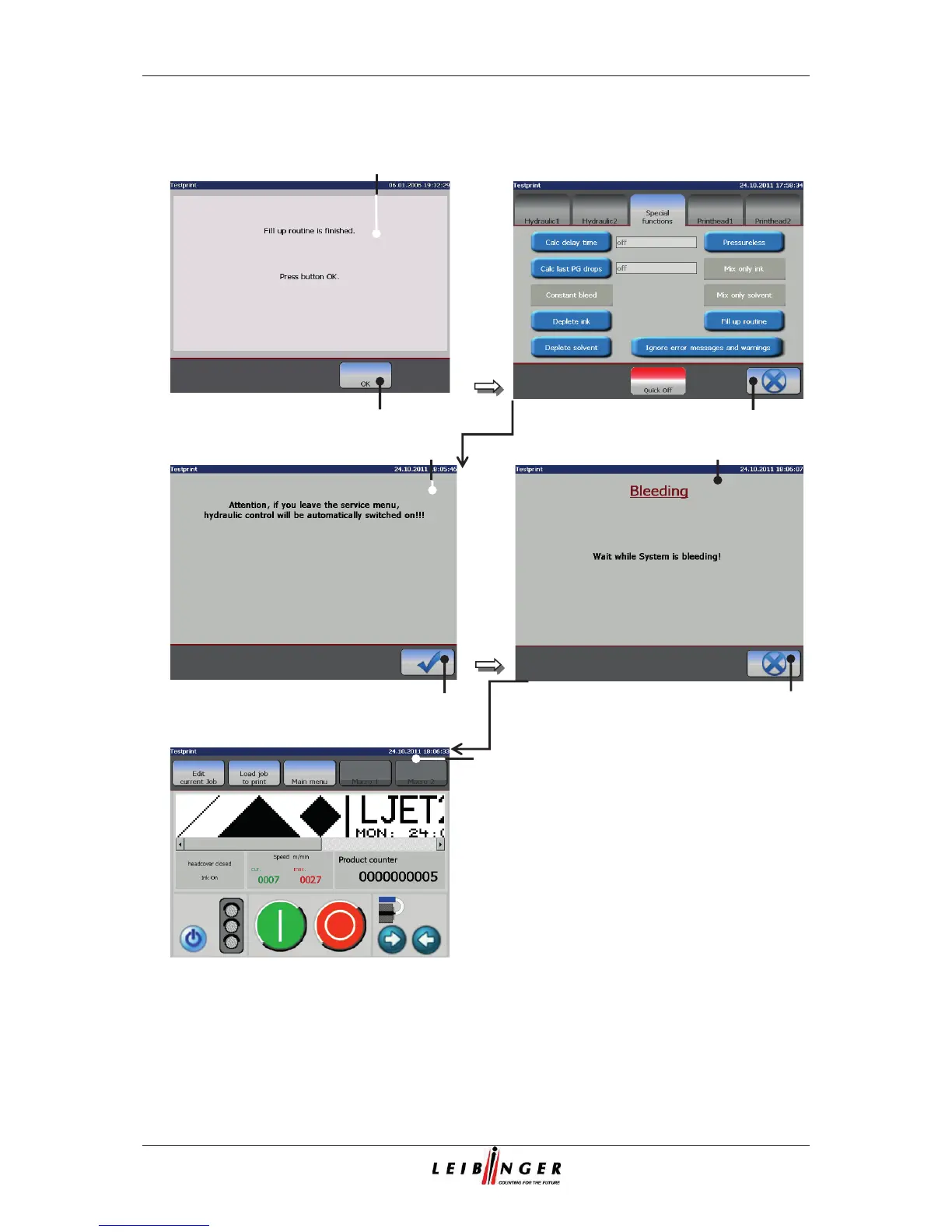

Figure 10
Fill up routine (Step 2)
9 – Message <Fill up routine finished>
13 – Button <OK (3)>
10 – Button <OK (3)>
14 – Message <Bleeding>
11 – Button <Close>
15 – Button <Cancel>
12 – Message <Hydraulic control>
16 – Basic menu
9
14
10
16
15
13
11
12
