5.4303.8558.0 -
Description and Operation 4-5
• VCB.

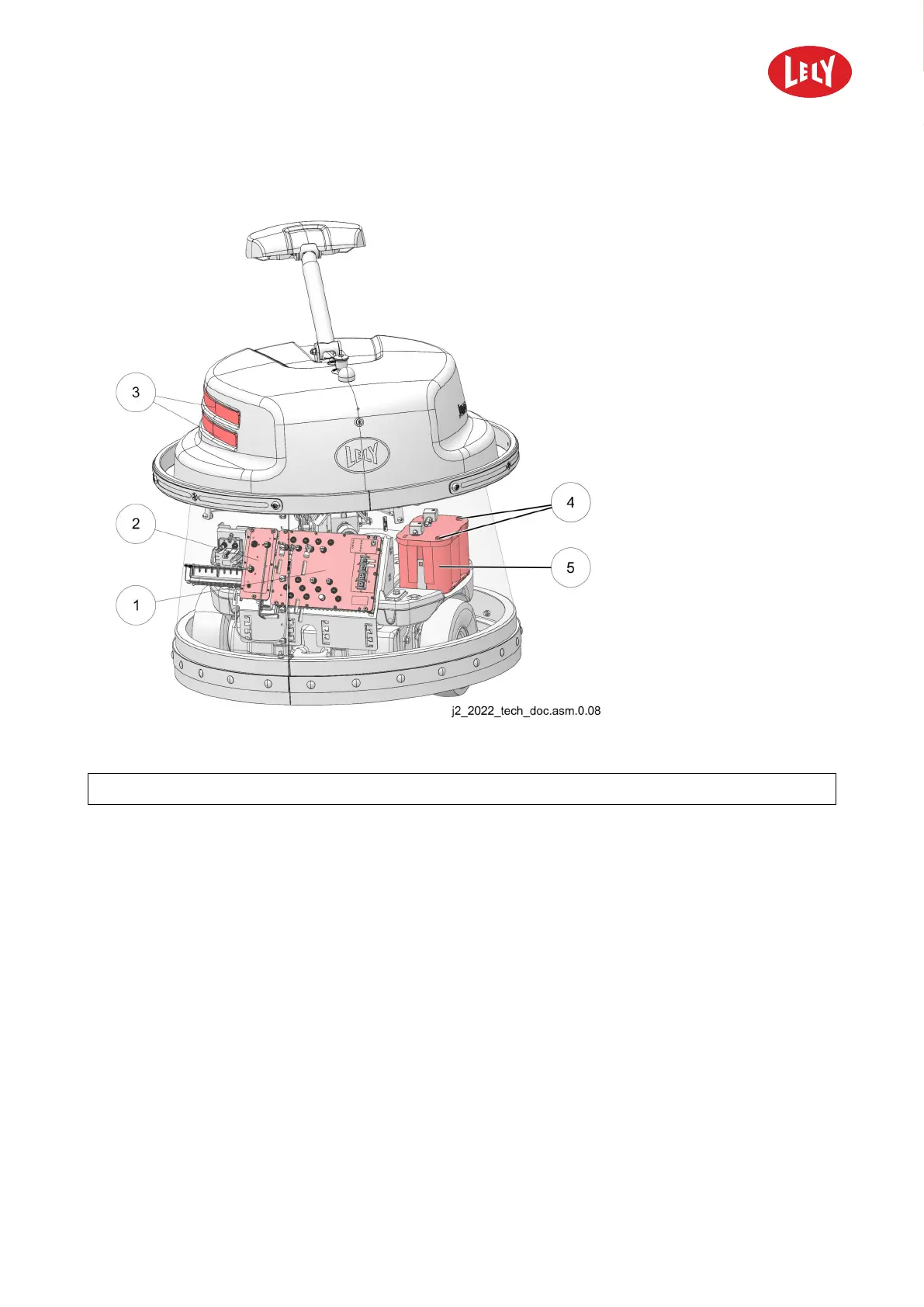

Figure 11. Power system
KEY: 1. VIOB - 2. VCB - 3. Charging strips - 4. Battery vent ports - 5. Battery
4.2.6 Safety System
The machine has a safety system to:
• Protect people and animals against mechanical hazards by a set of safety devices that stop the
machine immediately when hit or opened:
• Emergency stop button.
• Pause button.
• Bumper with bumper witch.
• Warn people and animals by a buzzer.
• Warn people and animals by a LED beacon (optional).
• Ensure that a fault in the hardware or software does not lead to hazardous situations:
• Software controlled charging station.
• Overload protection of the drive motors.
