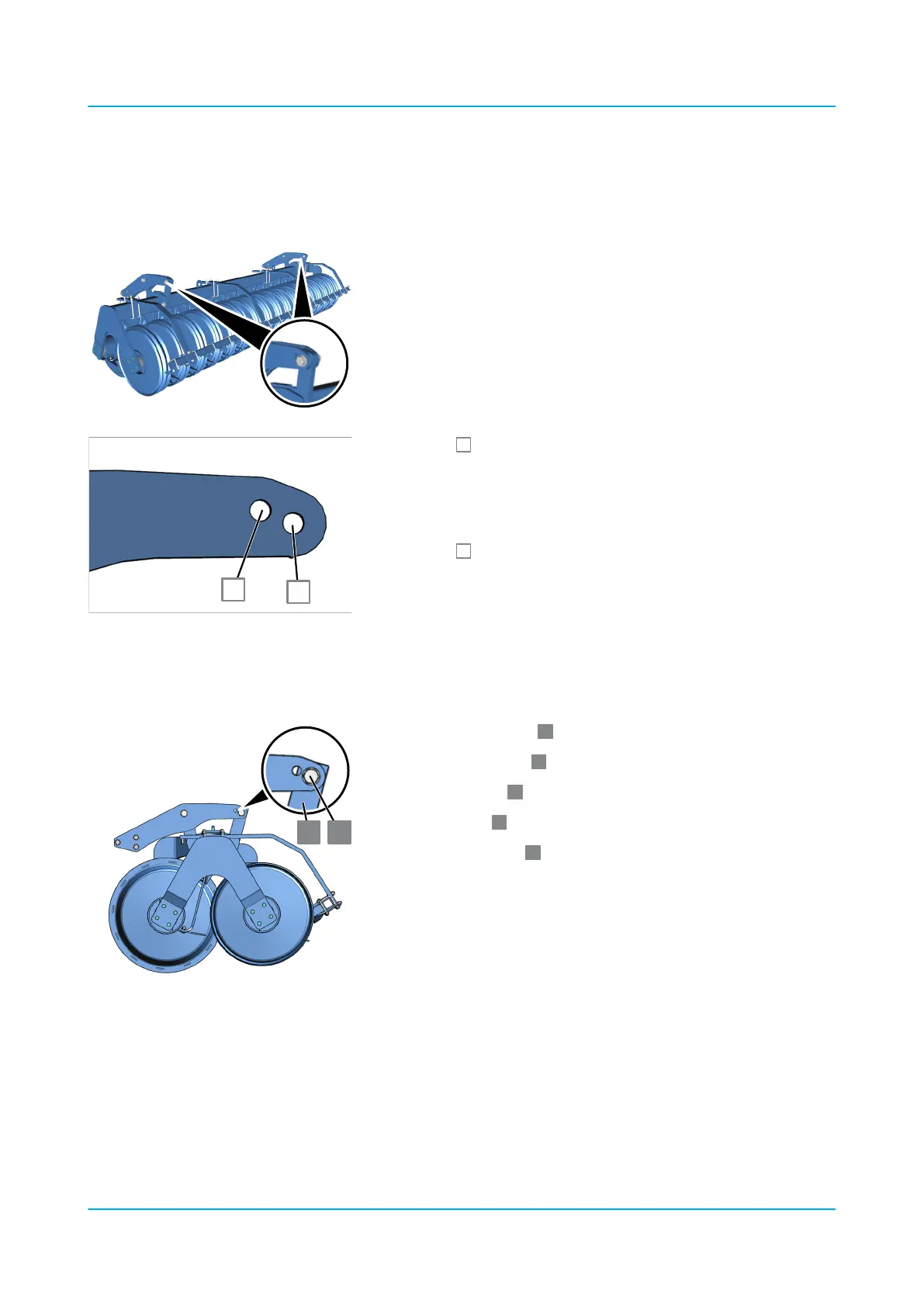

6.2.4.2 Packer prole roller and packer double roller
The pressure load on the packer rollers is changed via the two link
positions of the rollers.
A
Position A
B
Position B
n Position
A
(heavy ground)
– Higher pressure load on the front roller
– Better reconsolidation
If the rollers no longer have sucient drive, select position B.
n Position
B
(light ground)
– Lower pressure load on the front roller
– Less clogging
Changing the link position
1. Place the roller down on a subsoil with sucient bearing capacity
2.
To relieve the screws
3
, lift the machine.
3.
Unscrew the screws
3
on the link.
4.
Position the link
4
until the holes are aligned.
5.
Fit the screws
3
.
6.
Tighten the screws
3
to 200 Nm.
7. Adjust the same position for all the links.
ð
The pressure load of the packer roller has been adjusted.
Pressure load
A
B
34
3
Screw
4
Link
Operation
en-GB | Item no. 17516276 | BA 01/2023-09 58
