WARNING
DO NOT over-tighten mounting screws. Doing so my distort the mag-mount
plastic housing and cause connection issues when installed the HD display.
12. Reinstall access cover.
NOTE: Make sure the Mag-Mount cover is reinstalled correctly to the Mag-Mount
base. The cover must be ush with the base or could cause power or
communication issues.

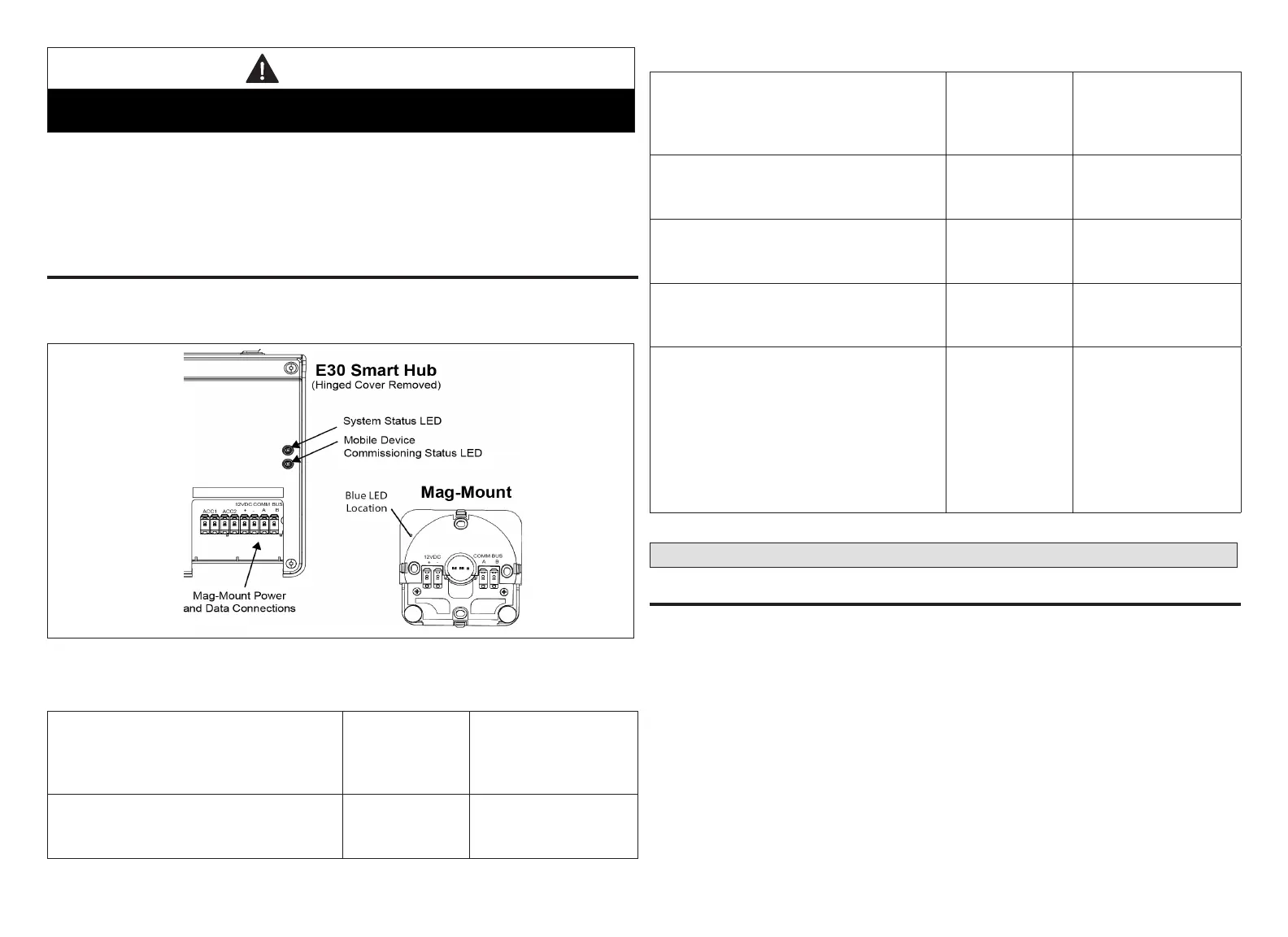

lED inDiCators
1. A blue LED is visible when power is connected to the Mag-Mount and the HD
Display is not installed.
2. The LED has three conditions; steady on, ashing and off. Below is a
troubleshooting guide on Mag-Mount to Smart Hub connections:
Table 7. Communication Error Troubleshooting (Mag-Mount to Smart Hub)
Possible Connection Issues
Mag-Mount
LED Condition
(HD Display
Removed)
E30 Smart Hub -
System Status LED
One communication wire at either the
Mag-Mount or Smart Hub COMM BUS
A or B terminals is disconnected.
Steady Blue
Flashing Magenta
LED
Table 7. Communication Error Troubleshooting (Mag-Mount to Smart Hub)
Possible Connection Issues
Mag-Mount
LED Condition
(HD Display
Removed)
E30 Smart Hub -
System Status LED
Both communication wires – at either
the Mag-Mount or Smart Hub COMM
BUS A or B are disconnected.
Flashing Blue
Flashing Magenta
LED
Both communication wires – at either
the Mag-Mount or Smart Hub COMM
BUS A or B terminals are reversed.
Flashing Blue
Flashing Magenta
LED
Power wires at either the Smart Hub or
Mag-Mount 12VDC + and - terminals
are disconnected.
Off
Flashing Magenta
LED.
If terminals are connected correctly,
then check HD Display mounting to
Mag-Mount. HD Display may not be
secured correctly to Mag-Mount.
LED not
visible when
HD Display is
installed.
Flashing Magenta
LED.
HD Display screen
may be either blank
or a message
indicating iComfort
cannot communicate
with the equipment.
HD Display Components and Installation
installation
NOTE: Do not install HD Display or Mag-Mount on outside walls or in direct sunlight.
1. Hold the HD Display by the edges, line it up with the Mag-Mount, and move the
HD Display toward the Mag-Mount.
2. When the magnets in the Mag-Mount attract the HD Display, guide it toward the
Mag-Mount and let the magnets pull it into place.
3. Lightly press on the sides of the HD Display to make sure it is completely
seated on the Mag-Mount.
4. To remove the HD Display from the Mag-Mount, rotate the HD Display right
or left (clockwise or counter-clockwise) at least 30 degrees to disengage the
plastic hooks and then pull it straight off of the Mag-Mount.
