Lennox iComfort E30

28

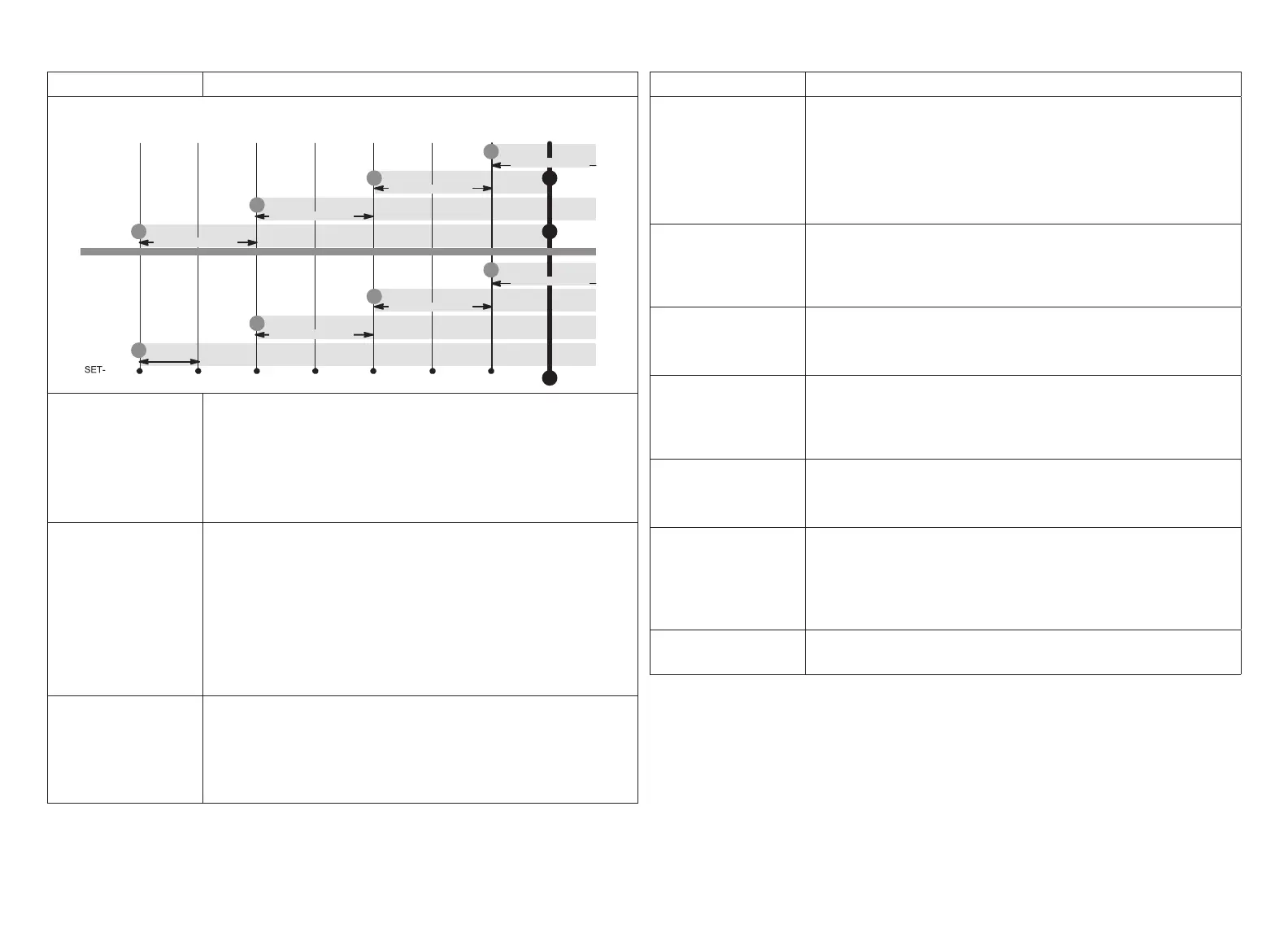

Smart Hub Parameters
Parameter Description
Stg4 Diff.
H/C
Stages
Locked =
Enabled
H/C
Stages
Locked =
Disabled
3rd stage
ON
1st stage
ON
2nd stage
ON
4th stage
ON
3rd stage
ON
1st stage
ON
2nd stage
ON
4th stage
ON
Stg4 Differential
2nd
stage
OFF
4th
stage
OFF
5.0- PS0.1- PS5.1- PS:STNIOP SP S
P
SP -2.0
Stg1 Differential
Stg3 Differential
Stg2 Differential
SP -2.5SP -3.0SP -3.5
Stg1 Differential
Stg3 Differential
Stg2 Differential
Heating - Dual Fuel - 4 Stage (2 compressor / 2 backup)
Group ID
Default Group ID is 1. Valid range is 0 to 9.
Multiple Smart Hubs in a home can be assigned to a group (up to nine
groups with up to eight Smart Hubs in each group). All Smart Hubs in a
group can communicate with other Smart Hubs in the same group over
the home Wi-Fi network.
If a Smart Hub is set to Group ID 0, there will be no connectivity with
another Smart Hub.
Humiditrol
Comfort Adjust
Options are Maximum Overcooling, Midpoint Overcooling and Minimum
Overcooling. Default is Maximum Overcooling.
Maximum Overcooling: Indoor temperature > (greater than) two degrees
above heating setpoint.
Midpoint Overcooling: Indoor temperature > (greater than) HEAT setpoint
+ COOL setpoint / 2.
Minimum Overcooling: Indoor temperature > (greater than) two degrees
below cooling setpoint.
XP20 and XP25 is not compatible with Humiditrol (EDA).
Humidity Reading
Calibration
Range is -10.0 to 10.0%. Default is 0.0%.
If it is determine that the actual humidity percentage being
detected at the thermostat is off based on independent
readings using other humidity reading devices, the display
can be adjusted using this setting.
Smart Hub Parameters
Parameter Description
Lock In 2nd Stage
HP by Outdoor
Temp
(Lennox Two-
Stage Heat Pumps
Only)
This accessory allows the unit to lock in 2nd stage HP
heating when the outdoor temperature goes below the
jumper pin setting.
Options are off, 40°F, 45°F, 50°F and 55°F (4°C, 7°C,
10°C and 13°C). Default is off.
Max Heat Setpoint
The highest temperature setting that the heat set point
can be set on the thermostat. Default is 90.0F (32.33°C).
Range is 60.0 to 90.0°F (15.56 to 32.22°C). Adjustable in
increments of 1°F (0.56°C).
Max
Humidication
Setpoint
Maximum allowed set point for humidication.
Range is 15 to 45%. Default is 45%. Adjustments are in
increments of 1%.
Min Cool Setpoint
The lowest temperature setting that the cool set point
can be set on the thermostat. Range is Range is 60.0
to 90.0°F (15.56 to 32.22°C). Default is 60°F (15.56°C).
Adjustments are in increments of 1°F (0.56°C).
Min
Dehumidication
Setpoint
Adjustable minimum dehumidication setting.
Range is 40 to 60%. Default is 40%. Adjustments are in
increments of 1%.
Outdoor
Temperature
Reading
Calibration
Range is -10 to 10°F (-5.56 to 5.56°C). Default is 0°F
(0.0°C). Adjustments are in increments of 1°F. (0.56°C)
This will allow for adjustment to the outdoor temperature
display when the display temperature is off. Outdoor
sensor is required.
Reset Smart Hub
Reset Smart Hub (erases Smart Hub settings and restarts
installer setup).
