icomfort Touch 7−Day Programmable Communicating Thermostat
Page 3
icomfort Touch Thermostat − Technical Description and Features
The 24VAC icomfort Touch thermostat (figure 2) is an elec-
tronic communicating, color display touchscreen, 7−day pro-
grammable thermostat. It stores system parameters and set-
tings in a nonvolatile memory (i.e., it retains data when
electrical power fails or is turned off).
Thermostat
connections
RSBus
Minimum wire size is
18 gauge
icomfort−Enabled Furnace Control
icomfort−Enabled Air Handler Control
icomfort−Enabled Outdoor Unit Control
External Sensors − outdoor temperature, discharge air
Humidify Control
Dehumidify Control
R i+ i− C
Maximum total length of all
connections on the RSBus is
limited to 1500ft.
Note:
icomfortt
thermostat
does not
require
shielded
cable wiring
RED
YELLOW
WHITE
GREEN

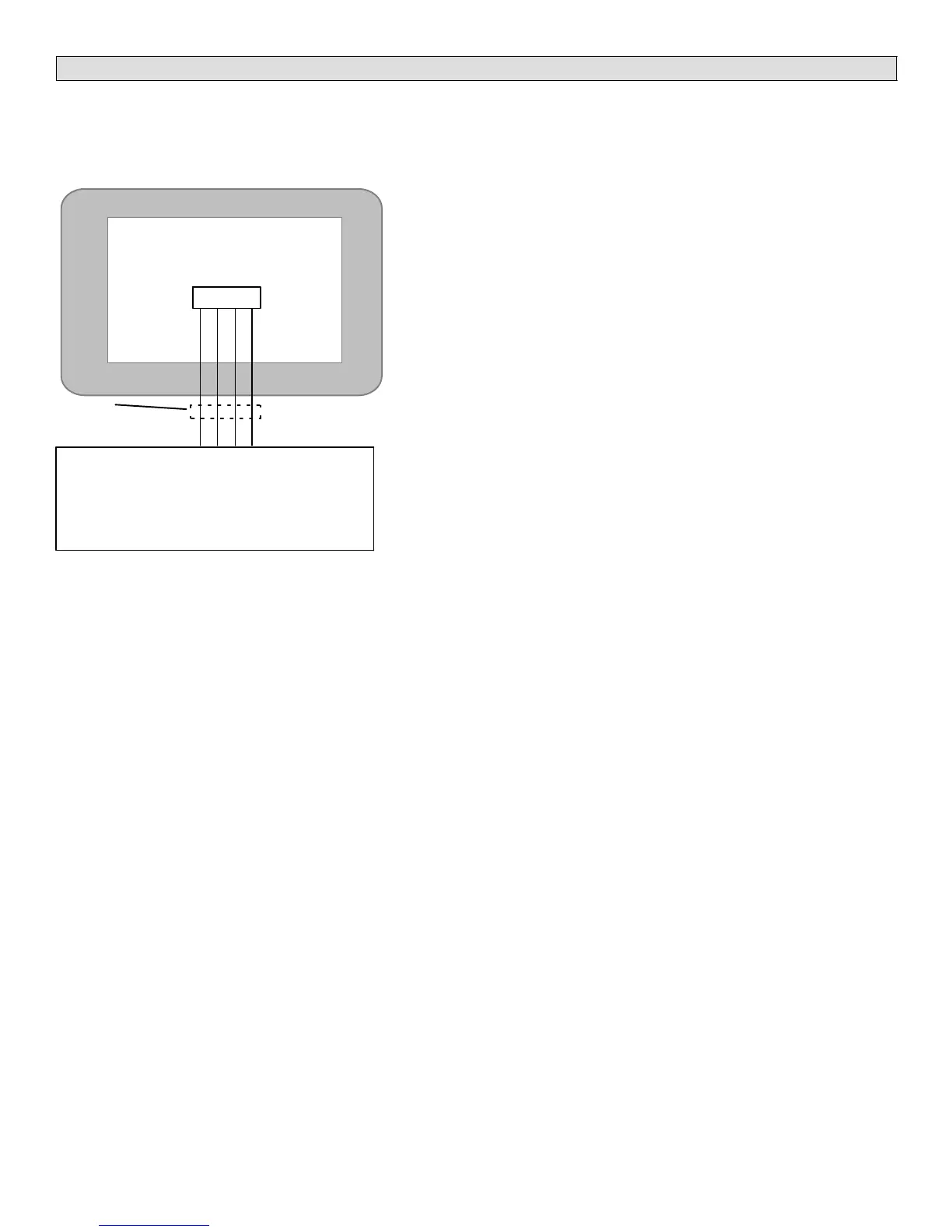

Figure 2. icomfort by Lennox system
The thermostat also:
includes on-board help screens,
supports heat pumps or air conditioning units, with up to
four stages of heat / two stages of compressor operation.
(Two stages of heat pump heating and two stages of aux-
iliary back−up heat are provided. Also, two stages of
emergency heat are provided),
supports Indoor Air Quality with time-based notification
of consumables including media filters, UVC bulbs, hu-
midifier pads, and PureAir system catalyst service / re-
placement,
supports variable−capacity / multi−stage heat/cool, uni-
versal compatibility (gas/electric/heat pump/ac), and is
dual fuel capable (icomfort−enabled HP only) with two
balance points.
Important
Connections to non−communicating outdoor units and all ac-
cessories are described in the Quick−Start Installation guide.
(Wiring diagrams are also shown beginning on Page 34.)
Supports
Humidification Measurement and Control,
Dew Point Adjustment Control
Dehumidification Measurement and Control
Humiditrol
®
Enhanced Dehumidification Accessory
(EDA)
Multi-Stage HVAC Systems
Equipment Maintenance Reminders
On-Board Help Screens
Autochangeover Mode −− Permits control of heating,
cooling, humidification, and dehumidification without
user involvement.
Outdoor Temperature Sensor
Communicating outdoor units contain a built−in outdoor tem-
perature sensor.
