13

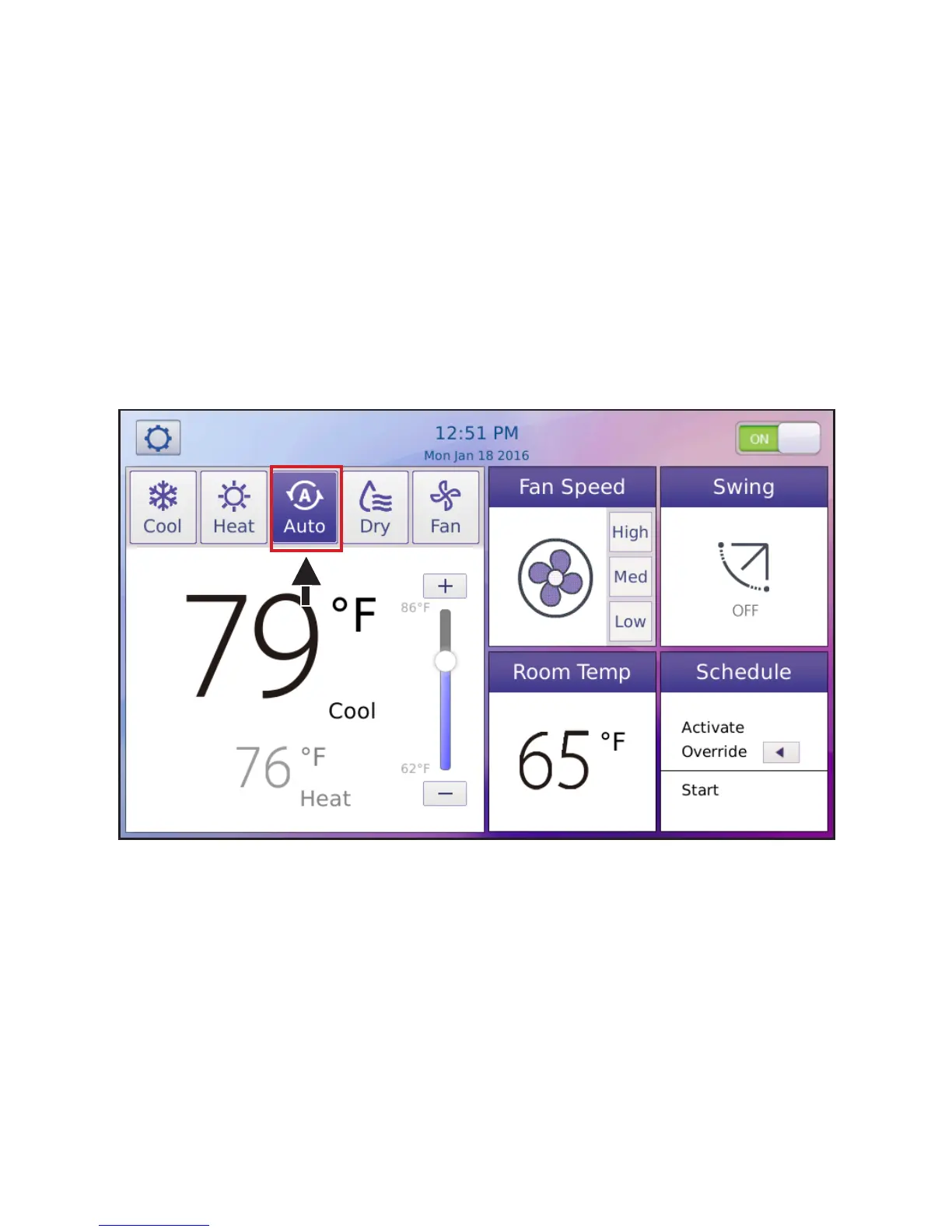

Figure 12. Auto Mode Operation
Auto Mode Operation. Only available on heat recovery systems. Tap the Auto button to start auto
mode operation. The indoor unit will provide cooling or heating operation as determined by the
room temperature and the setpoint settings. The setpoint range is 62°F to 86°F (17°C to 30°C). The
cooling setpoint must be ≥3° higher than the heating setpoint.
NOTE - During Auto mode, both operation mode (cooling or heating) setpoints display on the Home
screen. The current operation mode setpoint displays larger than the non-current operation
mode.
To adjust the setpoint of either cooling or heating while in Auto mode, tap the appropriate setpoint,
either cooling or heating. That setpoint will display as the larger number. Drag the temperature
slider to the new setpoint temperature. If the setpoint you adjusted is not the current operation
mode, after 10 seconds, the current operation mode setpoint will display as the larger number.
NOTE - A three degree setpoint deadband between cooling and heating setpoints is built in to the
controller.
