64
HHE Relay Four Dry-Contact Status
View the HHE Relay four dry-contact status for each indoor unit connected to the controller
.
1.
T
ap the Menu button on the Home screen.
2.
T
ap the Service button and then enter your password.
3.
T
ap the
Advanced Information button.
4.
T
ap the Dry Contacts button.
5.
T
ap the up and down arrows to switch between connected indoor units and view the dry-
contact status of each indoor unit.

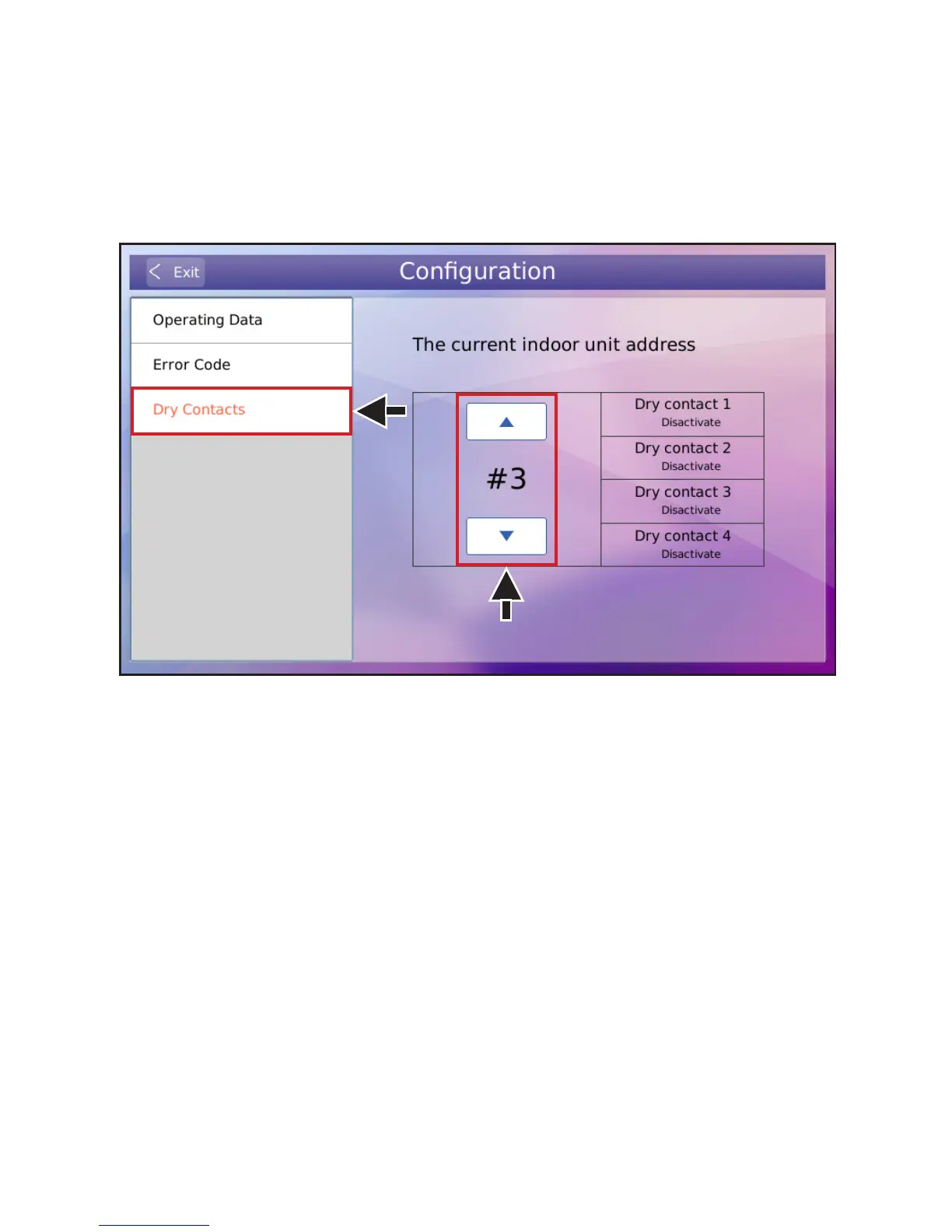

Figure 69. View HHE Relay Four Dry-Contact Status
