Lenovo ThinkPad Edge E545 - 1130 Microprocessor

5
4
6

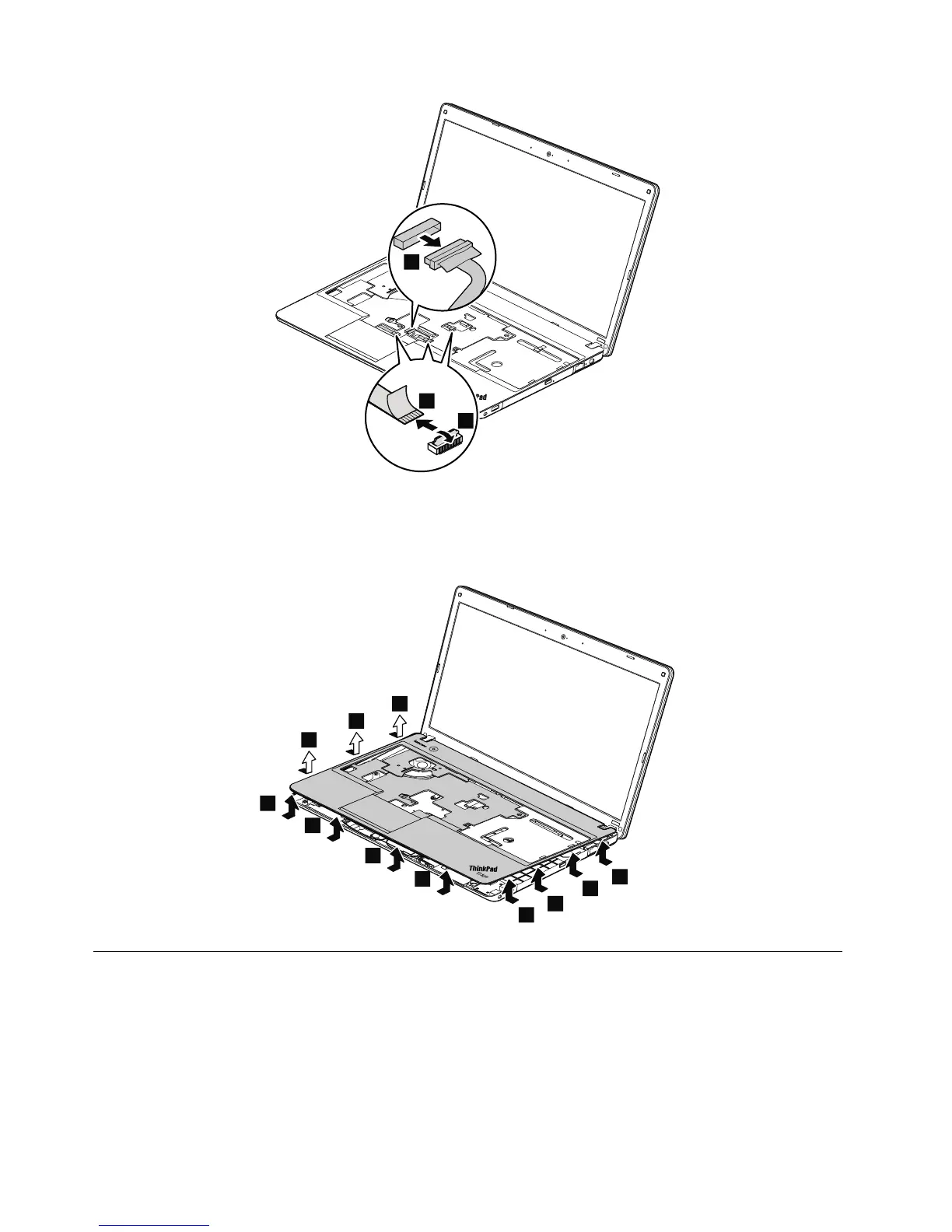

Wheninstalling:Makesurethattheconnectorsareattachedrmlytothesystemboard.
Releasethekeyboardbezelfromtheframeusingaplasticprytoolandthencompletelyremovethekeyboard
bezel.
7
7
7
7
7
7
7
7
7
7
7
1130Microprocessor
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage62
•“1020Largebottomcover”onpage62
•“1090Thermalfan”onpage70
•“1100Thermalpipes”onpage71
Attention:Themicroprocessorisextremelysensitive.Whenyouservicethemicroprocessor,avoidany
kindofroughhandling.
78HardwareMaintenanceManual
