Lenovo ThinkPad Edge E545 Service Manual

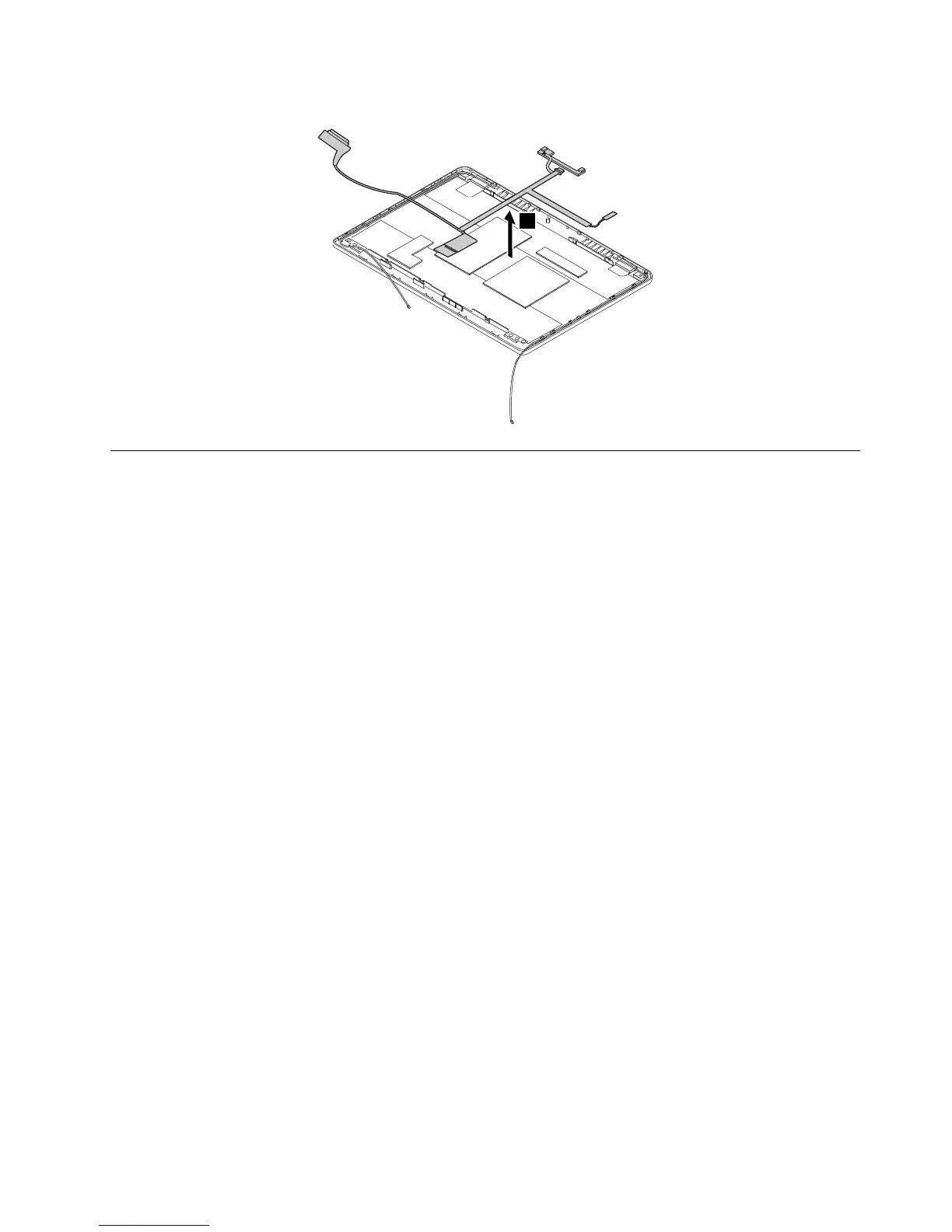

RemovalstepsoftheLCDcableswithdualmicrophones
1
2040WirelessantennaassemblyandLCDrearcoverassembly
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage62
•“1020Largebottomcover”onpage62
•“1030Smallbottomcover”onpage63
•“1040Opticaldriveorblankbezel”onpage64
•“1070PCIExpressMiniCardforwirelessLANandbracket”onpage68
•“1110Keyboard”onpage73
•“1120Keyboardbezel”onpage76
•“1190RJ45subcard”onpage87
•“1210LCDunit”onpage90
•“2010LCDbezelassembly”onpage96
•“2020LCDpanelandhinges”onpage97
•“2030CameraandLCDcableswithdualmicrophones”onpage99
Chapter9.RemovingorreplacingaFRU101

Lenovo ThinkPad Edge E545 Specifications

General

OS	windows 7 professional
Software	microsoft office, evernote, kindle and more
Numeric Keypad	no
Touch Screen	no
Screen Type	other
Screen Size	15.6 inches
Screen Resolution	1366 x 768 (hd)
Processor Brand	amd
Processor Model	amd a8-series
Type of Memory	ddr3
System Memory	4 gigabytes
System Memory Expansion	4 gigabytes
Audio Type	dolby enhanced audio v2
Speakers Type	stereo
Backlit Keyboard	no
Card Reader	yes
Touchpad	none
Battery Type	lithium-ion

Weight and Dimensions

Depth	9.64 inches
Height	1.12 inches
Width	14.84 inches
