Lenovo ThinkPad T430 - Page 107

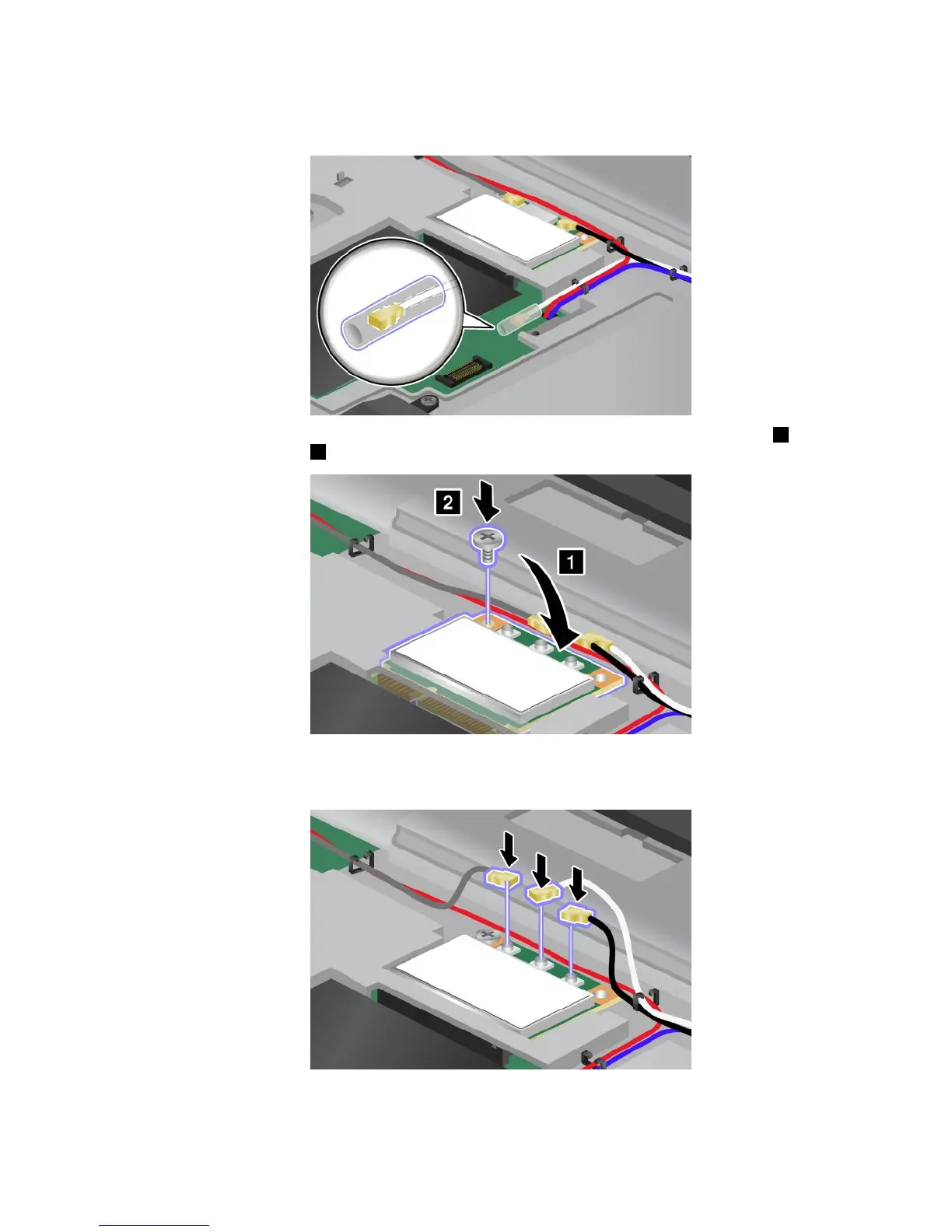

Note:IfthenewPCIExpressMiniCardhastwoconnectors,asinthenextdrawing,putthewhitecable
inthecableprotectiontube.
9.Pivotthecarduntilyoucansnapitintoplacebypressingtheuppersideoftheconnectors1.Secure
thecardwiththescrew2.
10.ConnectthecablestothenewPCIExpressMiniCard.Besuretoattachthegraycabletotheconnector
marked“TR1”onthecard,thewhitecabletotheconnectormarked“RO”or“TR3”(center),andthe
blackcabletotheconnectormarked“TR2”.
11.Reinstallthekeyboard.See“Replacingthekeyboard”onpage78.
12.Reinstallthebattery.See“Replacingthebattery”onpage71.
Chapter6.Replacingdevices91
