4.Pressthereleasetab1asshownandpivotthedrivebayassemblyupward.

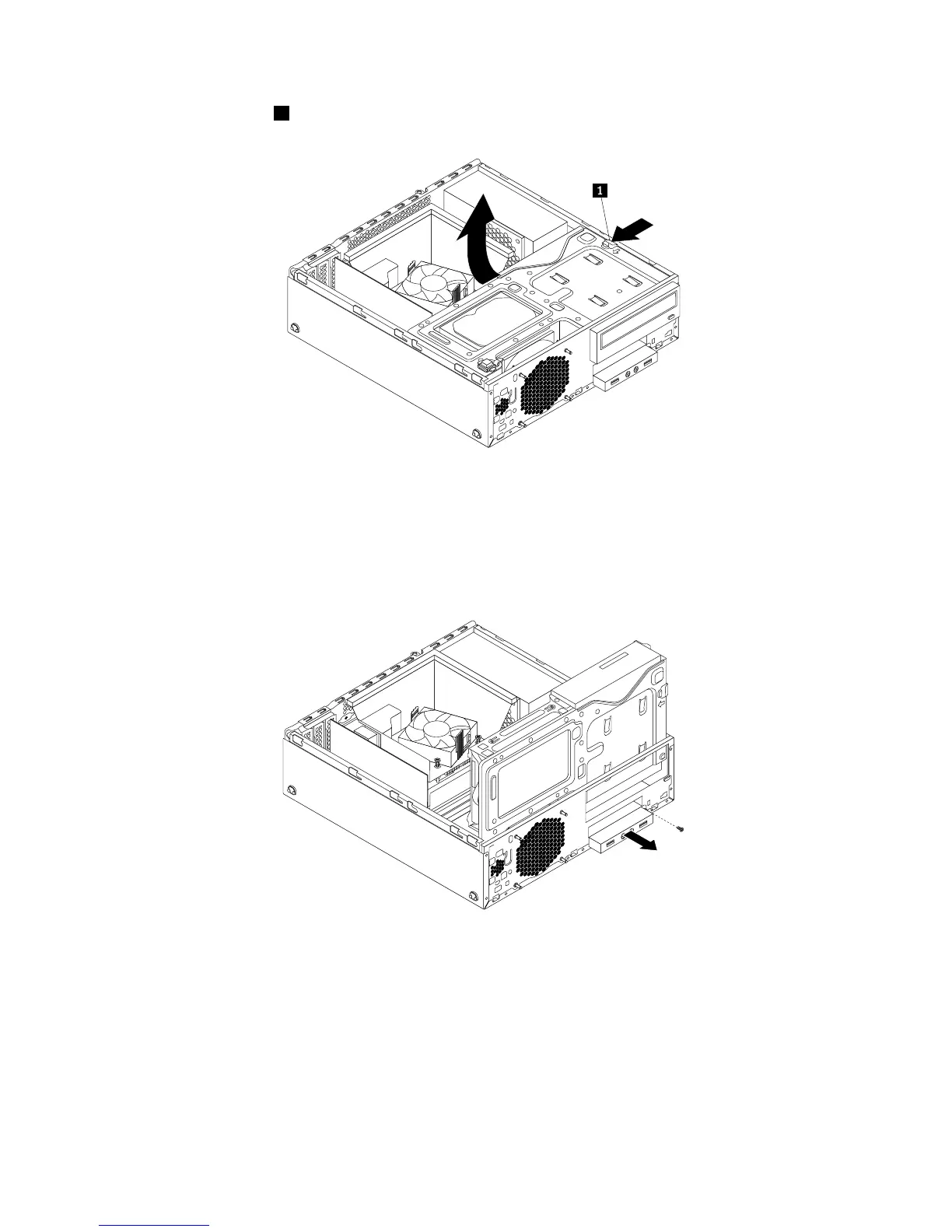

Figure79.Pivotingthedrivebayassemblyupward
5.DisconnectthefrontaudioandUSBassemblycablesfromthesystemboardandnotethecables
routing.See“Locatingpartsonthesystemboard”onpage12.
6.RemovethescrewthatsecuresthefrontaudioandUSBassemblybracket.Thenremovethefront
audioandUSBassemblybracketfromthechassis.
Figure80.RemovingthefrontaudioandUSBassembly
7.RemovethetwoscrewsthatsecurethefrontaudioandUSBassemblytoitsbracket.Thenremovethe
failingfrontaudioandUSBassemblyfromthebracket.
8.InstallanewfrontaudioandUSBassemblyintothebracketandinstallthetwoscrewstosecurethe
frontaudioandUSBassemblytothebracket.
9.InstallthefrontaudioandUSBassemblybrackettothechassisandalignthescrewholeinthebracket
withthecorrespondingholeinthechassis.
10.InstallthescrewtosecurethefrontaudioandUSBassemblybrackettothechassis.
76ThinkStationE32UserGuide
