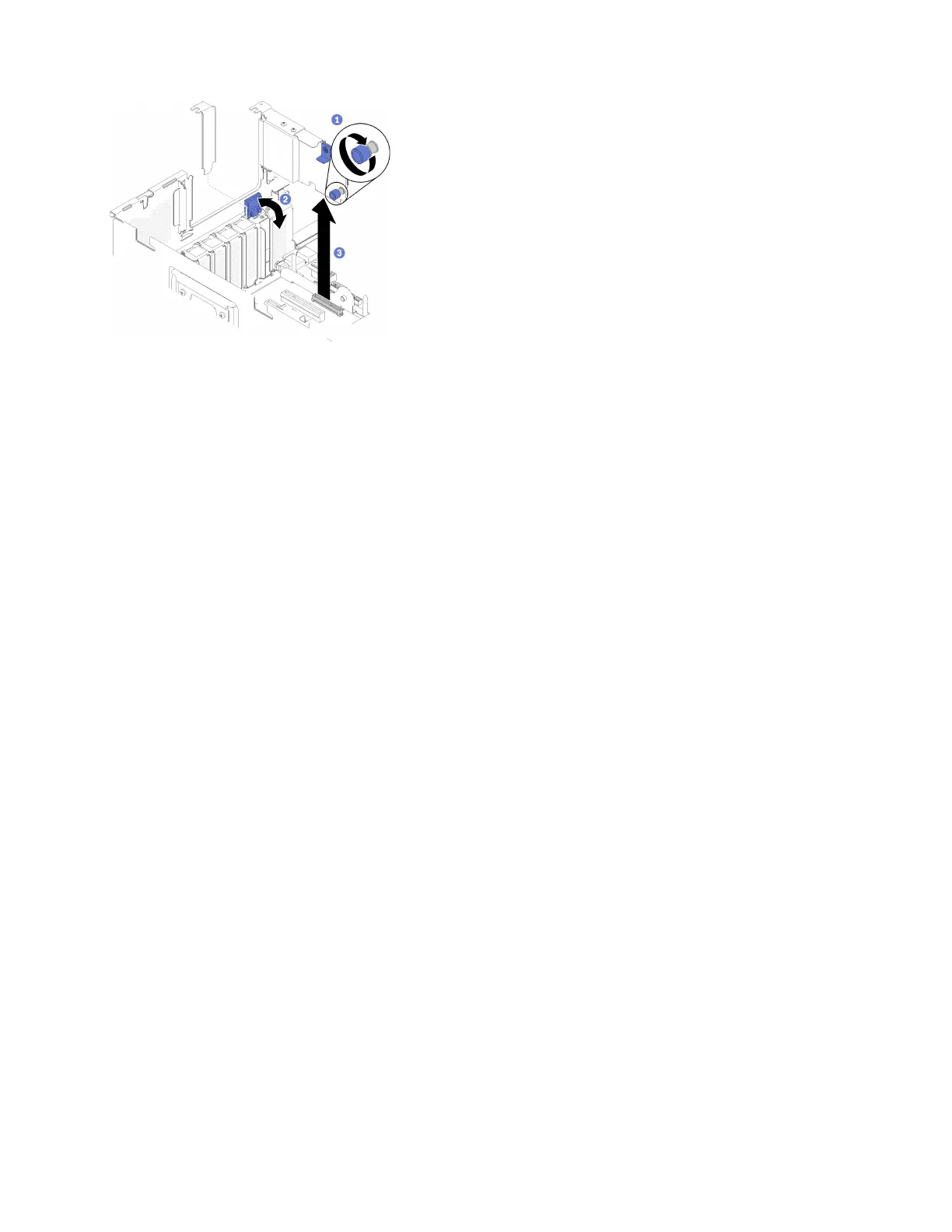

Figure 69. LOM adapter removal
Step 1. Loosen the captive thumbscrew.
Step 2. Open the retention latch.
Step 3. Carefully grasp the adapter and pull it out from the connector.
Step 4. Close the retention latch.
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the LOM adapter
Use this procedure to install the LOM adapter.
Note: When both LOM adapter and ML2 adapter are installed to the server, the system can support up to
two additional network adapters.
Before installing the LOM adapter:
1. Read the safety information and installation guidelines (see “Safety” on page iii and “Installation
Guidelines” on page 59).
2. Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
3. Make sure the LOM adapter to be installed supports the bandwidth of the network environment.
Following are the requirements:
• 1GbE LOM adapter: maximal bandwidth of network environment is 1GB.
• 10GbE LOM adapter: minimal bandwidth of network environment is 1GB.
4. Attach the mounting bracket with the two screws as illustrated.
Chapter 3. Hardware replacement procedures 81
