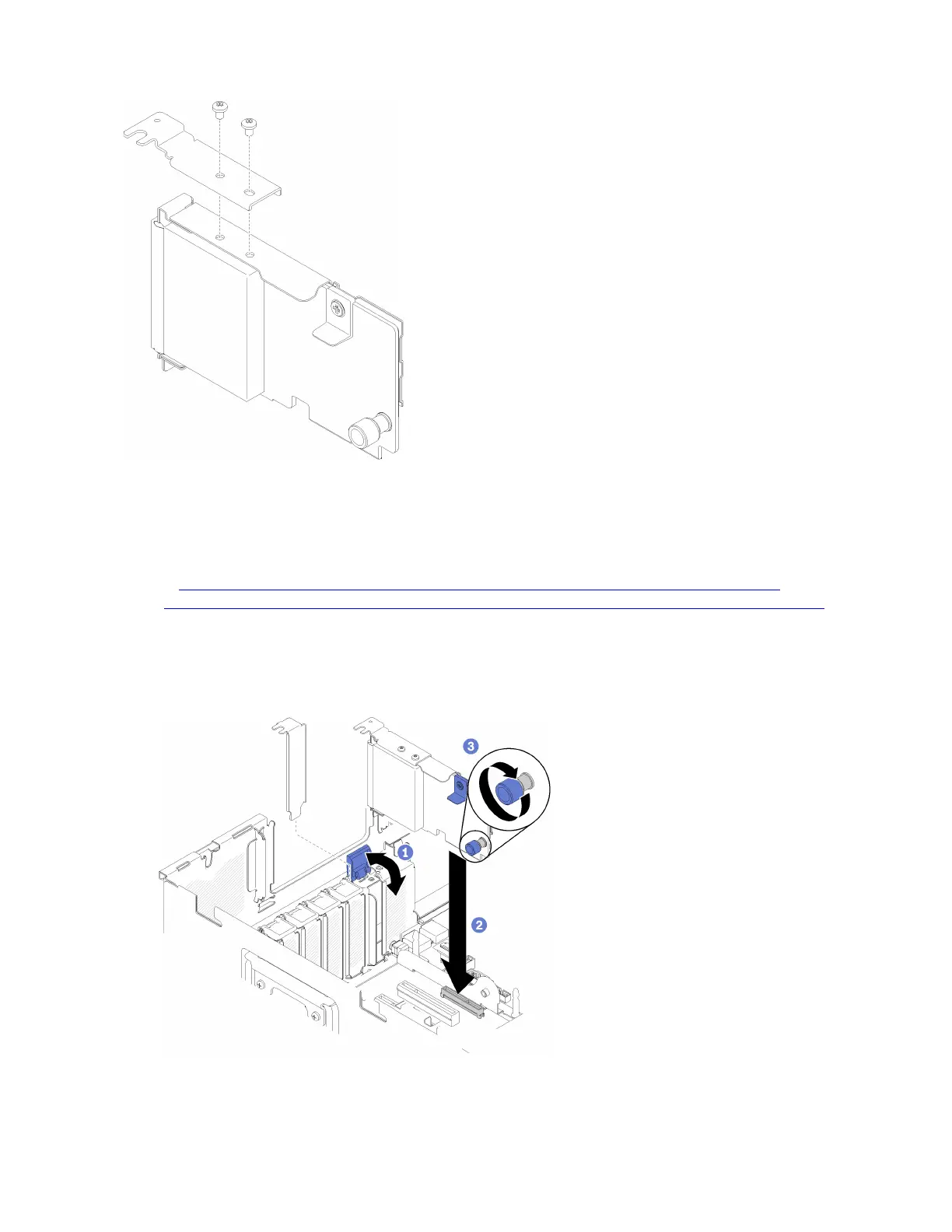

Figure 70. LOM adapter assembly
To install the LOM adapter, complete the following steps:
Watch the procedure. A video of the process is available:
• Youtube:
https://www.youtube.com/watch?v=pIb0bIyfkDY&=PLYV5R7hVcs-Ak9fT8QAx8fLbEivizjRtp
• Youku: http://v.youku.com/v_show/id_XMzMyODU3NTY2NA==.html?spm=a2hzp.8253876.0.0&f=51276390
Step 1. Open the retention latch.
Step 2. Align the LOM adapter to the connector, and push it in.
Step 3. Tighten the captive thumbscrew to lock it to the connector.
Figure 71. LOM adapter installation
Step 4. Close the retention latch.
82
ThinkSystem SR860 Maintenance Manual
