Eight 3.5-inch hot-swap drives
Use this section to understand the cable routing for server models with eight 3.5-inch hot-swap drives.
• “Software RAID” on page 51
• “One 8i RAID adapter” on page 52

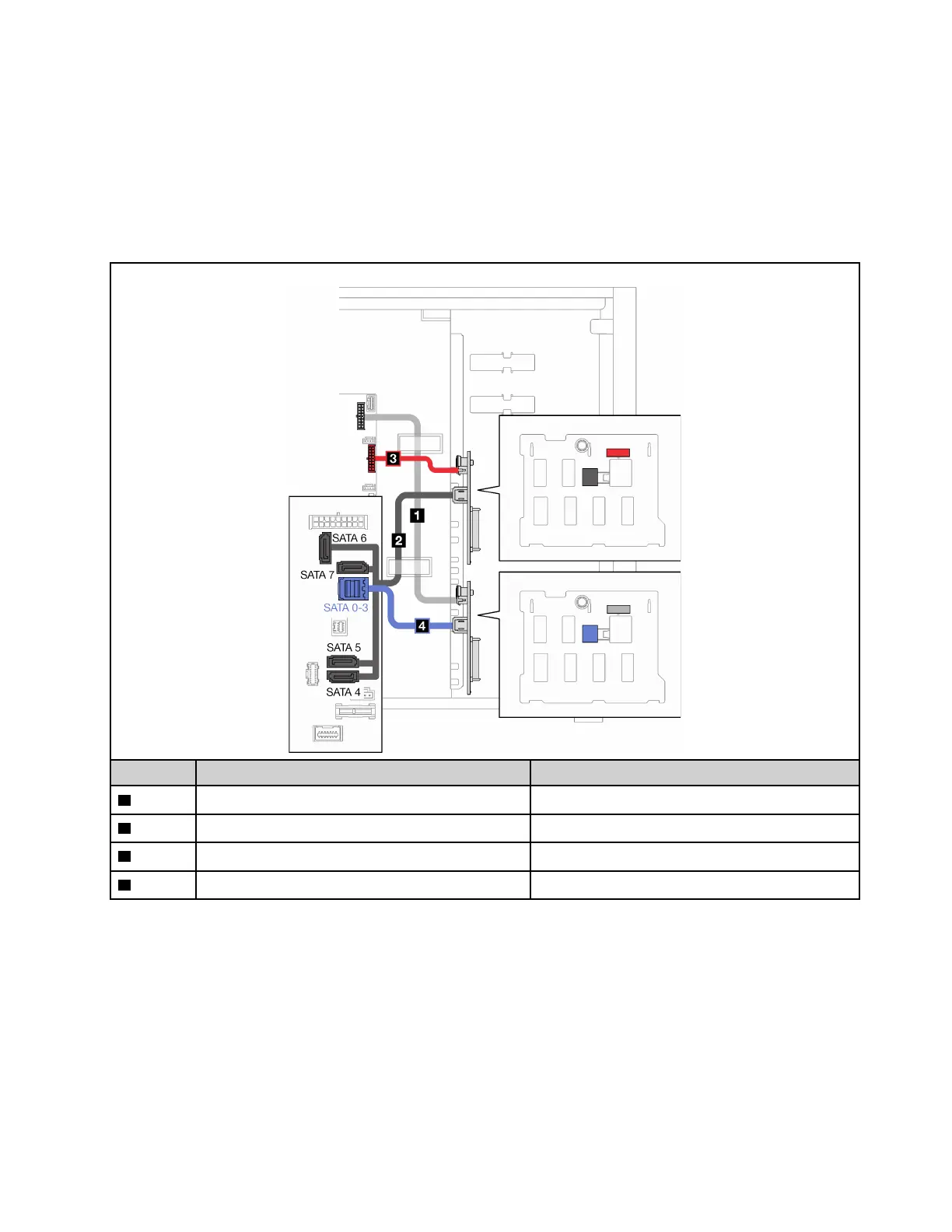

Software RAID
From To
1
Lower backplane power connector Backplane 1 power connector
2
Upper backplane SAS/SATA connector SATA 4, 5, 6, 7
3
Upper backplane power connector Backplane 2 power connector
4
Lower backplane SAS/SATA connector SATA 0-3
Chapter 2. Server components 51
