b. Locate the hole in the plastic holder to install the retention latch. Align the pin a with the
corresponding hole
b in the plastic holder. Then press the retention latch downward into the hole
until it snaps into position.

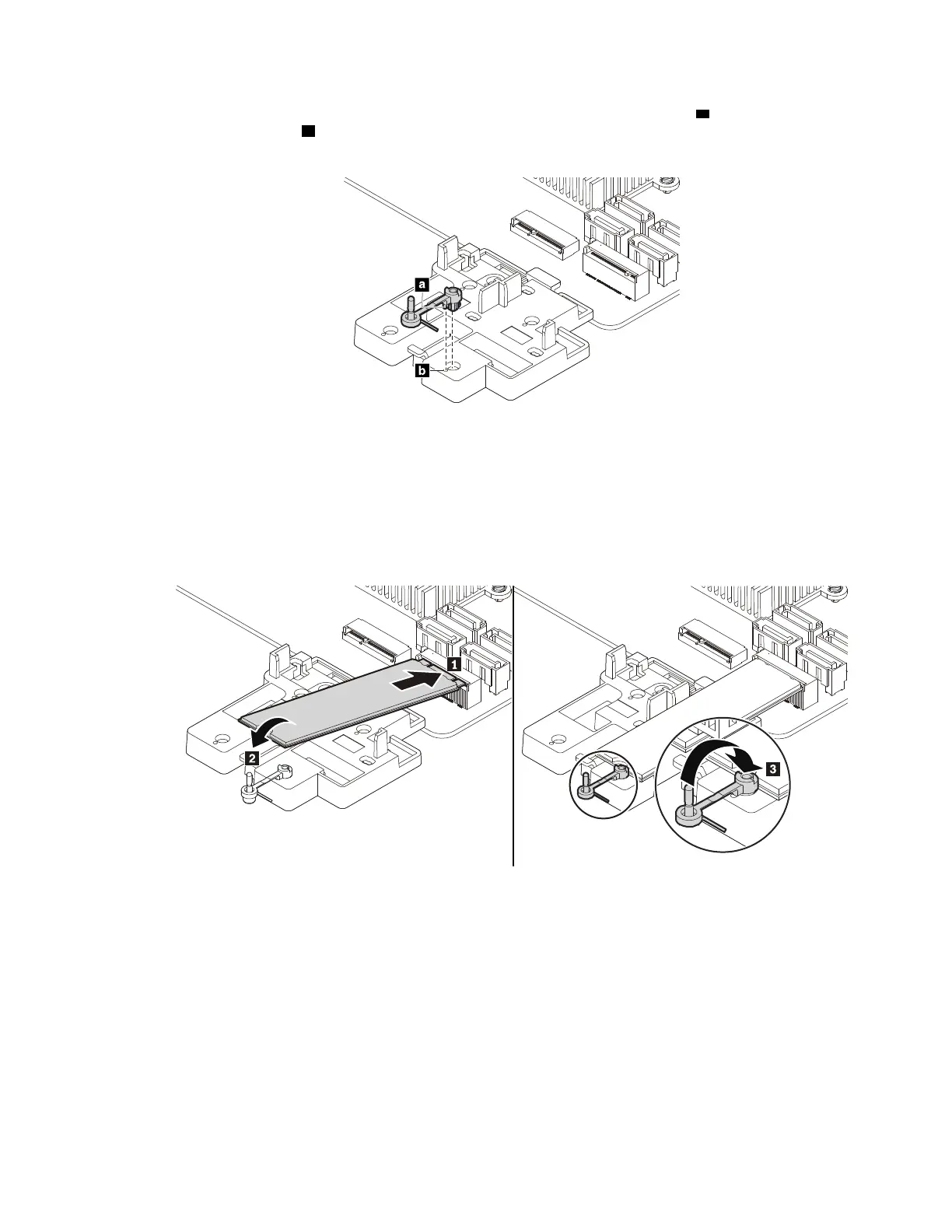

Figure 38. Installing the retention latch
c. Hold the new M.2 solid-state drive by its edges and ensure that the circuit board side is facing
upward. Align the contact edge of the new drive with the key in the corresponding slot. Then carefully
insert the new drive into the slot at an angle of about 20 degrees and pivot the new drive downward.
Insert the plug of the retention latch into the hole to secure the new drive.
Note: Do not touch the circuit board of the M.2 solid-state drive.
Figure 39. Installing the M.2 solid-state drive
Chapter 9. Hardware removal and installation 111
