a. Note the orientation of the connector on the new storage drive. Then, flex both sides of the adapter
and align the four pins
1 with the corresponding holes in the storage drive.
Note: Do not touch the circuit board (if accessible) of the 2.5-inch storage drive.

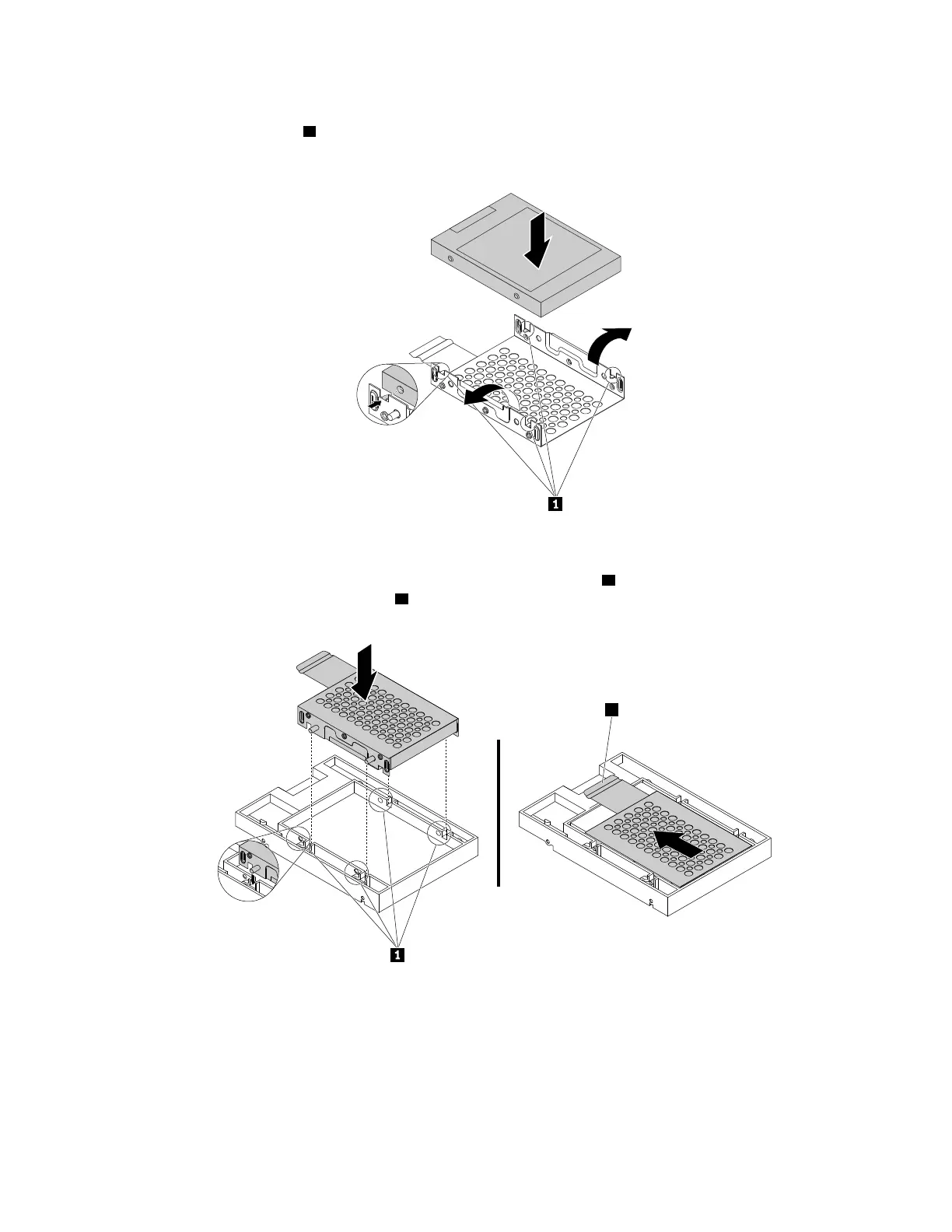

Figure 65. Installing the storage drive into the adapter
b. Align the four tabs on the adapter with the corresponding notches 1 in the converter. Then, slide the
storage drive as shown until the tab
2 snaps into position. The adapter with the storage drive is
installed into the converter.
Figure 66. Installing the adapter into the converter
124 P330 Hardware Maintenance Manual
