Diagnostics
LED status displays
79
Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 2.0 - 10/2013
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

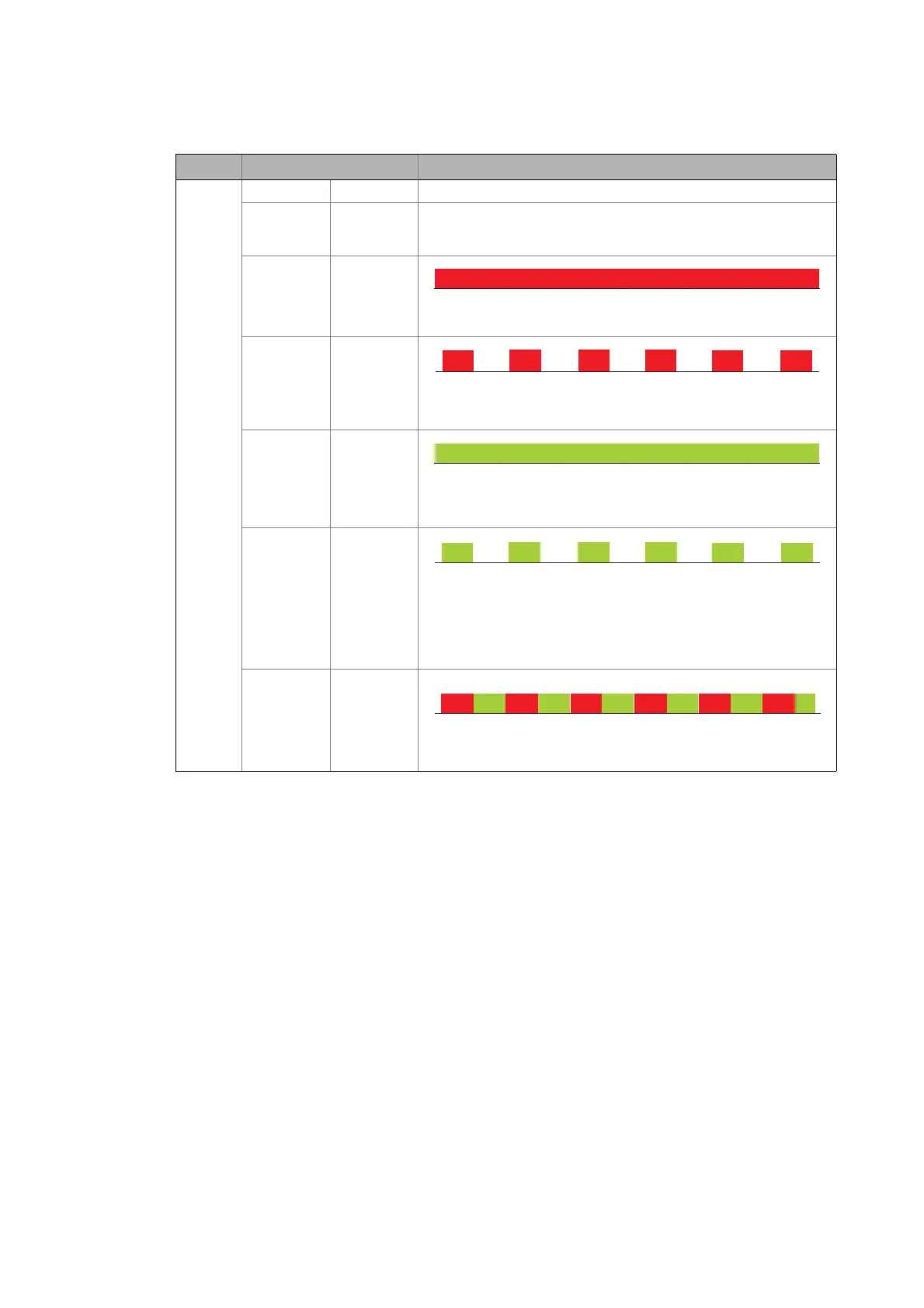

NS Green Red
Off Off CIP network status: "No IP Address"
The Communication Unit is not supplied with voltage or does not yet
have an IP address.
Off On
CIP network status: "Duplicate IP"
The Communication Unit cannot access the fieldbus (IP address conflict).
Off Blinking
CIP network status: "Connection Timeout"
A time-out is executed.
On Off
CIP network status: "Connected"
The Communication Unit is working correctly and has established a
connection to the scanner.
Blinking Off
CIP network status: "No Connections"
The Communication Unit ...
•is working correctly;
• has been assigned an IP address;
• has not been integrated into the network by the scanner yet.
Blinking Blinking
CIP network status: "Self-Test"
The Communication Unit performs a self-test.
