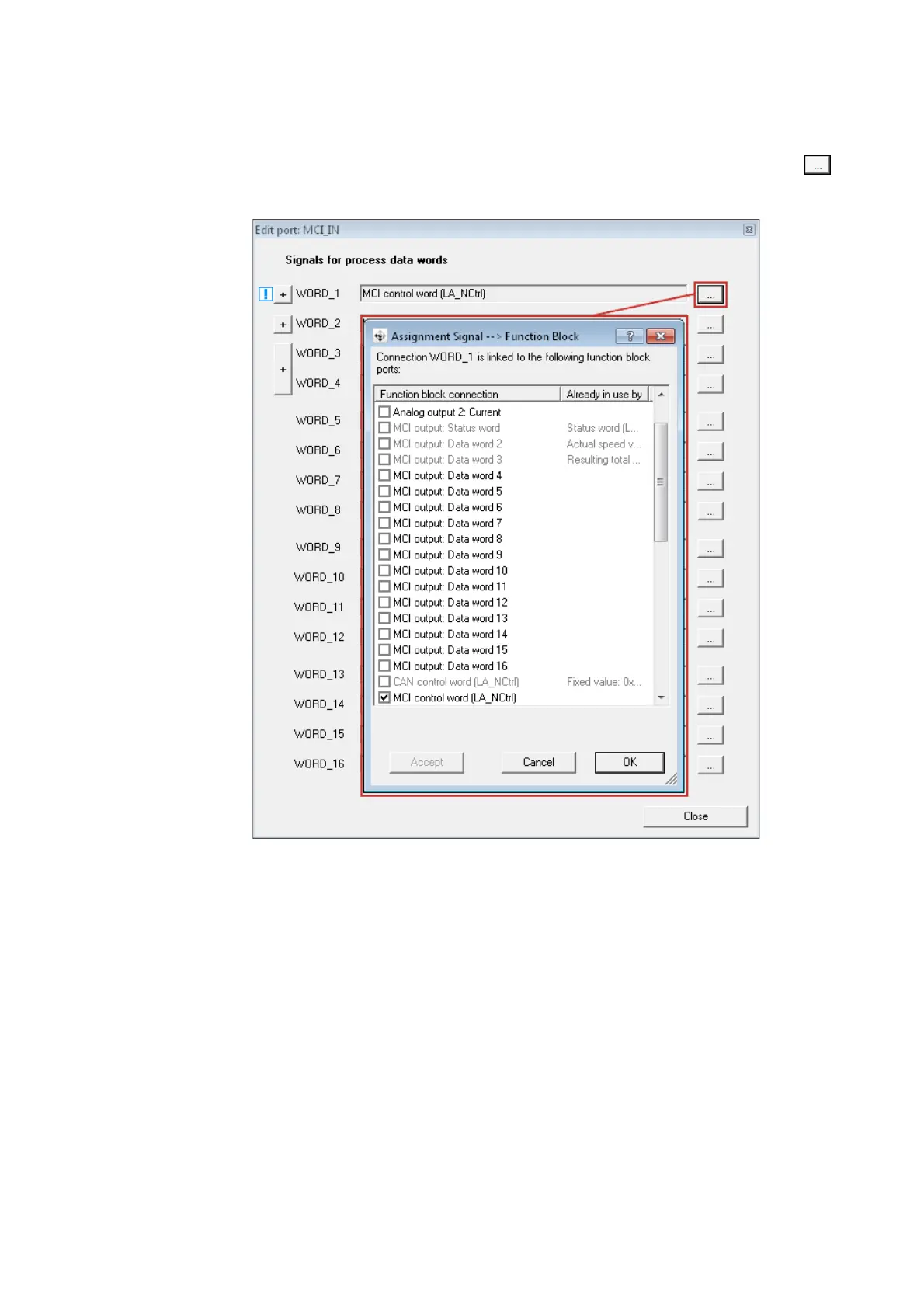

4. In the "Edit port" dialog window, you can assign signals to the I/O data words via the
button.
Select the signals and confirm the selection with OK.
