Diagnostics
LED status displays
8
EDK94AYCER DE/EN/FR/ES/IT 6.1
47

H1_Diagnose−status_LEDs_E94AYCER
Description
LED
Description
ConditionColourPos.
BE red
blinking Impermissible settings:
l Station name invalid
l IP parameter invalid
The communication module has been initialised and continues to
work internally with the respective standard values.
on Bus error/trouble is active (e.g. Ethernet cable has been
unplugged). The communication module is in the
NO_DATA_EXCHANGE state.
DE red on The communication module is not accepted by the standard
device or the standard device is not active. (See notes in the
documentation for the standard device.)

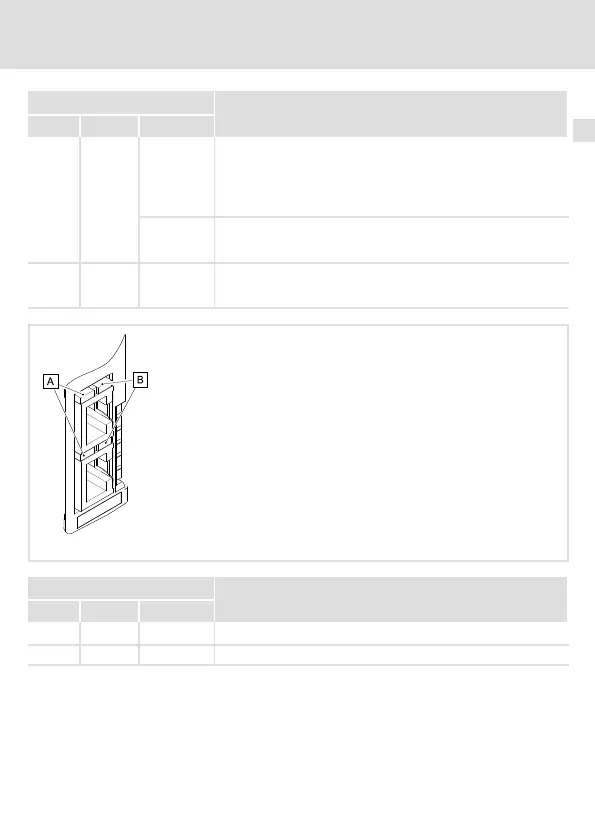

E94YCER001E
LED
Description
Pos. Colour Condition

green on PROFINET connection is available.

yellow on/blinking Data is exchanged via PROFINET.
