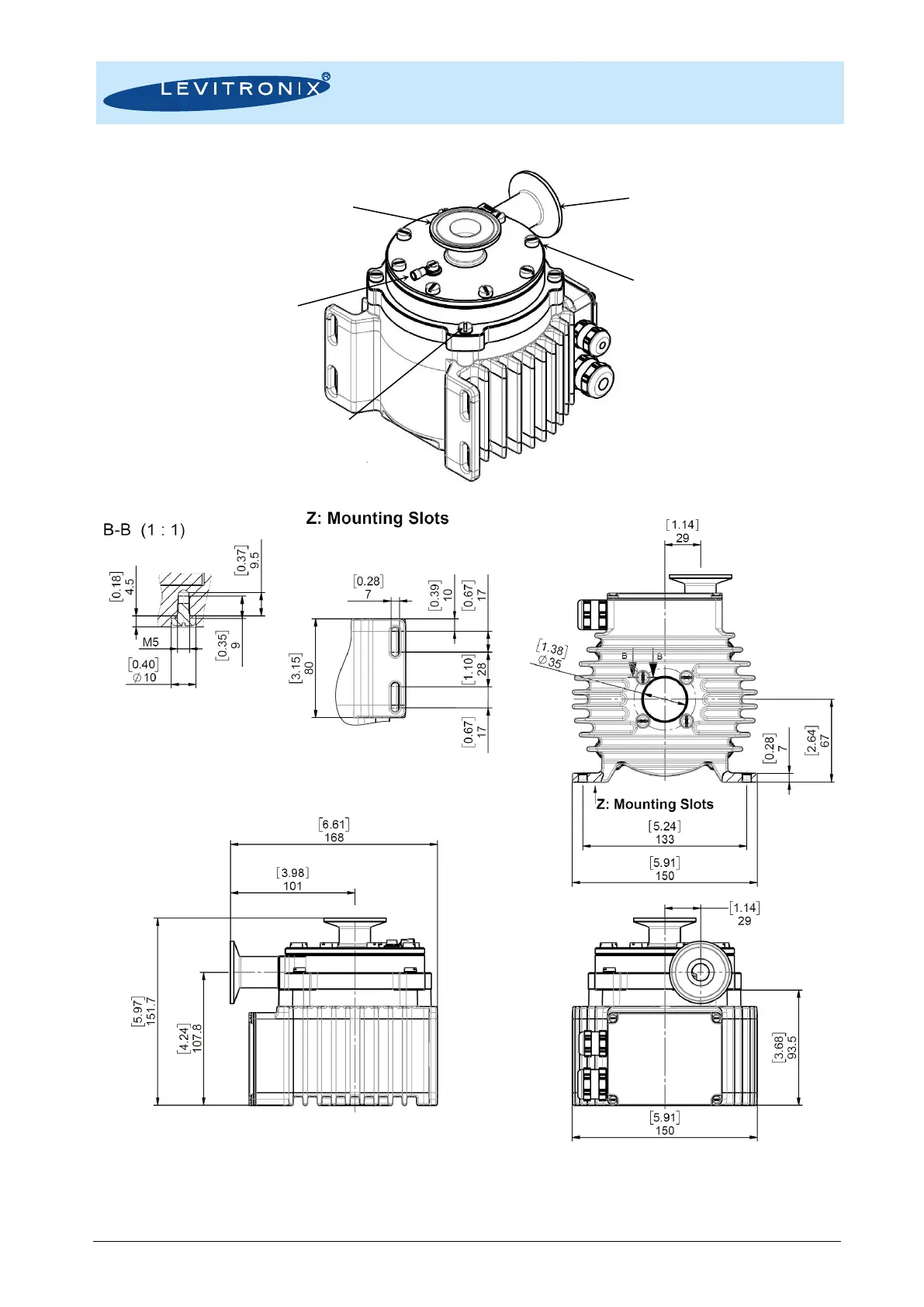

Figure 10: Basic dimensions (in mm and [inch]) of motor LPM-600.x with pump head LPP-600.27
Note 1: Non-tolerated dimensions are for reference only. Note2: For other configurations refer to relevant drawings.
8pcs M6x12 Screws (INOX A4)
4pcs M6x25 Screws (INOX A4) with washers
(For Pump head Motor Mounting)
(Max torque: 150 cNm)
Outlet

ID = Ø22.1 mm
(ASME)
Inlet

ID = Ø22.1 mm
(ASME)
Optional connection for ground cable
M5x6mm screw (INOX A4)
(Max. torque: 150 cNm)
