User Manual for PuraLev
®
600MU
www.levitronix.com
PL-4033-00, Rev09, DCO# 20-144
4.4 Mechanical Installation of the Controller
Hazardous voltage may be present.
In order to avoid fluid spills shorting mains or other voltages within the
controller, place the controller in a spill protected environment (for
example protected electronic cabinets).
If explosive flammable gases are present, place the controller in an
explosion-proof cabinet.
Make sure the controller is mounted in a position that allows free air
circulation around the controller. A minimum distance of 10cm
other objects above or below the controller casing is recommended.
• Use the DIN-rail bracket to mount the controller.
• If no forced air-cooling is used, mount the controller in upright position.
• The DIN-rail brackets can also be mounted on the controller side according to Figure 12
Use only 3.5 x 6.5 mm self-tapping screw for the fixation of the DIN-rail
brackets. The controller may be damaged if other type or too long screw
types are used!
4.5 Mechanical Installation of Adaptor/Extension Cables
For connecting the motor to the controller the adaptor cables MCAP-600.x (for power cable) and MCAS-600.x
(for sensor cable) are used (see Table 3 for adaptor cables). For the cables which use an M23 threaded
metallic Hummel connector type, check the connection according to the following pictures:

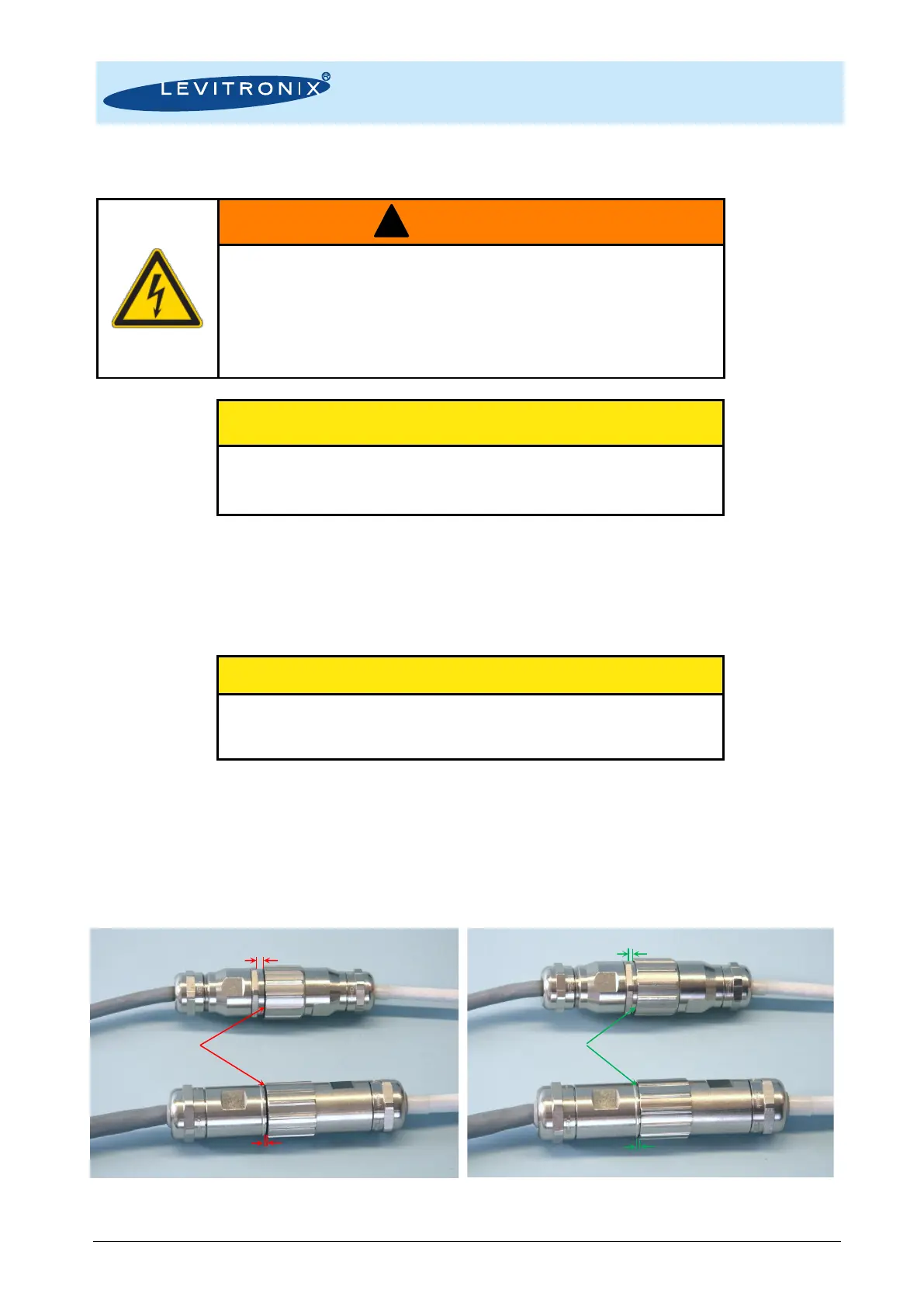

Figure 33: Wrong and correct Hummel connector type assembly
