3 Engineering Information
3.1 Sealing and Material Concept

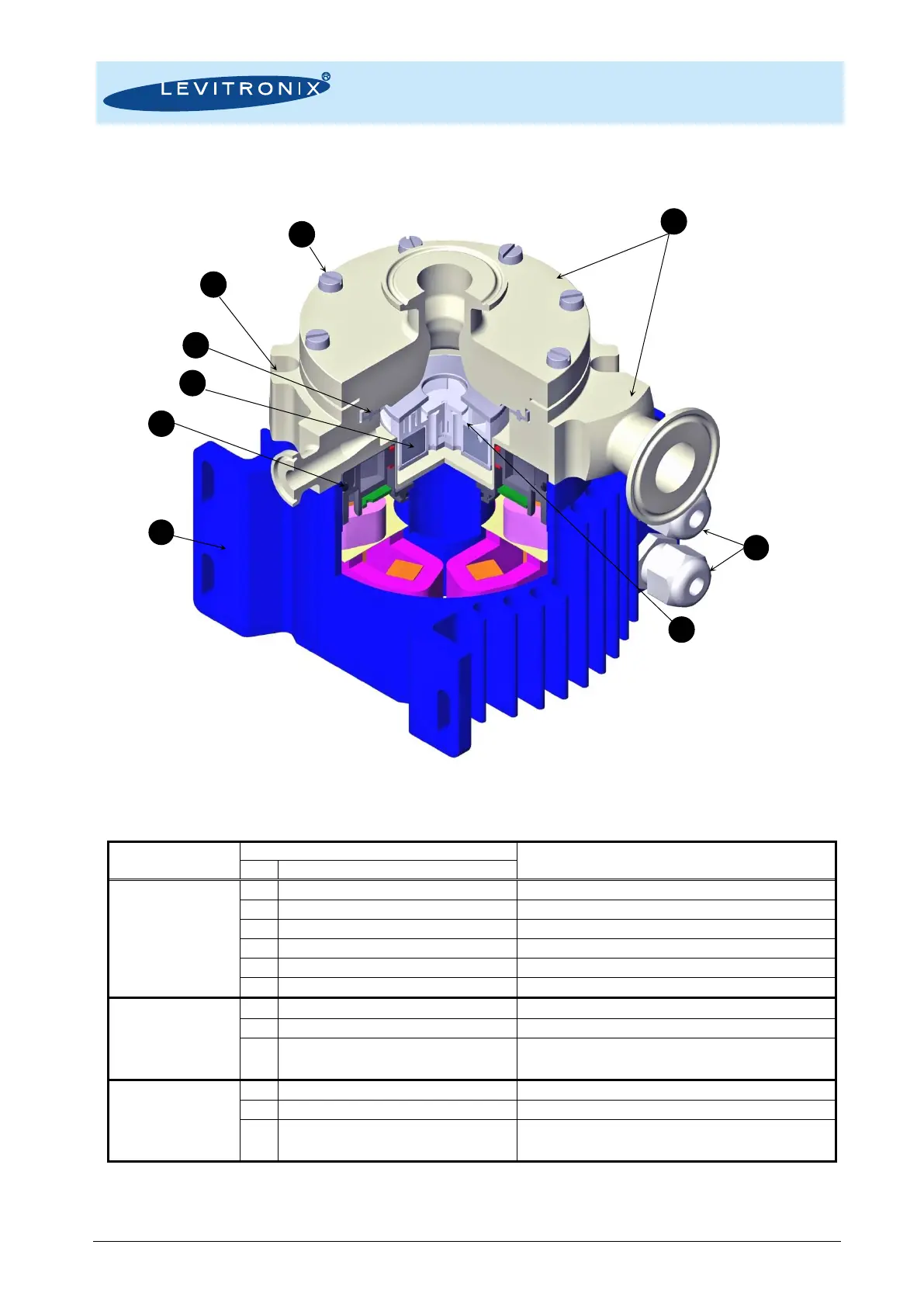

Figure 13: Sealing and material concept
(Motor LPM-600.x with pump head LPP-600.7)
System
Component
Item
Materials
No
Description
Pump Heads
LPP-600.7/18 (PVDF)
LPP-600.27 (SS)
1
Pump housing (lid and bottom)
LPP-600.7/18: PVDF LPP-600.27: Stainless Steel
2
Static sealing ring of pump casing
LPP-600.7/18: EPDM Triclamp / LPP-600.27: EPDM O-ring
3
8x M6x25mm screws for pump casing
Stainless Steel (INOX A4)
4
Impeller LPI-600
LPP-600.7/18: PFA LPP-600.27: Stainless Steel
5
Rotor magnet
Rare-earth material
6
4 M6x25mm screws for pump/motor mounting
Stainless Steel (INOX A4)
Motors
LPM-600.5
LPM-600.13
7a
Sealing O-ring for motor housing
FPM (= FKM)
8a
Cable bushing
PVDF, cable jacket is PVC
9a
Motor housing (blue)
Epoxy coating, waterproof (IP-67)
Coils and electromagnetic circuit potted with an epoxy
compound (UL94 V0).
Motors
LPM-600.4
LPM-600.12
7b
Sealing O-ring for motor housing
FPM (= FKM)
8b
Cable bushing
FPM, cable jacket is FEP
9b
Motor housing (grey)
ETFE coating, waterproof (IP-67)
Coils and electromagnetic circuit potted with an epoxy
compound (UL94 V0).
Table 7: Materials used in the LPM-600.x motors and LPP-600.7/18/27 pump heads
(For other configurations refer to relevant specifications and drawings.)
1
3
2
4
5
6
8
9
7
