Levitronix PuraLev 600MU User Manual

User Manual for PuraLev
®
600MU
www.levitronix.com
PL-4033-00, Rev09, DCO# 20-144
27
2) Motors used with cooling module ACM-600.3
• Mount the cooling module ACM-600.3 to the motor according to Figure 32.
• Remove one of the four M5 screws on the mounted cooling module.
• Use a crimp cable lug to connect the earth wire.
• Attach the crimp cable lug with a M5 x 30 mm stainless steel screw, a washer disc and a spring lock
washer to the motor through the cooling module Figure 32.

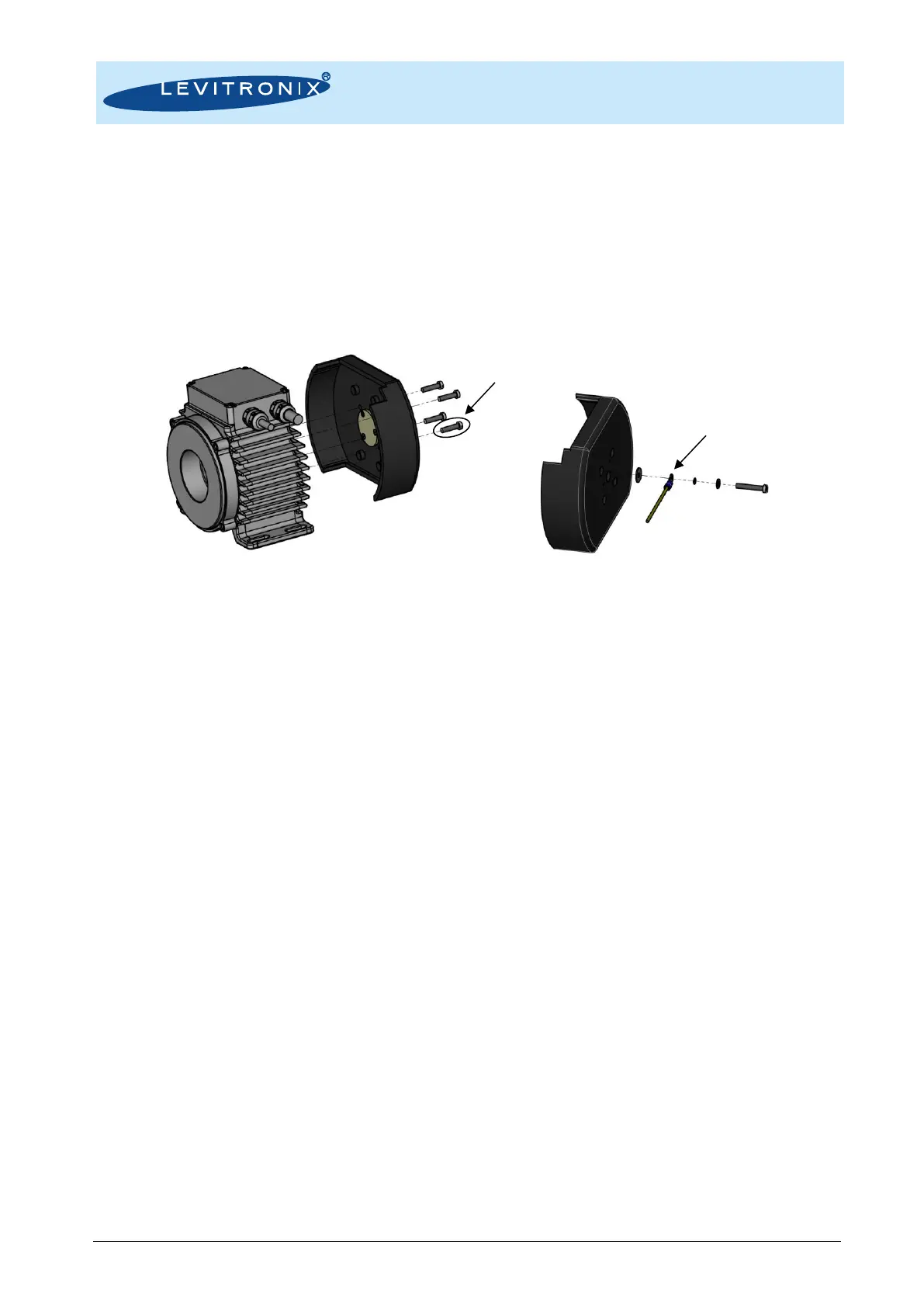

Figure 32: Attachment of a protective earth wire to the backside of the motor through ACM-600.3
One screw to be
removed
Parts for earth wire
attachment
