28

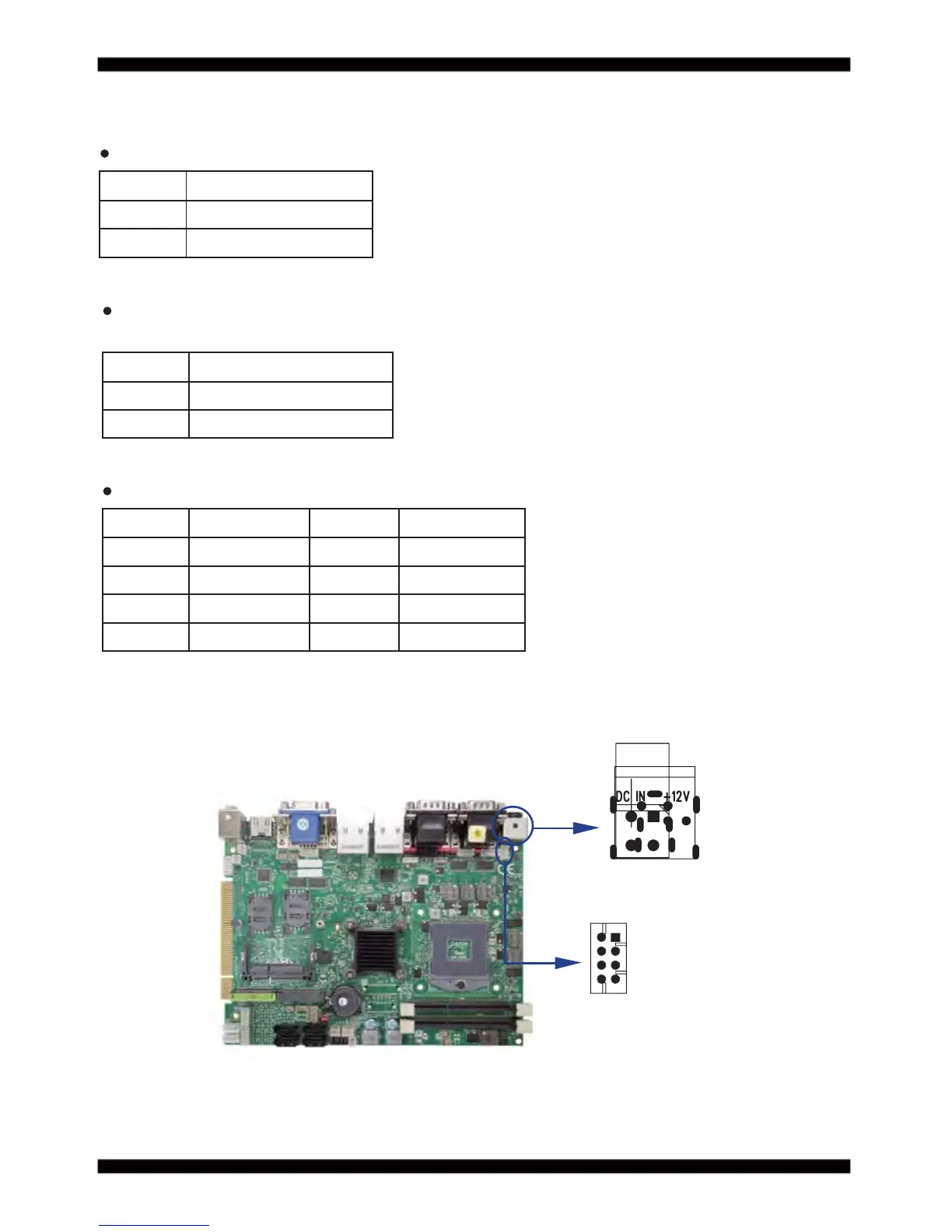

3-2 DC 12V-IN external Connector
Note: DC in from adapter plug in
Note: This connector share with CPI1 for OEM
Note: DC in from adapter plug in
The location share with CPI1
CPI1: DC 12V-IN external Connector (4pin mini din connector)
CPI11: DC 12V-IN Internal Connector (2x2pin 4.2mm ATX connector)
CPI13: DC 12V-IN Internal Connector (4pin 2.0mm wafer)
PIN NO. Description
1,2 +12V DC-IN
3,4 GND
PIN NO. Description
3,4 +12V DC-IN
1,2 GND
PIN NO. Description PIN NO. Description
1 +12V DC-IN 2 +12V DC-IN
3 +12V DC-IN 4 +12V DC-IN
5 NC 6 GND
7 GND 8 GND
CPI11
CPI1
CPI13
pin1
8
