Lex Computech CI770C - Page 35

29

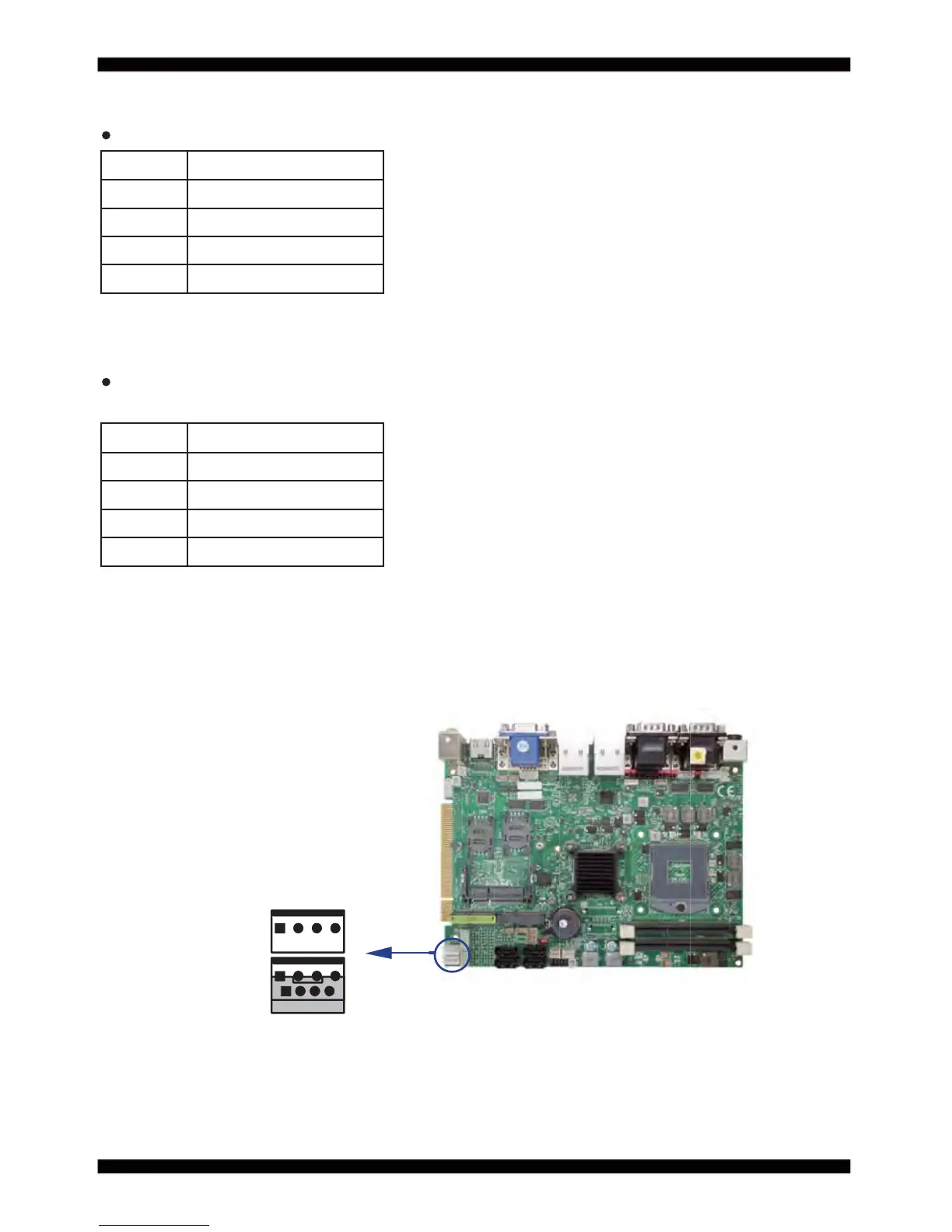

3-3 DC +5/+12V Voltage output connector
*Note: DC in +12V by switch to DC-out voltage +12V,
so DC in need stable +12V input
*Note: 1. DC in +12V by switch to DC-out voltage +12V,
so DC in need stable +12V input
2. CPO3 connector share with CPO2 connector .
The location share with CPO2
CPO1/CPO2: +12V/+5V DC voltage output (4pin 2.54mm Wafer)
CPO3: +12V/+5V DC voltage output (4pin 2.0mm Wafer)
PIN NO. Description
1 +5V
2 GND
3 GND
4 +12V*
PIN NO. Description
1 +5V
2 GND
3 GND
4 +12V*
CPO1
CPO2
CPO3
pin1
pin1
pin1
