31

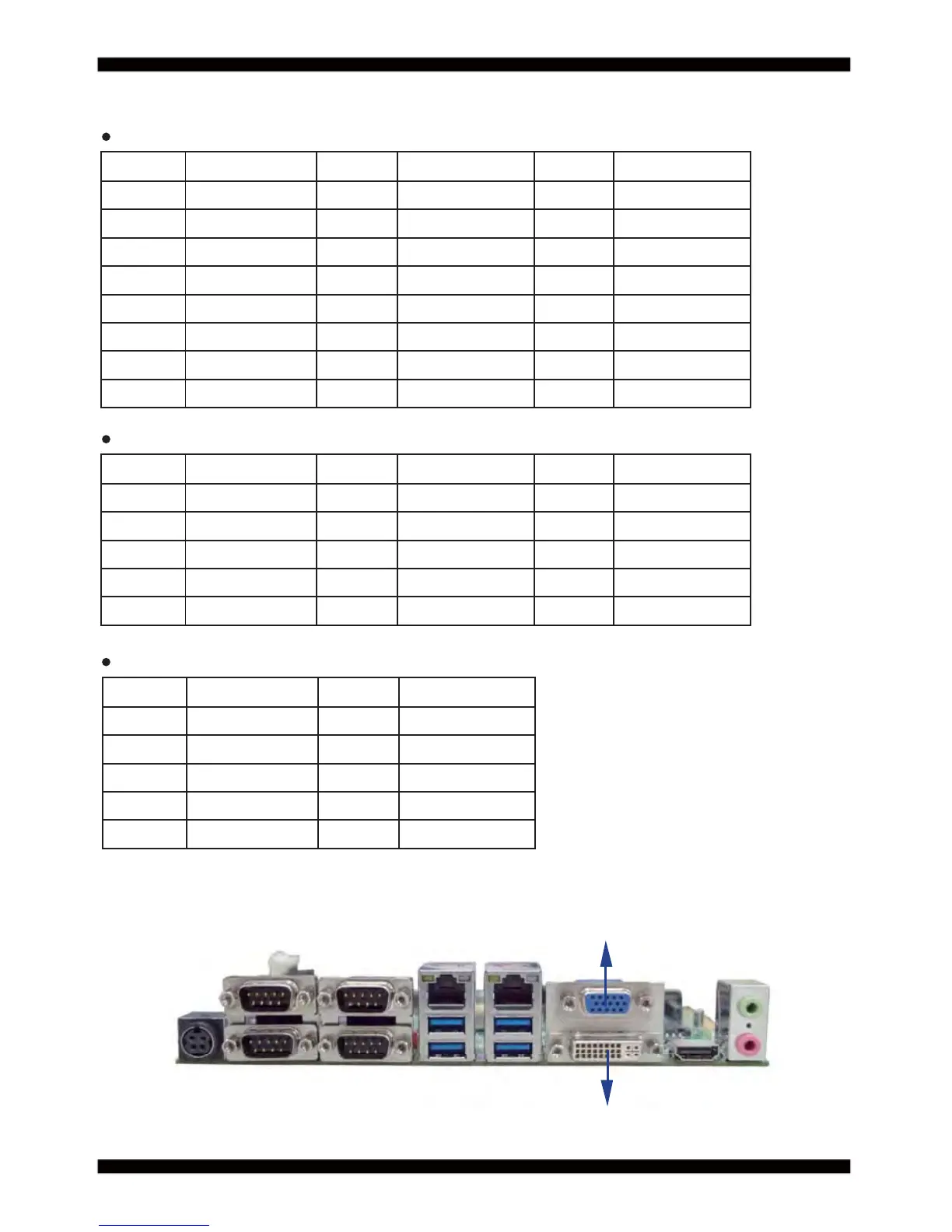

3-6 DVI-D / VGA
CDG1: DVI 12bit connector down side (DB Connector)
CDG1: VGA DB15 Connector Up side (D-SUB 15PIN)
CG11: VGA 2x5pin 2.0mm wafer connector
2
2
PIN NO. Description PIN NO. Description PIN NO. Description
1 Data 2- 9 Data 1- 17 Data 0-
2 Data 2+ 10 Data 1+ 18 Data 0+
3 GND 11 GND 19 GND
4NC 12NC 20NC
5NC 13NC 21NC
6 I C-CLK 14 +5V 22 GND
7 I C-DATA 15 GND 23 CLK+
8 NC 16 DVI-DETECT 24 CLK-
PIN NO. Description PIN NO. Description PIN NO. Description
1 RED 6 GND 11 NC
2 GREEN 7 GND 12 DDC DATA
3 BLUE 8 GND 13 H-SYNC
4 NC 9 NC 14 V-SYNC
5 GND 10 GND 15 DDC CLOCK
PIN NO. Description PIN NO. Description
1 BLUE 2 GND
3 GND 4 DDC CLOCK
5 GREEN 6 V-SYNC
7 GND 8 H-SYNC
9 RED 10 DDC DATA
VGA
DVI-D
*Note: VGA signal CG11 share with CDG1 VGA
